Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2012-05-17 22:16:18.3 |
| Date & Time (Local) | 1391/2/29 02:46:18.3 |

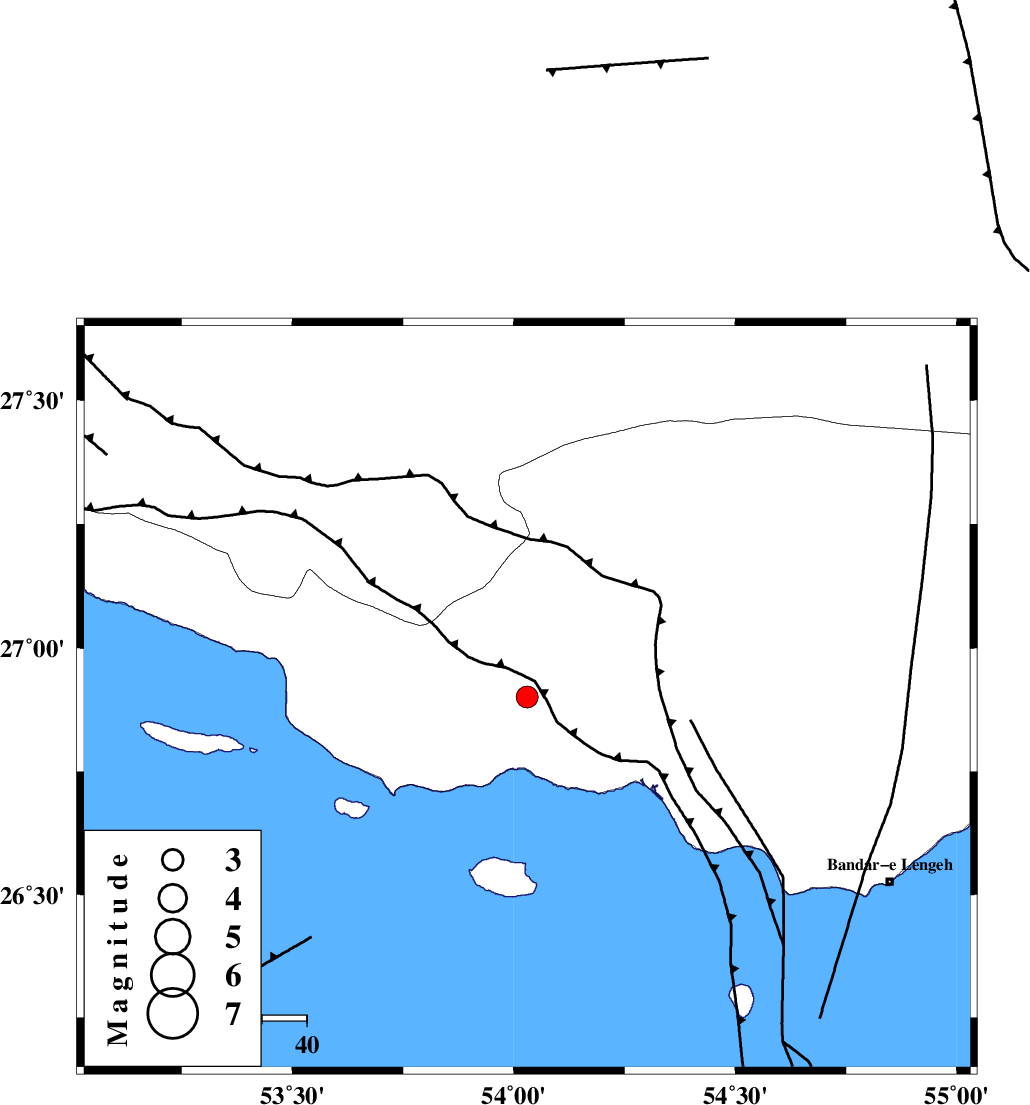

| Location | Lat:26.9 Lon: 54.03 |
| Region | Hormozgan Province, 47 km South-West of Bastak |
Nearest Cities |
|
| 28 km South West of Jenah, Hormozgan Province | |
| 42 km South East of Ahl, Fars Province | |
| 47 km South West of Bastak, Hormozgan Province | |
| 55 km South East of Ashkenan, Fars Province | |
| 66 km South of Bagh, Fars Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| MFF3 (Length: 292 km) , Distance to epicenter: 3 km | |
| ZFF1 (Length: 165 km) , Distance to epicenter: 16 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 20 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >6.5 km |
| Error in Longitude | 2.7 km |
| Error in Depth | 5.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 83634 | IIEES | GHIR | E | 231.9 | 0.48 | 2012-05-17 22:17:15 | 2012-05-17 10:27:00 | n |
| 83635 | IIEES | GHIR | N | 254.8 | 0.48 | 2012-05-17 22:17:19 | 2012-05-17 10:27:00 | n |
| 83636 | IIEES | BNDS | N | 129.1 | 0.64 | 2012-05-17 22:17:32 | 2012-05-17 10:27:00 | n |
| 83637 | IIEES | BNDS | E | 119.4 | 0.44 | 2012-05-17 22:17:39 | 2012-05-17 10:27:00 | n |
| 83638 | IIEES | KRBR | N | 25.1 | 0.44 | 2012-05-17 22:18:30 | 2012-05-17 10:27:00 | n |
| 83639 | IIEES | KRBR | E | 29.2 | 0.44 | 2012-05-17 22:18:31 | 2012-05-17 10:27:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHIR | Z | Pg | E | 2012-05-17 22:16:48 | -0.07 | y | 185 | 326 | |||
| IIEES | GHIR | E | Sg | E | 2012-05-17 22:17:11 | 0.09 | y | 185 | 326 | |||
| IIEES | BNDS | Z | Pn | E | 2012-05-17 22:16:53 | 0.13 | y | 219 | 75 | |||
| IIEES | BNDS | N | Sg | E | 2012-05-17 22:17:20 | 0.01 | y | 219 | 75 | |||
| IIEES | KRBR | Z | Pn | E | 2012-05-17 22:17:19 | -0.21 | y | 434 | 37 | |||
