Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2012-05-27 22:03:35.0 |
| Date & Time (Local) | 1391/3/8 02:33:35.0 |

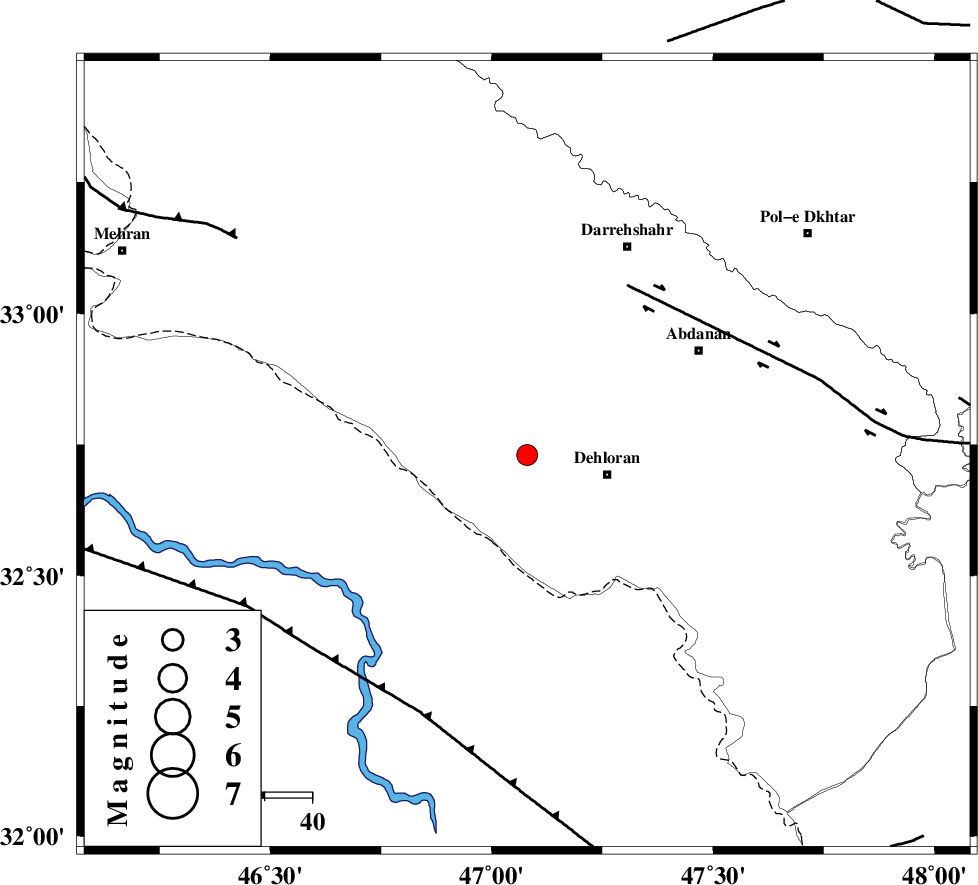

| Location | Lat:32.73 Lon: 47.08 |
| Region | Ilam Province, 17 km West of Dehloran |
Nearest Cities |
|
| 14 km East of Bishehzar, Ilam Province | |
| 17 km North West of Dehloran, Ilam Province | |
| 33 km North West of Musian, Ilam Province | |
| 43 km South West of Abdanan, Ilam Province | |
| 49 km South West of Darreh Shahr, Ilam Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 8 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 42 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 77 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >3.1 km |
| Error in Longitude | 6.4 km |
| Error in Depth | 4.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 83786 | IIEES | SHGR | E | 289 | 0.56 | 2012-05-27 22:04:26 | 2012-05-28 02:54:00 | n |
| 83787 | IIEES | SHGR | N | 285.9 | 0.36 | 2012-05-27 22:04:28 | 2012-05-28 02:54:00 | n |
| 83788 | IIEES | ASAO | E | 12.7 | 0.6 | 2012-05-27 22:05:22 | 2012-05-28 02:54:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2012-05-27 22:04:04 | 0.13 | y | 176 | 112 | |||
| IIEES | SHGR | E | Sg | E | 2012-05-27 22:04:24 | -0.11 | y | 176 | 112 | |||
| IIEES | SNGE | Z | Pn | E | 2012-05-27 22:04:15 | -0.09 | y | 264 | 5 | |||
| IIEES | SNGE | E | Sg | E | 2012-05-27 22:04:49 | -0.01 | y | 264 | 5 | |||
| IIEES | ASAO | Z | Pn | E | 2012-05-27 22:04:24 | 0.09 | y | 340 | 53 | |||
