Event Specification
Magnitude |
3.8 |
| Date & Time (UTC) | 2012-05-31 04:06:37.9 |
| Date & Time (Local) | 1391/3/11 08:36:37.9 |
| Location | Lat:31.82 Lon: 51.12 |
| Region | Chaharmahal Bakhtiari Province, 22 km South-West of Borujen |
Nearest Cities |
|
| 6 km of Gandoman, Chaharmahal Bakhtiari Province | |
| 14 km South of Baladaji, Chaharmahal Bakhtiari Province | |
| 21 km South of Faradonbeh, Chaharmahal Bakhtiari Province | |
| 23 km South West of Borujen, Chaharmahal Bakhtiari Province | |
| 31 km North of Aluni, Chaharmahal Bakhtiari Province | |
| Depth | 14 km |
| Agency | |

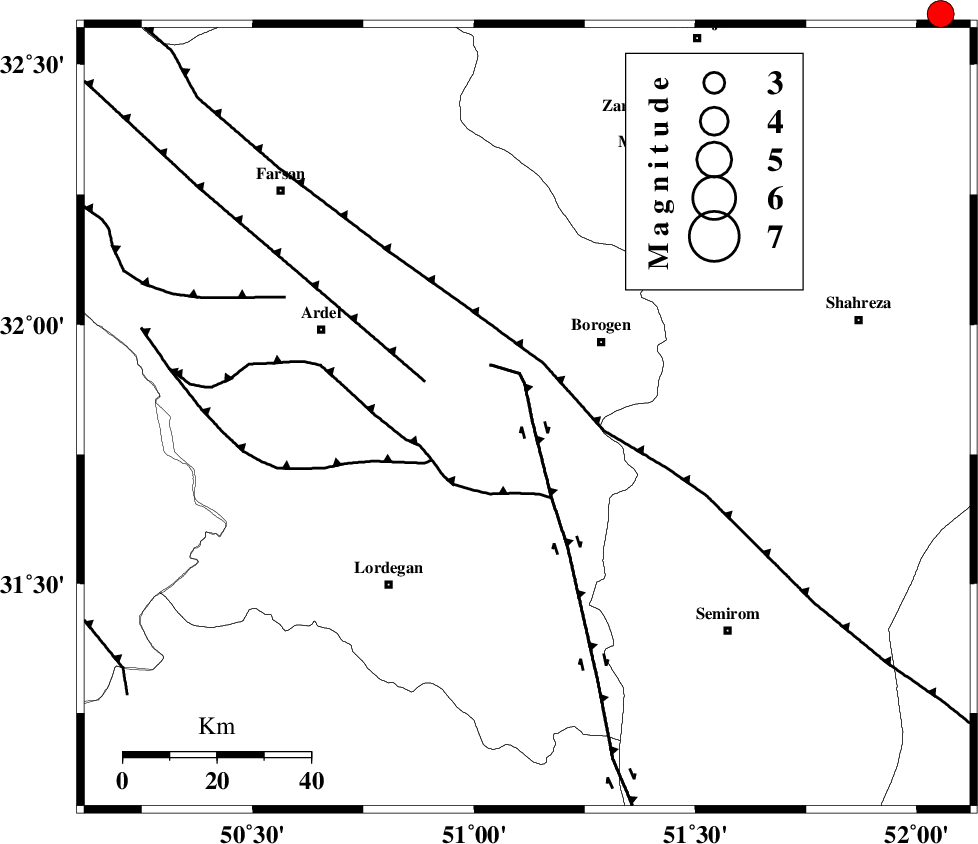

Faults within 150 km: |
|
| DENA_F (Length: 137 km) , Distance to epicenter: 2 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 12 km | |
| DOPOLAN_F (Length: 107 km) , Distance to epicenter: 16 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | >4.1 km |
| Error in Longitude | 3.7 km |
| Error in Depth | 9.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 83827 | IIEES | SHGR | E | 755.6 | 0.48 | 2012-05-31 04:07:52 | 2012-05-31 04:32:00 | n |
| 83828 | IIEES | SHGR | N | 1215.9 | 0.6 | 2012-05-31 04:07:53 | 2012-05-31 04:32:00 | n |
| 83829 | IIEES | KHMZ | N | 496.7 | 0.48 | 2012-05-31 04:07:53 | 2012-05-31 04:32:00 | n |
| 83830 | IIEES | KHMZ | E | 505 | 0.56 | 2012-05-31 04:07:55 | 2012-05-31 04:32:00 | n |
| 83831 | IIEES | ASAO | E | 172.6 | 0.52 | 2012-05-31 04:08:19 | 2012-05-31 04:32:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | NASN | Z | Pn | E | 2012-05-31 04:07:09 | -0.39 | y | 192 | 55 | |||
| IIEES | SHGR | Z | Pn | E | 2012-05-31 04:07:12 | -0.1 | y | 222 | 279 | |||
| IIEES | SHGR | N | Sg | E | 2012-05-31 04:07:40 | -0.02 | y | 222 | 279 | |||
| IIEES | KHMZ | Z | Pn | E | 2012-05-31 04:07:15 | 0.3 | y | 239 | 333 | |||
| IIEES | KHMZ | E | Sg | E | 2012-05-31 04:07:45 | -0.18 | y | 239 | 333 | |||
| IIEES | ASAO | E | Pn | E | 2012-05-31 04:07:25 | 0.23 | y | 319 | 342 | |||
| IIEES | DAMV | Z | Pn | E | 2012-05-31 04:07:39 | 0.26 | y | 430 | 10 | |||
| IIEES | TABS | N | Pn | E | 2012-05-31 04:07:59 | 0.01 | y | 597 | 69 | |||
