Event Specification
Magnitude |
3.4 |
| Date & Time (UTC) | 2012-06-04 08:34:49.7 |
| Date & Time (Local) | 1391/3/15 13:04:49.7 |
| Location | Lat:26.98 Lon: 53.98 |
| Region | Hormozgan Province, 45 km South-West of Bastak |
Nearest Cities |
|
| 30 km West of Jenah, Hormozgan Province | |
| 32 km South East of Ahl, Fars Province | |
| 45 km South West of Bastak, Hormozgan Province | |
| 45 km South East of Ashkenan, Fars Province | |
| 58 km South of Bagh, Fars Province | |
| Depth | 45 km |
| Agency | |

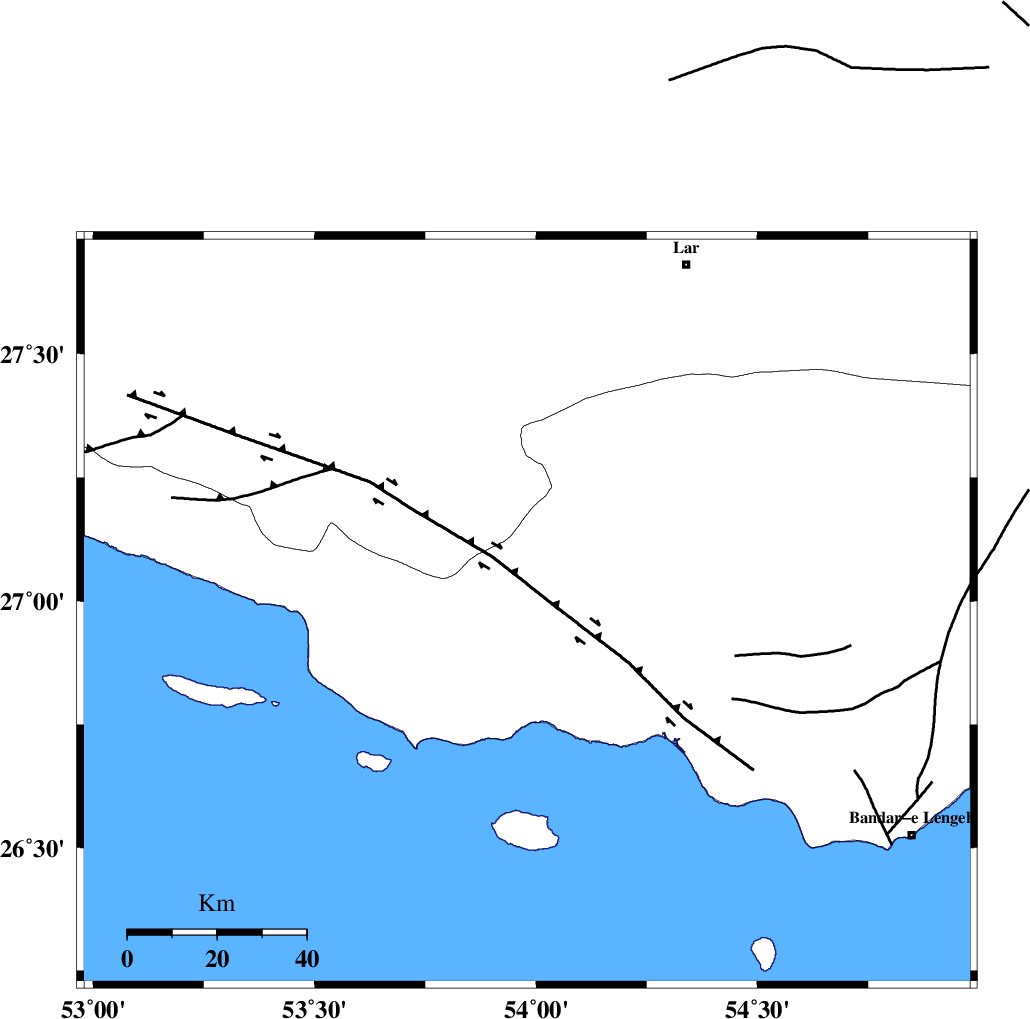

Faults within 150 km: |
|
| MFF3 (Length: 292 km) , Distance to epicenter: 7 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 13 km | |
| ZFF1 (Length: 165 km) , Distance to epicenter: 25 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >7.3 km |
| Error in Longitude | 2.9 km |
| Error in Depth | 4.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 83877 | IIEES | GHIR | E | 954.5 | 0.68 | 2012-06-04 08:35:45 | 2012-06-04 08:54:00 | n |
| 83878 | IIEES | GHIR | N | 1159.1 | 0.52 | 2012-06-04 08:35:54 | 2012-06-04 08:54:00 | n |
| 83879 | IIEES | BNDS | E | 182 | 0.48 | 2012-06-04 08:36:07 | 2012-06-04 08:54:00 | n |
| 83880 | IIEES | BNDS | N | 190.6 | 0.52 | 2012-06-04 08:36:33 | 2012-06-04 08:54:00 | n |
| 83881 | IIEES | KRBR | N | 33.2 | 0.52 | 2012-06-04 08:36:58 | 2012-06-04 08:54:00 | n |
| 83882 | IIEES | KRBR | E | 33.9 | 0.68 | 2012-06-04 08:37:09 | 2012-06-04 08:54:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHIR | Z | Pg | E | 2012-06-04 08:35:18 | 0.28 | y | 175 | 326 | |||
| IIEES | GHIR | E | Sg | E | 2012-06-04 08:35:39 | 0.05 | y | 175 | 326 | |||
| IIEES | BNDS | Z | Pn | E | 2012-06-04 08:35:22 | 0 | y | 222 | 77 | |||
| IIEES | BNDS | E | Sg | E | 2012-06-04 08:35:51 | -0.1 | y | 222 | 77 | |||
| IIEES | AHRM | N | Sg | E | 2012-06-04 08:36:21 | -0.28 | y | 337 | 309 | |||
| IIEES | KRBR | Z | Pn | E | 2012-06-04 08:35:48 | 0.09 | y | 430 | 39 | |||
| IIEES | NASN | Z | Pn | E | 2012-06-04 08:36:16 | -0.1 | y | 655 | 350 | |||
