Magnitude
 2.9
Date & Time (UTC) 2012-07-23 10:43:34.3
Date & Time (Local) 1391/5/2  15:13:34.3

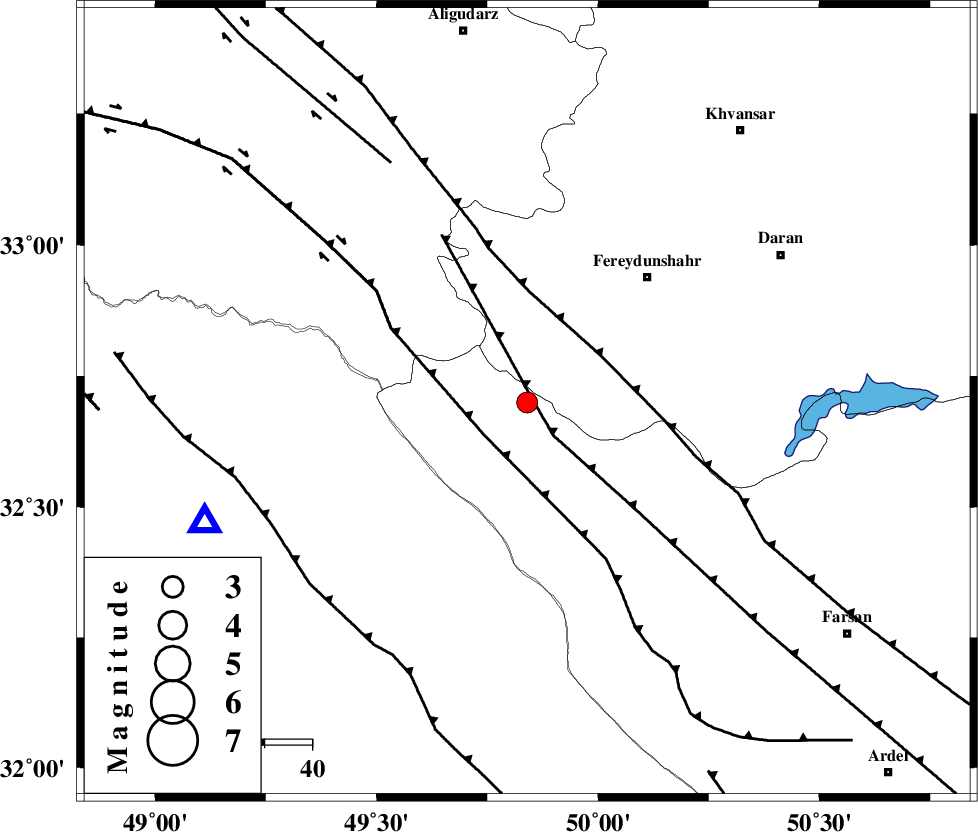

Location Lat:32.7 Lon: 49.84
Region Chaharmahal Bakhtiari Province, 36 km South-West of Fereydunshahr
Nearest Cities
2 km North of Durak, Chaharmahal Bakhtiari Province
16 km South of Masir, Esfahan Province
29 km South West of Sibak, Esfahan Province
36 km West of Ghale? sorkh, Esfahan Province
37 km South West of Fereydunshahr, Esfahan Province
Depth 18 km
Agency
Faults within 150 km:
ARDAL_F (Length: 170 km) , Distance to epicenter: 2 km
ZARDKUH_F (Length: 139 km) , Distance to epicenter: 11 km
MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 18 km
Number of Phases 8
RMS 0.2
Number of Stations 7
Error in Latitude >1.9 km
Error in Longitude 5 km
Error in Depth 6.5 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
84554IIEESSHGRN 353.20.552012-07-23 10:44:192012-07-23 11:06:00n
84555IIEESASAOE 92.80.62012-07-23 10:44:432012-07-23 11:06:00n
84556IIEESGHVRN 73.80.442012-07-23 10:44:502012-07-23 11:06:00n
84557IIEESGHVRE 74.10.742012-07-23 10:44:522012-07-23 11:06:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEESSHGRZ Pg E2012-07-23 10:43:540.1y118236
IIEESASAOZ Pn E2012-07-23 10:44:07-0.22y2065
IIEESASAOE Sg E2012-07-23 10:44:32-0.1y2065
IIEESGHVRZ Pn E2012-07-23 10:44:110.26y23633
IIEESNASNZ Pn E2012-07-23 10:44:160.08y27887
IIEESCHTHZ Pn E2012-07-23 10:44:280.07y37518
IIEESGHIRZ P E2012-07-23 10:44:52-0.4y575148
IIEESSHROZ Pn E2012-07-23 10:45:050.12y67655
