Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2012-07-28 06:09:54.6 |
| Date & Time (Local) | 1391/5/7 10:39:54.6 |

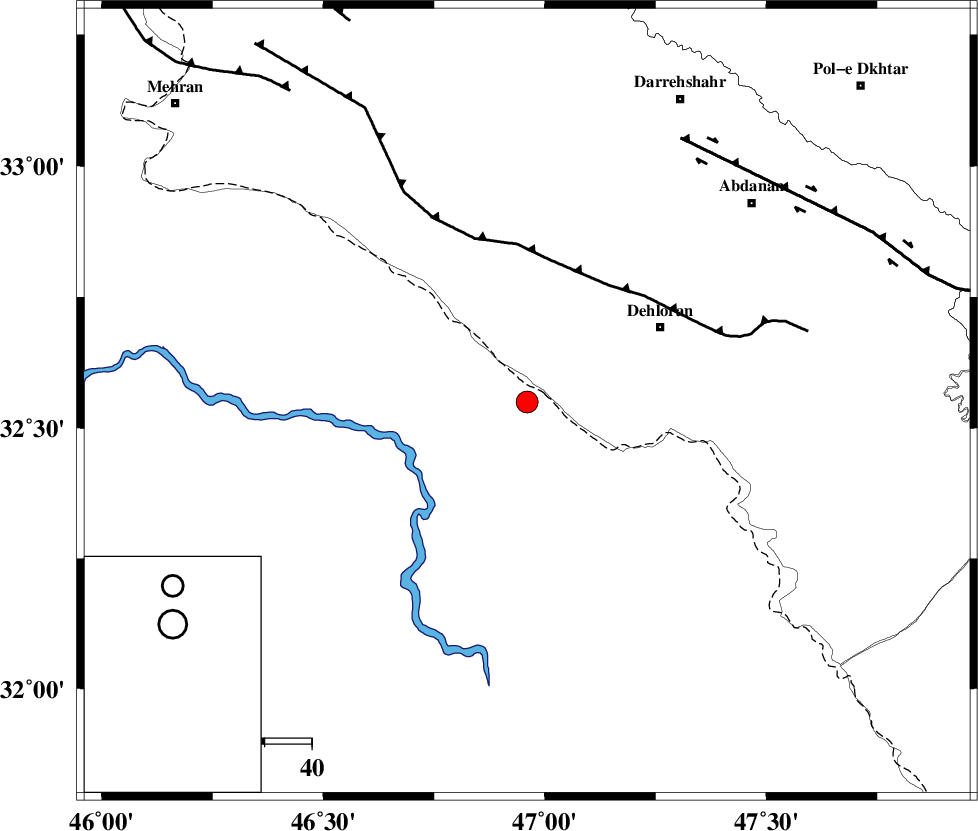

| Location | Lat:32.55 Lon: 46.96 |
| Region | Iraq, 32 km South-West of Dehloran |
Nearest Cities |
|
| 31 km South of Bishehzar, Ilam Province | |
| 32 km South West of Dehloran, Ilam Province | |
| 37 km North West of Musian, Ilam Province | |
| 64 km South West of Abdanan, Ilam Province | |
| 69 km South West of Sarabbagh, Ilam Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 30 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 65 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 83 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 4 |
| Error in Latitude | >3.5 km |
| Error in Longitude | 6.9 km |
| Error in Depth | 8.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 84620 | IIEES | SHGR | N | 203.7 | 0.44 | 2012-07-28 06:10:49 | 2012-07-28 06:29:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2012-07-28 06:10:24 | -0.09 | y | 180 | 105 | |||
| IIEES | SHGR | E | Sg | E | 2012-07-28 06:10:45 | 0.07 | y | 180 | 105 | |||
| IIEES | KHMZ | Z | Pn | E | 2012-07-28 06:10:40 | -0.2 | y | 309 | 64 | |||
| IIEES | KHMZ | E | Sg | E | 2012-07-28 06:11:21 | -0.03 | y | 309 | 64 | |||
| IIEES | ASAO | Z | Pn | E | 2012-07-28 06:10:47 | -0.05 | y | 360 | 51 | |||
| IIEES | GHVR | Z | Pn | E | 2012-07-28 06:10:58 | 0.37 | y | 452 | 61 | |||
