Event Specification
Magnitude |
4 |
| Date & Time (UTC) | 2012-08-11 12:44:38.6 |
| Date & Time (Local) | 1391/5/21 17:14:38.6 |

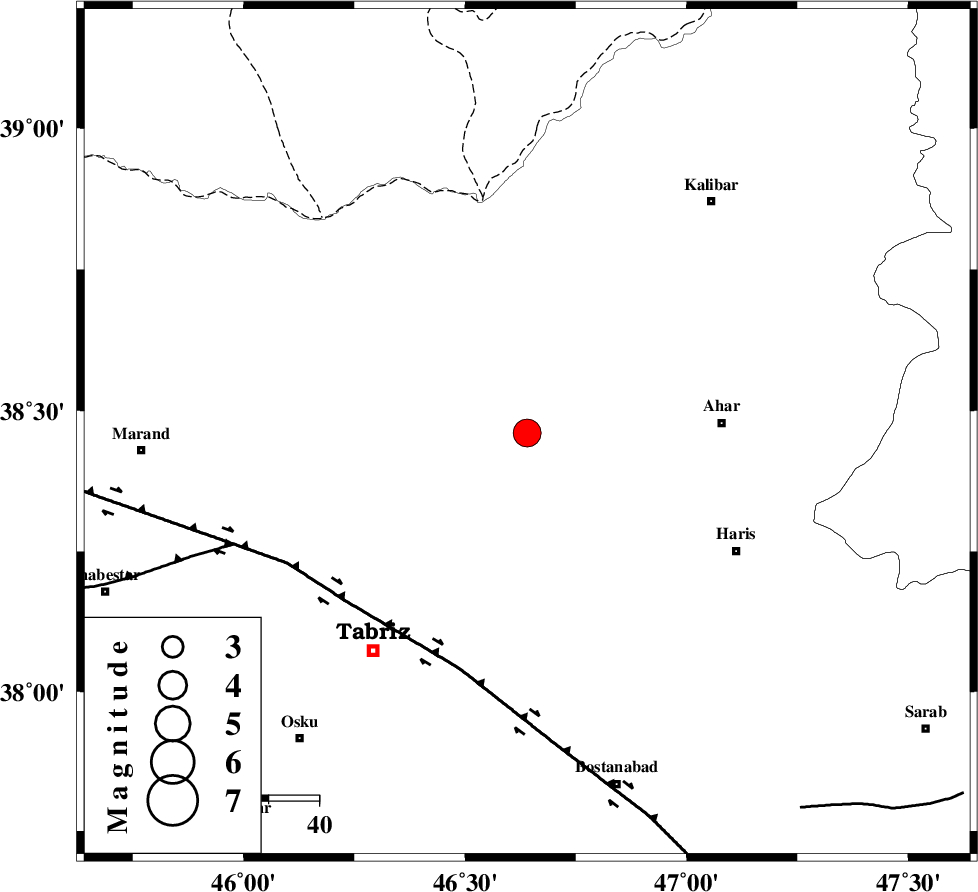

| Location | Lat:38.46 Lon: 46.64 |
| Region | Azarbaijan Sharghi Province, 38 km West of Ahar |
Nearest Cities |
|
| 3 km of Varzagan, Azarbaijan Sharghi Province | |
| 13 km South of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 18 km North of Sarand, Azarbaijan Sharghi Province | |
| 20 km South West of Tokhmdel, Azarbaijan Sharghi Province | |
| 22 km South West of Bekrabad, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 48 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 62 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 92 km | |
| Number of Phases | 4 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >12.6 km |
| Error in Longitude | 3.6 km |
| Error in Depth | 19.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 84924 | IIEES | GRMI | E | 3624.2 | 0.32 | 2012-08-11 12:45:12 | 2012-08-11 01:19:00 | n |
| 84925 | IIEES | GRMI | N | 4202.8 | 0.2 | 2012-08-11 12:45:13 | 2012-08-11 01:19:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-08-11 12:44:58 | 0.01 | y | 116 | 70 | |||
| IIEES | MAKU | Z | Pg | E | 2012-08-11 12:45:10 | -0.1 | y | 197 | 301 | |||
| IIEES | MAKU | E | Sg | E | 2012-08-11 12:45:34 | 0.07 | y | 197 | 301 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-08-11 12:45:19 | 0.02 | y | 268 | 137 | |||
