Event Specification
Magnitude |
4.7 |
| Date & Time (UTC) | 2012-08-11 12:49:07.6 |
| Date & Time (Local) | 1391/5/21 17:19:07.6 |

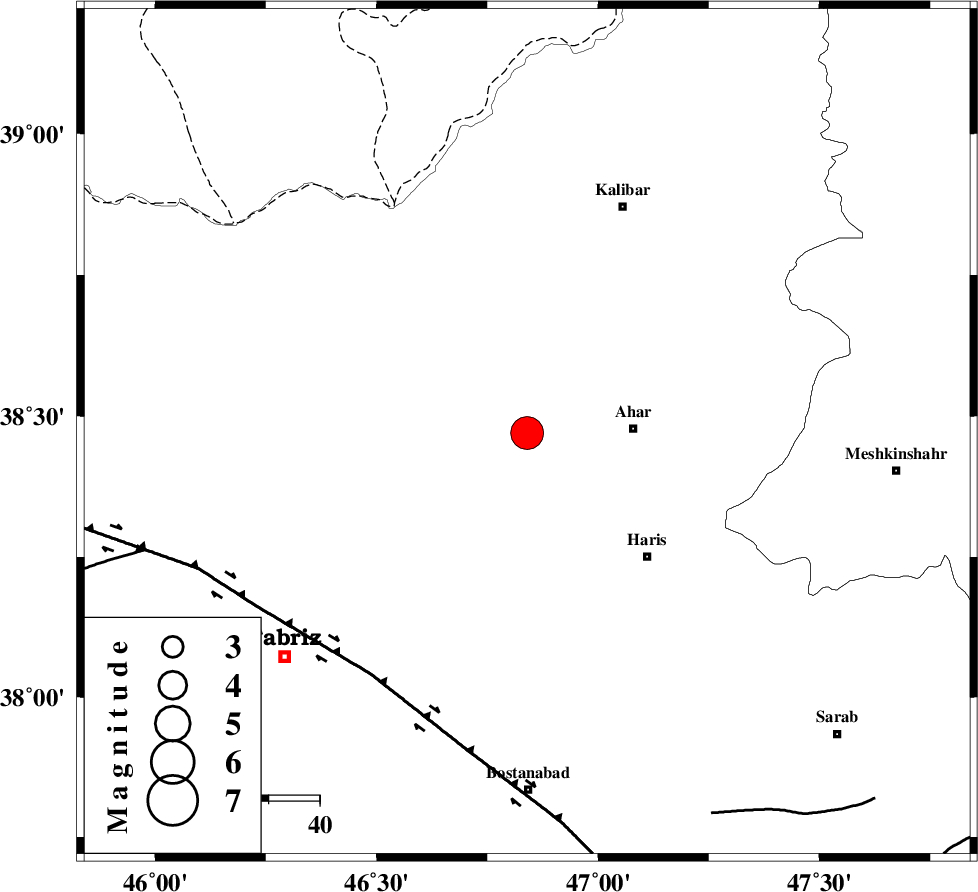

| Location | Lat:38.47 Lon: 46.84 |
| Region | Azarbaijan Sharghi Province, 21 km West of Ahar |
Nearest Cities |
|
| 12 km South of Tokhmdel, Azarbaijan Sharghi Province | |
| 15 km South West of Azghan, Azarbaijan Sharghi Province | |
| 17 km North West of Khuniq, Azarbaijan Sharghi Province | |
| 18 km East of Varzagan, Azarbaijan Sharghi Province | |
| 19 km South of Bekrabad, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 57 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 79 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 84 km | |
| Number of Phases | 4 |
| RMS | 0 |
| Number of Stations | 5 |
| Error in Latitude | >4.2 km |
| Error in Longitude | 3.9 km |
| Error in Depth | 10.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 84926 | IIEES | THKV | N | 516.4 | 0.52 | 2012-08-11 12:51:39 | 2012-08-11 01:36:00 | n |
| 84927 | IIEES | BJRD | N | 68.6 | 0.52 | 2012-08-11 12:52:59 | 2012-08-11 01:36:00 | n |
| 84928 | IIEES | BJRD | E | 65.2 | 0.6 | 2012-08-11 12:53:04 | 2012-08-11 01:36:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-08-11 12:49:24 | -0.01 | y | 99 | 68 | |||
| IIEES | GRMI | N | Sg | E | 2012-08-11 12:49:36 | 0.01 | y | 99 | 68 | |||
| IIEES | MAKU | Z | Pn | E | 2012-08-11 12:49:41 | 0 | y | 211 | 298 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-08-11 12:49:47 | 0 | y | 258 | 140 | |||
