Event Specification
Magnitude |
3.9 |
| Date & Time (UTC) | 2012-08-11 13:05:54.4 |
| Date & Time (Local) | 1391/5/21 17:35:54.4 |

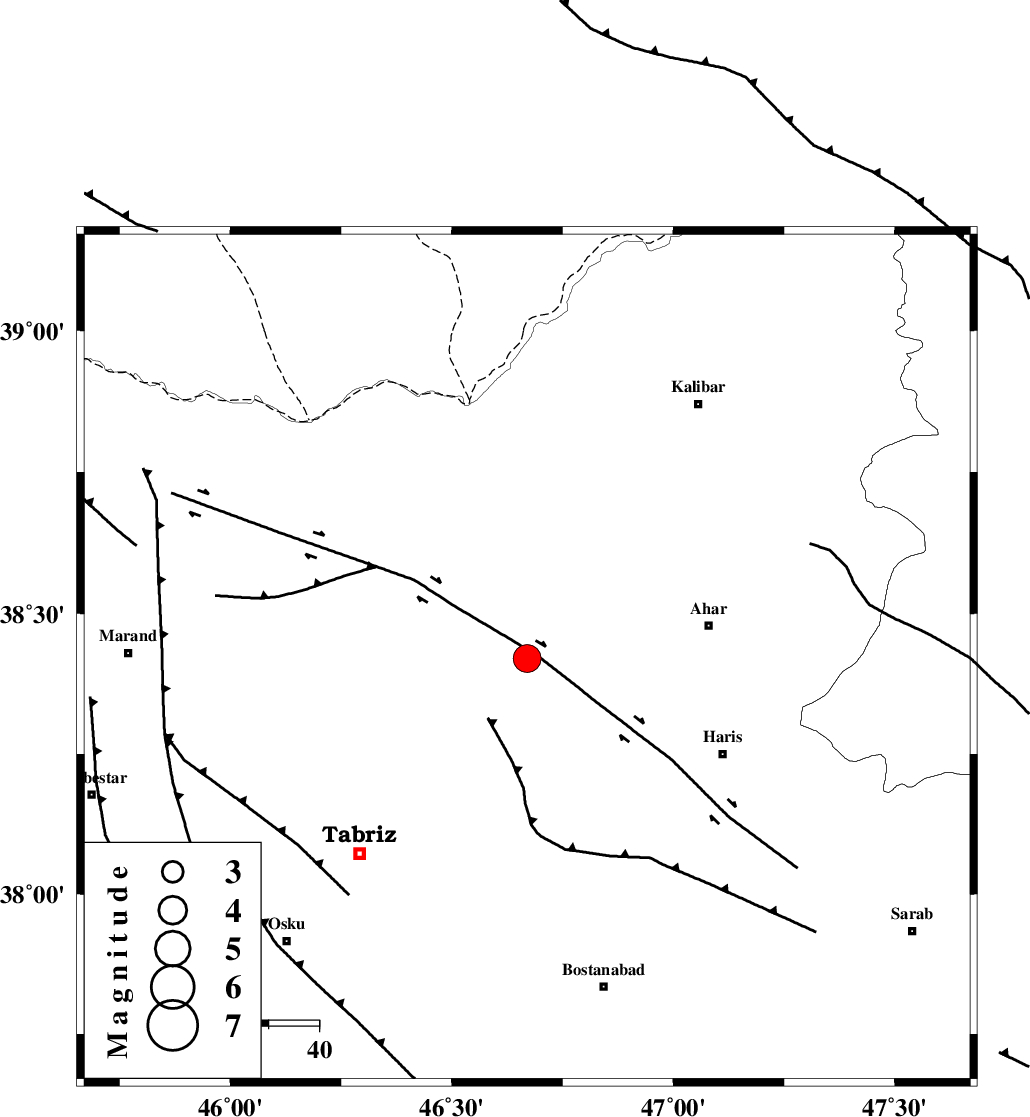

| Location | Lat:38.42 Lon: 46.67 |
| Region | Azarbaijan Sharghi Province, 36 km West of Ahar |
Nearest Cities |
|
| 8 km of Varzagan, Azarbaijan Sharghi Province | |
| 15 km North of Sarand, Azarbaijan Sharghi Province | |
| 18 km South of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 22 km South West of Tokhmdel, Azarbaijan Sharghi Province | |
| 25 km South of Bekrabad, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 45 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 63 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 87 km | |
| Number of Phases | 4 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >4.2 km |
| Error in Longitude | 4 km |
| Error in Depth | 10.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 84929 | IIEES | MAKU | N | 1031.5 | 0.48 | 2012-08-11 13:06:53 | 2012-08-11 01:45:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-08-11 13:06:13 | -0.04 | y | 115 | 67 | |||
| IIEES | GRMI | N | Sg | E | 2012-08-11 13:06:28 | 0.03 | y | 115 | 67 | |||
| IIEES | MAKU | Z | Pn | E | 2012-08-11 13:06:27 | 0 | y | 201 | 302 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-08-11 13:06:35 | 0 | y | 263 | 137 | |||
