Event Specification
Magnitude |
3.5 |
| Date & Time (UTC) | 2012-08-11 14:58:06.4 |
| Date & Time (Local) | 1391/5/21 19:28:06.4 |

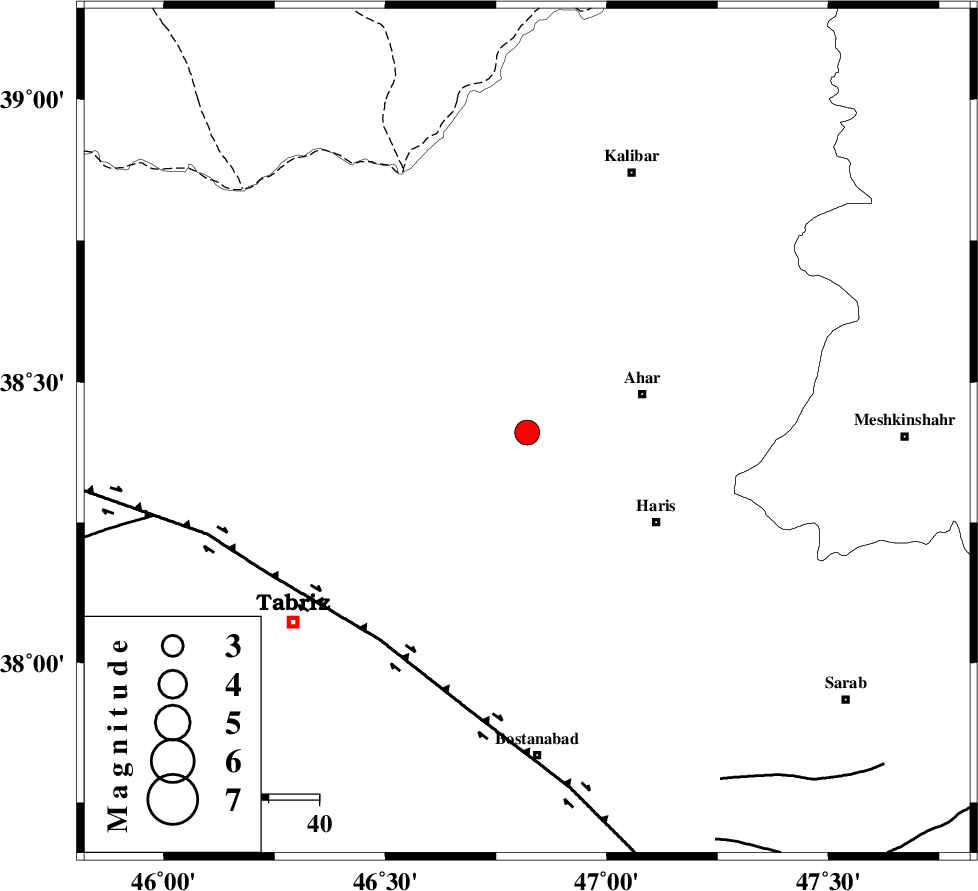

| Location | Lat:38.41 Lon: 46.82 |
| Region | Azarbaijan Sharghi Province, 24 km West of Ahar |
Nearest Cities |
|
| 16 km North West of Nikcheh, Azarbaijan Sharghi Province | |
| 18 km East of Varzagan, Azarbaijan Sharghi Province | |
| 19 km South of Tokhmdel, Azarbaijan Sharghi Province | |
| 19 km West of Khuniq, Azarbaijan Sharghi Province | |
| 20 km North of Bilverdi, Azarbaijan Sharghi Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 50 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 75 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 79 km | |
| Number of Phases | 4 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >4.4 km |
| Error in Longitude | 4.3 km |
| Error in Depth | 10.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 84953 | IIEES | GRMI | N | 1421.4 | 0.16 | 2012-08-11 14:58:38 | 2012-08-11 03:18:00 | n |
| 84954 | IIEES | GRMI | E | 1712.2 | 0.16 | 2012-08-11 14:58:40 | 2012-08-11 03:18:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-08-11 14:58:24 | 0 | y | 104 | 64 | |||
| IIEES | GRMI | N | Sg | E | 2012-08-11 14:58:36 | -0.01 | y | 104 | 64 | |||
| IIEES | MAKU | Z | Pn | E | 2012-08-11 14:58:40 | 0 | y | 213 | 300 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-08-11 14:58:45 | 0 | y | 254 | 139 | |||
