Event Specification
Magnitude |
3.9 |
| Date & Time (UTC) | 2012-08-11 16:00:50.0 |
| Date & Time (Local) | 1391/5/21 20:30:50.0 |

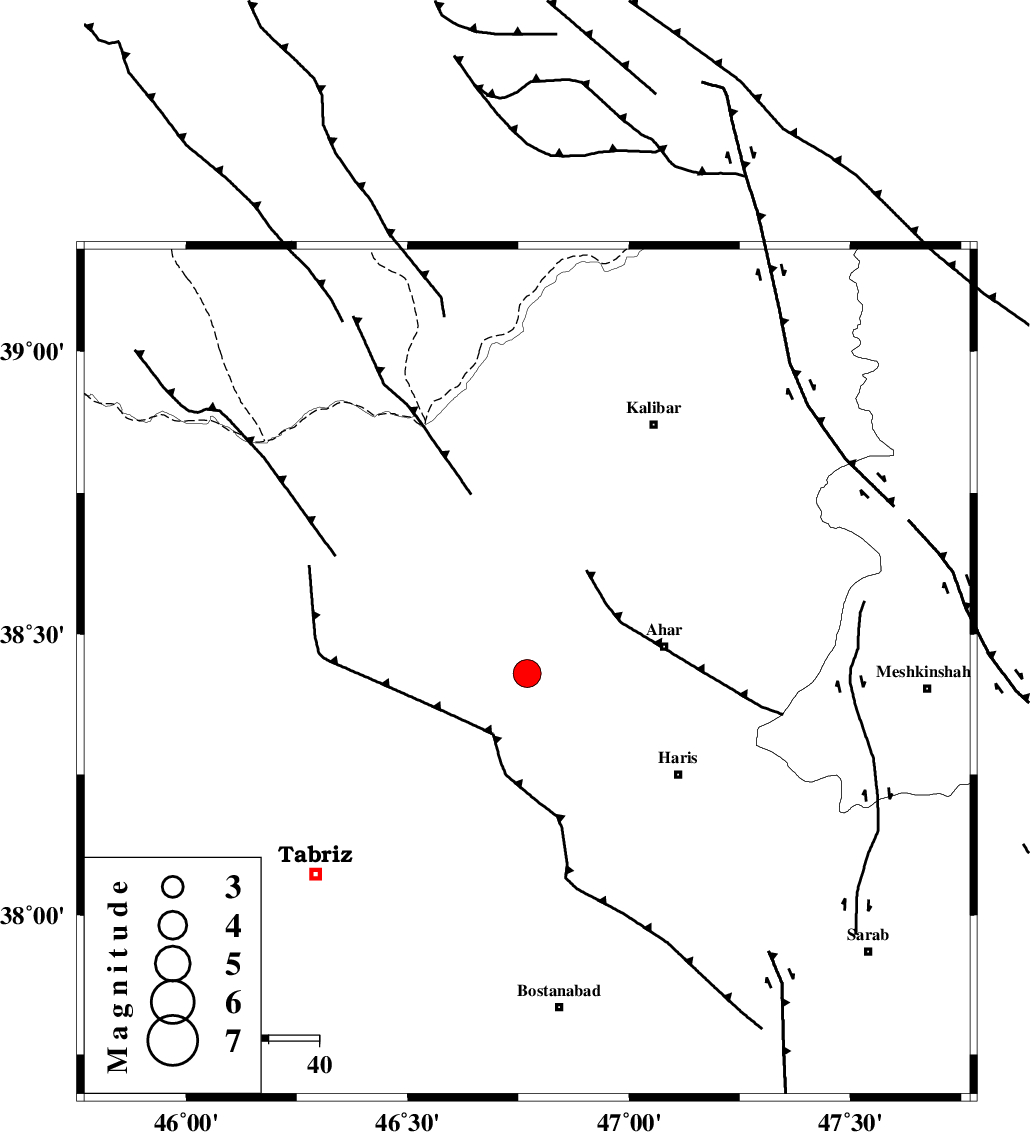

| Location | Lat:38.43 Lon: 46.77 |
| Region | Azarbaijan Sharghi Province, 28 km West of Ahar |
Nearest Cities |
|
| 13 km East of Varzagan, Azarbaijan Sharghi Province | |
| 17 km South of Tokhmdel, Azarbaijan Sharghi Province | |
| 20 km North East of Sarand, Azarbaijan Sharghi Province | |
| 21 km North West of Nikcheh, Azarbaijan Sharghi Province | |
| 22 km South of Bekrabad, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 50 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 72 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 83 km | |
| Number of Phases | 5 |
| RMS | 0.2 |
| Number of Stations | 3 |
| Error in Latitude | >5.9 km |
| Error in Longitude | 2.4 km |
| Error in Depth | 9.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 84966 | IIEES | GRMI | E | 3295.9 | 0.2 | 2012-08-11 16:01:22 | 2012-08-11 04:17:00 | n |
| 84967 | IIEES | MAKU | E | 1027.1 | 0.32 | 2012-08-11 16:01:49 | 2012-08-11 04:17:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-08-11 16:01:08 | 0.16 | y | 107 | 66 | |||
| IIEES | GRMI | N | Sg | E | 2012-08-11 16:01:21 | -0.08 | y | 107 | 66 | |||
| IIEES | MAKU | Z | Pn | E | 2012-08-11 16:01:24 | 0.32 | y | 208 | 300 | |||
| IIEES | MAKU | N | Sg | E | 2012-08-11 16:01:49 | -0.22 | y | 208 | 300 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-08-11 16:01:29 | -0.18 | y | 258 | 138 | |||
