Event Specification
Magnitude |
6.1 |
| Date & Time (UTC) | 2012-08-11 12:34:35.0 |
| Date & Time (Local) | 1391/5/21 17:04:35.0 |

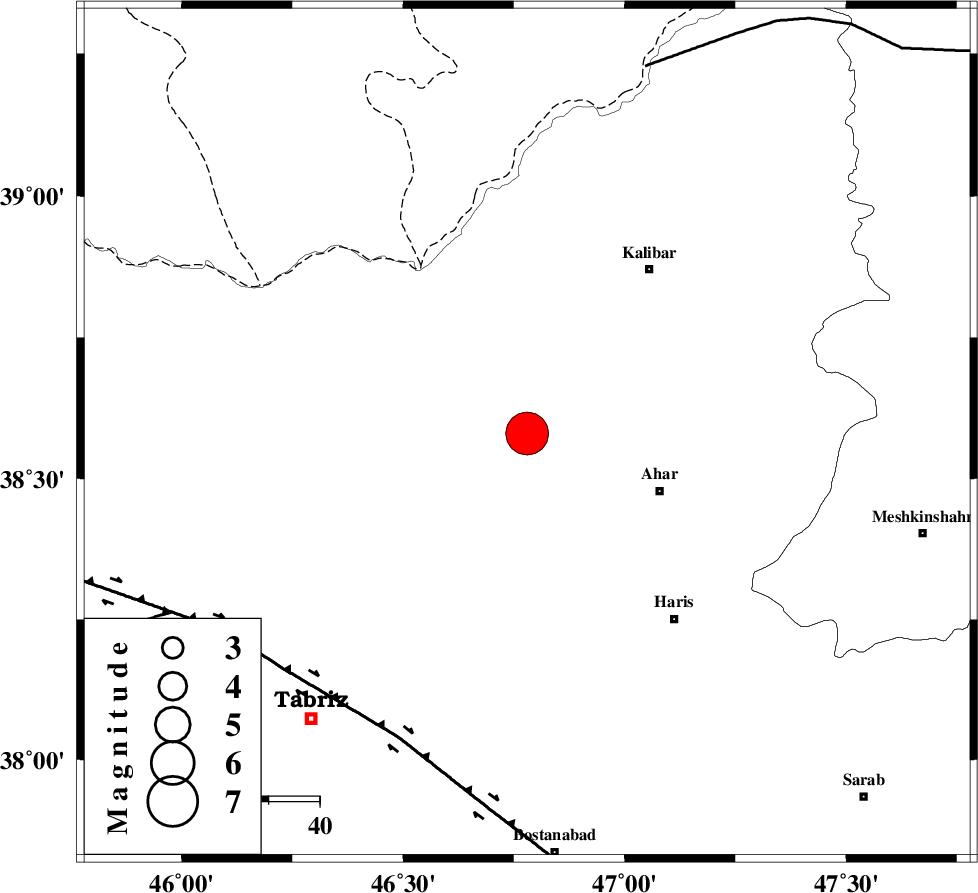

| Location | Lat:38.58 Lon: 46.78 |
| Region | Azarbaijan Sharghi Province, 28 km North-West of Ahar |
Nearest Cities |
|
| 3 km North of Tokhmdel, Azarbaijan Sharghi Province | |
| 5 km of Bekrabad, Azarbaijan Sharghi Province | |
| 14 km West of Azghan, Azarbaijan Sharghi Province | |
| 17 km North East of Varzagan, Azarbaijan Sharghi Province | |
| 18 km North East of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 65 km | |
| DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 76 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 78 km | |
| Number of Phases | 10 |
| RMS | 0.5 |
| Number of Stations | 10 |
| Error in Latitude | >7.4 km |
| Error in Longitude | 5.7 km |
| Error in Depth | 9.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 84972 | IIEES | ZHSF | Z | 3716.3 | 2.42 | 2012-08-11 12:38:14 | 2012-08-11 09:21:00 | n |
| 84973 | IIEES | CHBR | Z | 761.8 | 1.01 | 2012-08-11 12:38:42 | 2012-08-11 09:21:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-08-11 12:34:51 | -0.14 | y | 99.8 | 75 | |||
| IIEES | MAKU | Z | Pn | E | 2012-08-11 12:35:07 | 0.18 | y | 201 | 296 | |||
| IIEES | MAKU | N | Sg | E | 2012-08-11 12:35:32 | -0.02 | y | 201 | 296 | |||
| IIEES | SNGE | Z | Pn | E | 2012-08-11 12:35:31 | 0.05 | y | 390 | 172 | |||
| IIEES | THKV | Z | Pn | E | 2012-08-11 12:35:41 | 0.96 | y | 468 | 128 | |||
| IIEES | THKV | N | Sg | E | 2012-08-11 12:36:45 | 0.24 | y | 468 | 128 | |||
| IIEES | CHTH | Z | Pn | E | 2012-08-11 12:35:43 | 0.33 | y | 486 | 126 | |||
| IIEES | ASAO | Z | Pn | E | 2012-08-11 12:35:48 | -0.79 | y | 533 | 146 | |||
| IIEES | GHVR | Z | Pn | E | 2012-08-11 12:35:56 | -0.98 | y | 605 | 137 | |||
| IIEES | BJRD | Z | Pn | E | 2012-08-11 12:36:38 | -0.38 | y | 936 | 93 | |||
