Event Specification
Magnitude |
2.7 |
| Date & Time (UTC) | 2012-08-12 06:03:57.6 |
| Date & Time (Local) | 1391/5/22 10:33:57.6 |

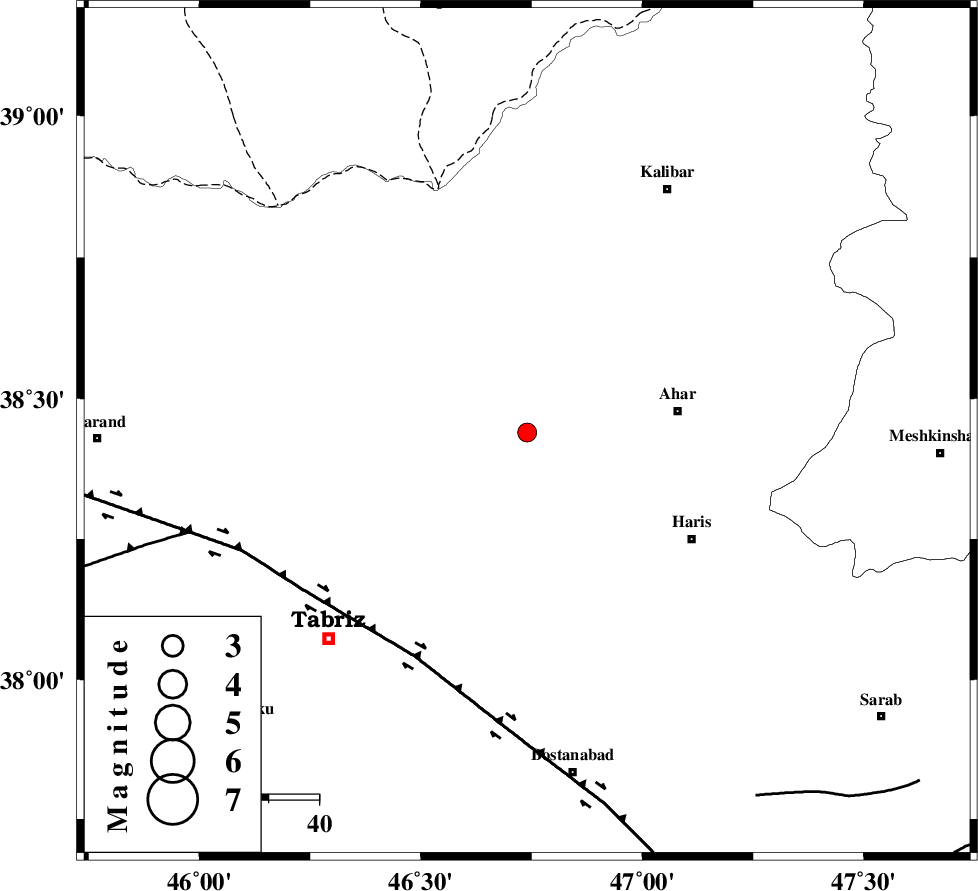

| Location | Lat:38.44 Lon: 46.74 |
| Region | Azarbaijan Sharghi Province, 30 km West of Ahar |
Nearest Cities |
|
| 11 km East of Varzagan, Azarbaijan Sharghi Province | |
| 17 km South of Tokhmdel, Azarbaijan Sharghi Province | |
| 19 km North East of Sarand, Azarbaijan Sharghi Province | |
| 20 km South East of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 21 km South of Bekrabad, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 50 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 69 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 85 km | |
| Number of Phases | 4 |
| RMS | 0.2 |
| Number of Stations | 3 |
| Error in Latitude | >6.7 km |
| Error in Longitude | 3.5 km |
| Error in Depth | 8.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 85082 | IIEES | GRMI | N | 230.6 | 0.14 | 2012-08-12 06:04:31 | 2012-08-12 06:16:00 | n |
| 85083 | IIEES | GRMI | E | 226.9 | 0.15 | 2012-08-12 06:04:32 | 2012-08-12 06:16:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-08-12 06:04:16 | -0.02 | y | 109 | 67 | |||
| IIEES | MAKU | Z | Pn | E | 2012-08-12 06:04:31 | 0.26 | y | 206 | 300 | |||
| IIEES | MAKU | N | Sg | E | 2012-08-12 06:04:56 | -0.16 | y | 206 | 300 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-08-12 06:04:37 | -0.08 | y | 260 | 138 | |||
