Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2012-08-12 10:15:33.7 |
| Date & Time (Local) | 1391/5/22 14:45:33.7 |

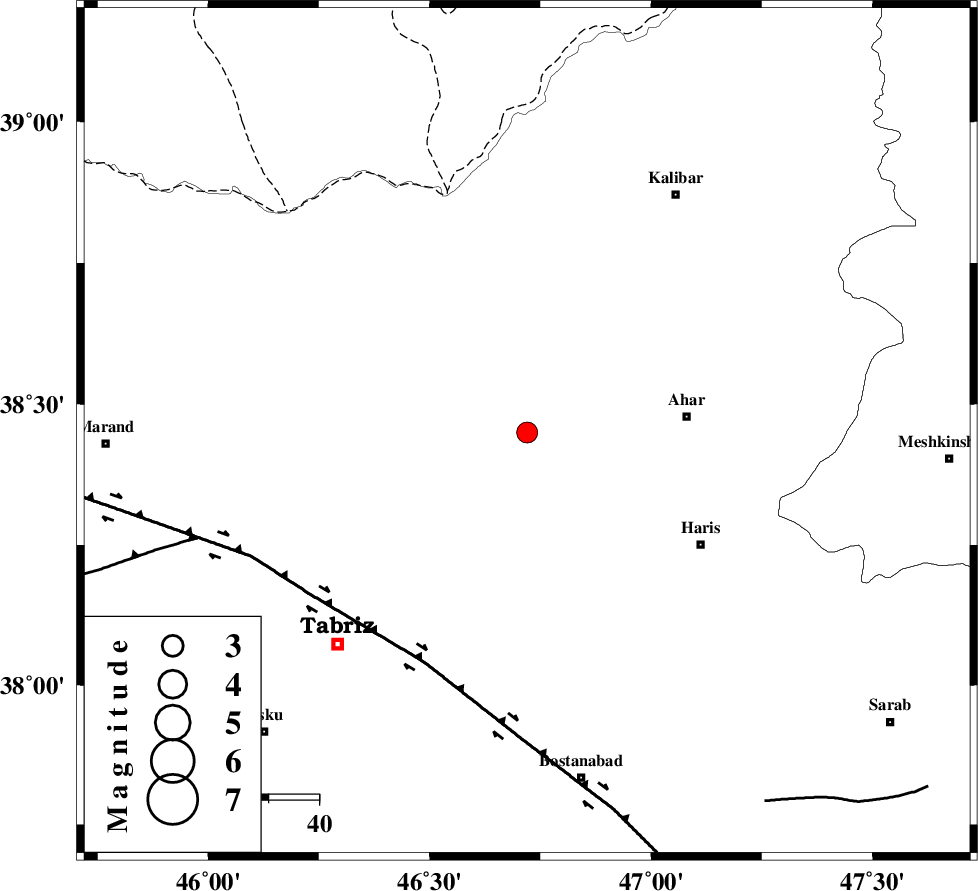

| Location | Lat:38.45 Lon: 46.72 |
| Region | Azarbaijan Sharghi Province, 31 km West of Ahar |
Nearest Cities |
|
| 8 km of Varzagan, Azarbaijan Sharghi Province | |
| 17 km South of Tokhmdel, Azarbaijan Sharghi Province | |
| 18 km South East of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 20 km North East of Sarand, Azarbaijan Sharghi Province | |
| 20 km South of Bekrabad, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 50 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 68 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 87 km | |
| Number of Phases | 4 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >4.6 km |
| Error in Longitude | 2.4 km |
| Error in Depth | 5.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 85115 | IIEES | GRMI | N | 324.3 | 0.15 | 2012-08-12 10:16:07 | 2012-08-12 11:16:00 | n |
| 85116 | IIEES | MAKU | N | 121.5 | 0.35 | 2012-08-12 10:16:32 | 2012-08-12 11:16:00 | n |
| 85117 | IIEES | MAKU | E | 76.8 | 0.44 | 2012-08-12 10:16:35 | 2012-08-12 11:16:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-08-12 10:15:52 | 0 | y | 109 | 68 | |||
| IIEES | MAKU | Z | Pn | E | 2012-08-12 10:16:06 | 0 | y | 203 | 300 | |||
| IIEES | MAKU | N | Sg | E | 2012-08-12 10:16:31 | 0 | y | 203 | 300 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-08-12 10:16:14 | 0 | y | 263 | 138 | |||
