Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2012-08-12 13:08:14.0 |
| Date & Time (Local) | 1391/5/22 17:38:14.0 |

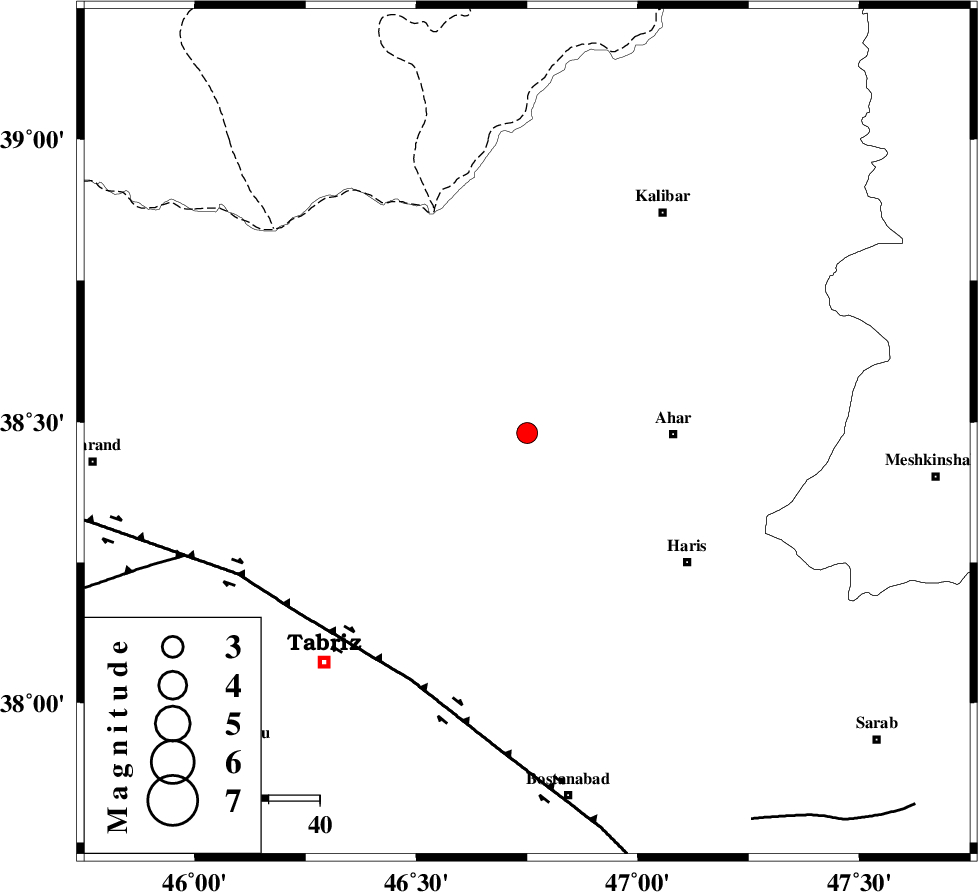

| Location | Lat:38.48 Lon: 46.75 |
| Region | Azarbaijan Sharghi Province, 28 km West of Ahar |
Nearest Cities |
|
| 10 km East of Varzagan, Azarbaijan Sharghi Province | |
| 12 km of Tokhmdel, Azarbaijan Sharghi Province | |
| 17 km South of Bekrabad, Azarbaijan Sharghi Province | |
| 18 km East of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 20 km South West of Azghan, Azarbaijan Sharghi Province | |
| Depth | 36 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 54 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 71 km | |
| DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 87 km | |
| Number of Phases | 4 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >4.8 km |
| Error in Longitude | 2.5 km |
| Error in Depth | 4.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 85137 | IIEES | GRMI | E | 232.9 | 0.16 | 2012-08-12 13:08:48 | 2012-08-12 01:29:00 | n |
| 85138 | IIEES | MAKU | N | 134.8 | 0.44 | 2012-08-12 13:09:11 | 2012-08-12 01:29:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-08-12 13:08:32 | 0 | y | 106 | 70 | |||
| IIEES | MAKU | Z | Pn | E | 2012-08-12 13:08:45 | 0 | y | 204 | 299 | |||
| IIEES | MAKU | N | Sg | E | 2012-08-12 13:09:11 | 0 | y | 204 | 299 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-08-12 13:08:52 | 0 | y | 264 | 139 | |||
