Event Specification
Magnitude |
3.6 |
| Date & Time (UTC) | 2012-08-13 04:15:53.1 |
| Date & Time (Local) | 1391/5/23 08:45:53.1 |

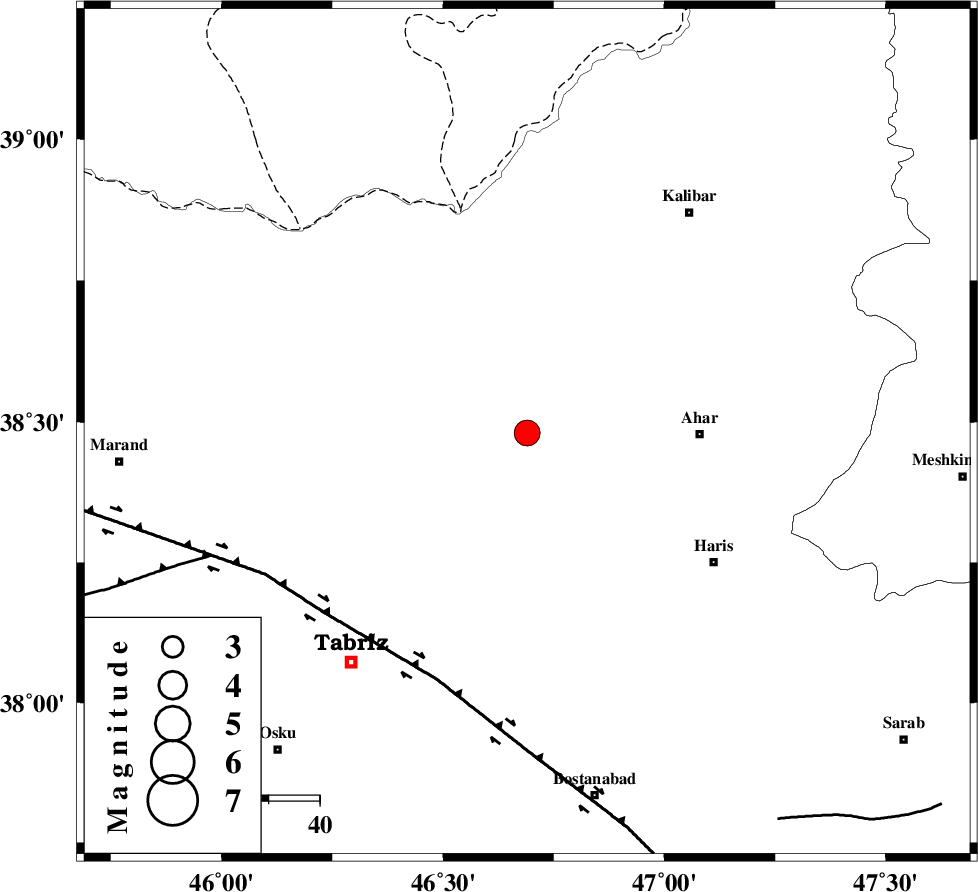

| Location | Lat:38.48 Lon: 46.69 |
| Region | Azarbaijan Sharghi Province, 34 km West of Ahar |
Nearest Cities |
|
| 5 km of Varzagan, Azarbaijan Sharghi Province | |
| 14 km East of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 16 km West of Tokhmdel, Azarbaijan Sharghi Province | |
| 18 km South of Bekrabad, Azarbaijan Sharghi Province | |
| 22 km North of Sarand, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 52 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 67 km | |
| DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 89 km | |
| Number of Phases | 7 |
| RMS | 0.3 |
| Number of Stations | 5 |
| Error in Latitude | >2.9 km |
| Error in Longitude | 3.7 km |
| Error in Depth | 6.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 85192 | IIEES | GRMI | E | 1172.1 | 0.29 | 2012-08-13 04:16:29 | 2012-08-13 04:44:00 | n |
| 85193 | IIEES | MAKU | N | 635.5 | 0.47 | 2012-08-13 04:16:51 | 2012-08-13 04:44:00 | n |
| 85194 | IIEES | MAKU | E | 556.5 | 0.53 | 2012-08-13 04:16:52 | 2012-08-13 04:44:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-08-13 04:16:12 | 0 | y | 111 | 70 | |||
| IIEES | MAKU | Z | Pn | E | 2012-08-13 04:16:25 | -0.37 | y | 199 | 300 | |||
| IIEES | MAKU | N | Sg | E | 2012-08-13 04:16:50 | 0.14 | y | 199 | 300 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-08-13 04:16:34 | 0.1 | y | 267 | 138 | |||
| IIEES | SNGE | Z | Pn | E | 2012-08-13 04:16:48 | 0.64 | y | 380 | 171 | |||
| IIEES | SNGE | E | Sg | E | 2012-08-13 04:17:39 | -0.35 | y | 380 | 171 | |||
| IIEES | MRVT | Z | Pn | E | 2012-08-13 04:17:43 | -0.31 | y | 830 | 93 | |||
