Event Specification
Magnitude |
2.5 |
| Date & Time (UTC) | 2012-08-13 08:04:55.2 |
| Date & Time (Local) | 1391/5/23 12:34:55.2 |

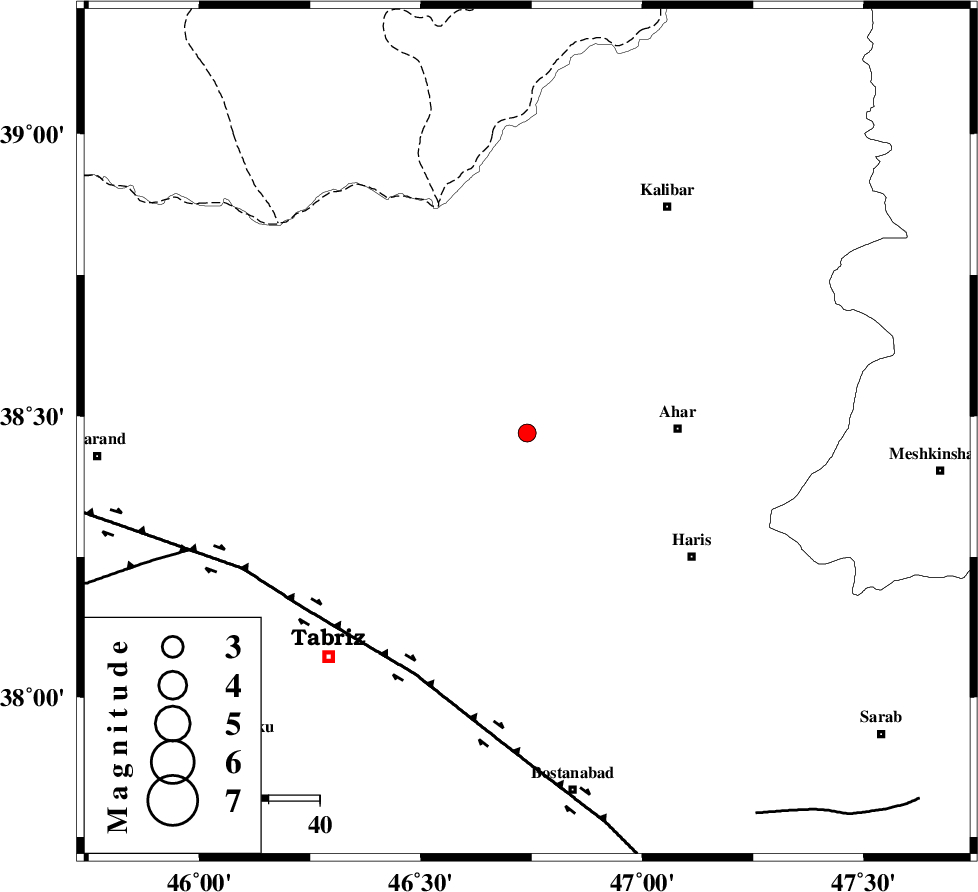

| Location | Lat:38.47 Lon: 46.74 |
| Region | Azarbaijan Sharghi Province, 30 km West of Ahar |
Nearest Cities |
|
| 10 km East of Varzagan, Azarbaijan Sharghi Province | |
| 14 km South of Tokhmdel, Azarbaijan Sharghi Province | |
| 18 km South of Bekrabad, Azarbaijan Sharghi Province | |
| 18 km East of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 21 km South West of Azghan, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 53 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 70 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 88 km | |
| Number of Phases | 4 |
| RMS | 0.2 |
| Number of Stations | 3 |
| Error in Latitude | >7.8 km |
| Error in Longitude | 4 km |
| Error in Depth | 9.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 85214 | IIEES | GRMI | N | 138.6 | 0.13 | 2012-08-13 08:05:27 | 2012-08-13 08:22:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-08-13 08:05:13 | 0.01 | y | 108 | 69 | |||
| IIEES | MAKU | Z | Pn | E | 2012-08-13 08:05:28 | 0.32 | y | 203 | 300 | |||
| IIEES | MAKU | N | Sg | E | 2012-08-13 08:05:52 | -0.19 | y | 203 | 300 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-08-13 08:05:35 | -0.14 | y | 264 | 139 | |||
