Event Specification
Magnitude |
2.3 |
| Date & Time (UTC) | 2012-08-13 22:52:09.5 |
| Date & Time (Local) | 1391/5/24 03:22:09.5 |

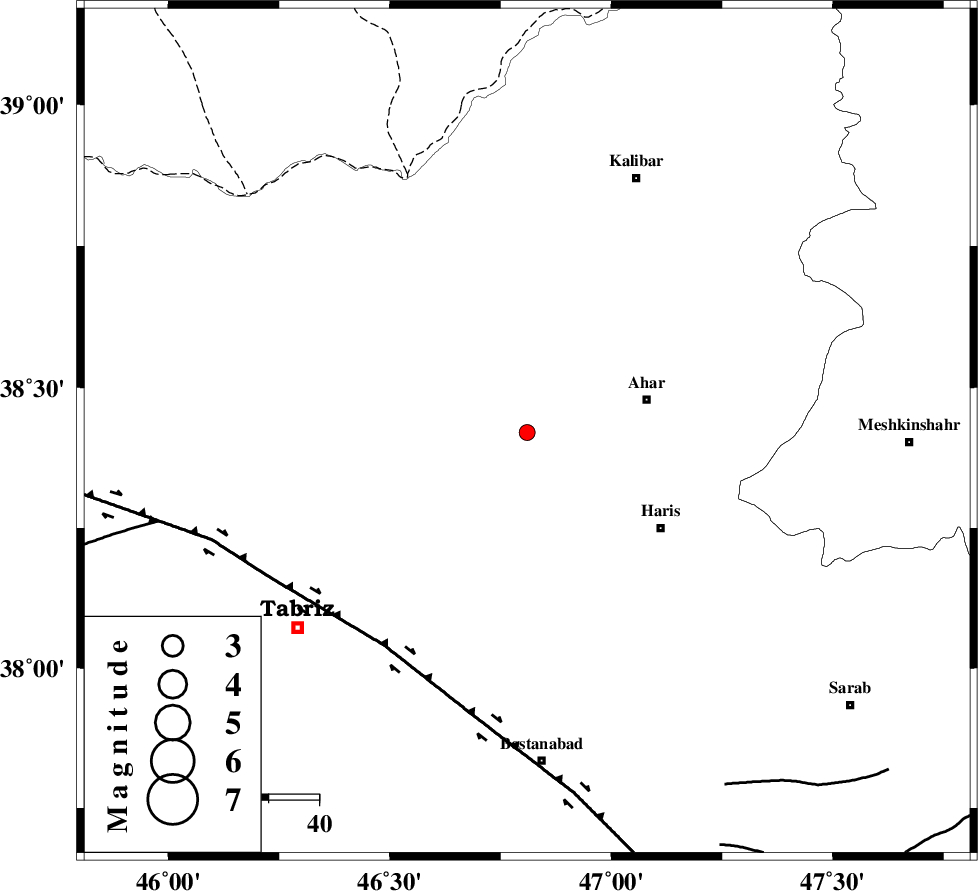

| Location | Lat:38.42 Lon: 46.81 |
| Region | Azarbaijan Sharghi Province, 24 km West of Ahar |
Nearest Cities |
|
| 17 km East of Varzagan, Azarbaijan Sharghi Province | |
| 17 km North West of Nikcheh, Azarbaijan Sharghi Province | |
| 17 km South of Tokhmdel, Azarbaijan Sharghi Province | |
| 20 km West of Khuniq, Azarbaijan Sharghi Province | |
| 21 km North of Bilverdi, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 51 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 75 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 80 km | |
| Number of Phases | 4 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >5.9 km |
| Error in Longitude | 3 km |
| Error in Depth | 7.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 85282 | IIEES | GRMI | N | 75.7 | 0.09 | 2012-08-13 22:52:43 | 2012-08-13 10:59:00 | n |
| 85283 | IIEES | GRMI | E | 95.9 | 0.16 | 2012-08-13 22:52:47 | 2012-08-13 10:59:00 | n |
| 85284 | IIEES | ZNJK | N | 17.4 | 0.28 | 2012-08-13 22:53:25 | 2012-08-13 10:59:00 | n |
| 85285 | IIEES | ZNJK | E | 18.7 | 0.36 | 2012-08-13 22:53:26 | 2012-08-13 10:59:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-08-13 22:52:27 | -0.02 | y | 104 | 65 | |||
| IIEES | MAKU | Z | Pn | E | 2012-08-13 22:52:43 | 0.21 | y | 212 | 300 | |||
| IIEES | MAKU | N | Sg | E | 2012-08-13 22:53:09 | -0.13 | y | 212 | 300 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-08-13 22:52:49 | -0.06 | y | 255 | 139 | |||
