Event Specification
Magnitude |
1.9 |
| Date & Time (UTC) | 2012-08-14 00:54:26.2 |
| Date & Time (Local) | 1391/5/24 05:24:26.2 |

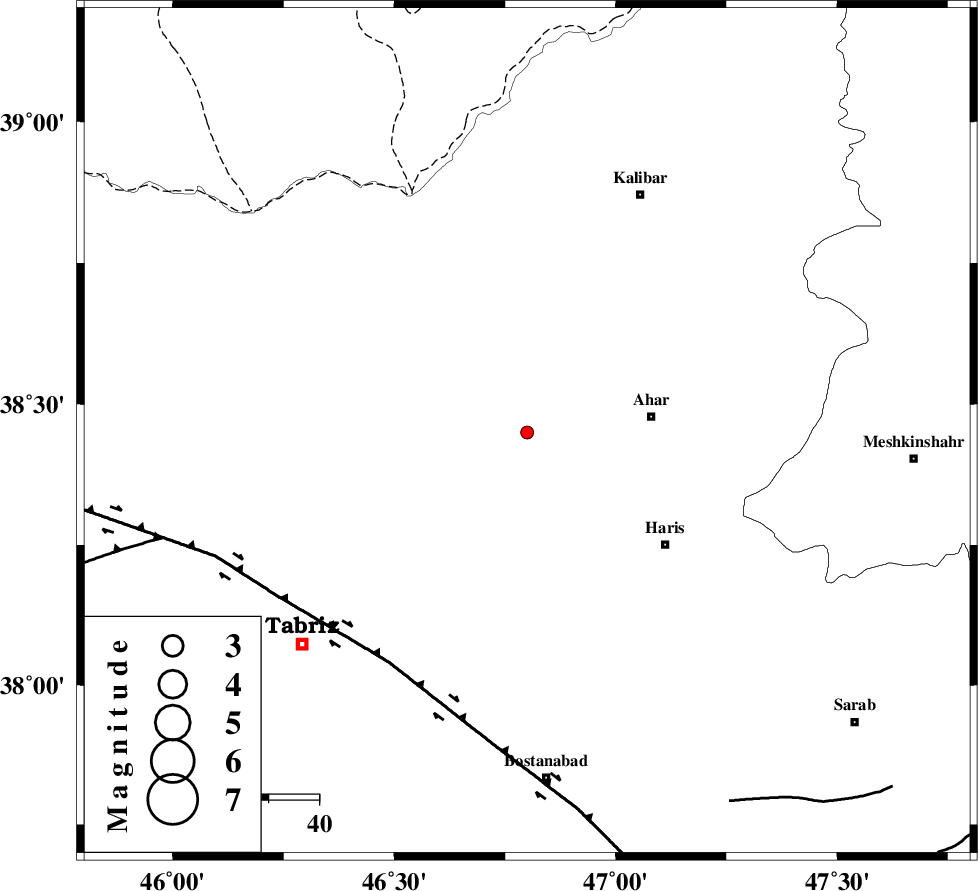

| Location | Lat:38.45 Lon: 46.8 |
| Region | Azarbaijan Sharghi Province, 25 km West of Ahar |
Nearest Cities |
|
| 14 km South of Tokhmdel, Azarbaijan Sharghi Province | |
| 15 km East of Varzagan, Azarbaijan Sharghi Province | |
| 19 km South West of Azghan, Azarbaijan Sharghi Province | |
| 20 km South of Bekrabad, Azarbaijan Sharghi Province | |
| 20 km North West of Khuniq, Azarbaijan Sharghi Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 53 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 75 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 83 km | |
| Number of Phases | 5 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >3.2 km |
| Error in Longitude | 1.3 km |
| Error in Depth | 5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 85291 | IIEES | GRMI | E | 40.6 | 0.2 | 2012-08-14 00:55:00 | 2012-08-14 01:49:00 | n |
| 85292 | IIEES | GRMI | N | 33.1 | 0.16 | 2012-08-14 00:55:01 | 2012-08-14 01:49:00 | n |
| 85293 | IIEES | MAKU | N | 7.8 | 0.28 | 2012-08-14 00:55:26 | 2012-08-14 01:49:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-08-14 00:54:43 | 0.03 | y | 103 | 67 | |||
| IIEES | GRMI | N | Sg | E | 2012-08-14 00:54:56 | -0.02 | y | 103 | 67 | |||
| IIEES | MAKU | Z | Pn | E | 2012-08-14 00:54:59 | 0.01 | y | 209 | 299 | |||
| IIEES | MAKU | N | Sg | E | 2012-08-14 00:55:25 | -0.01 | y | 209 | 299 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-08-14 00:55:06 | -0.01 | y | 258 | 139 | |||
