Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2012-08-14 16:49:00.3 |
| Date & Time (Local) | 1391/5/24 21:19:00.3 |

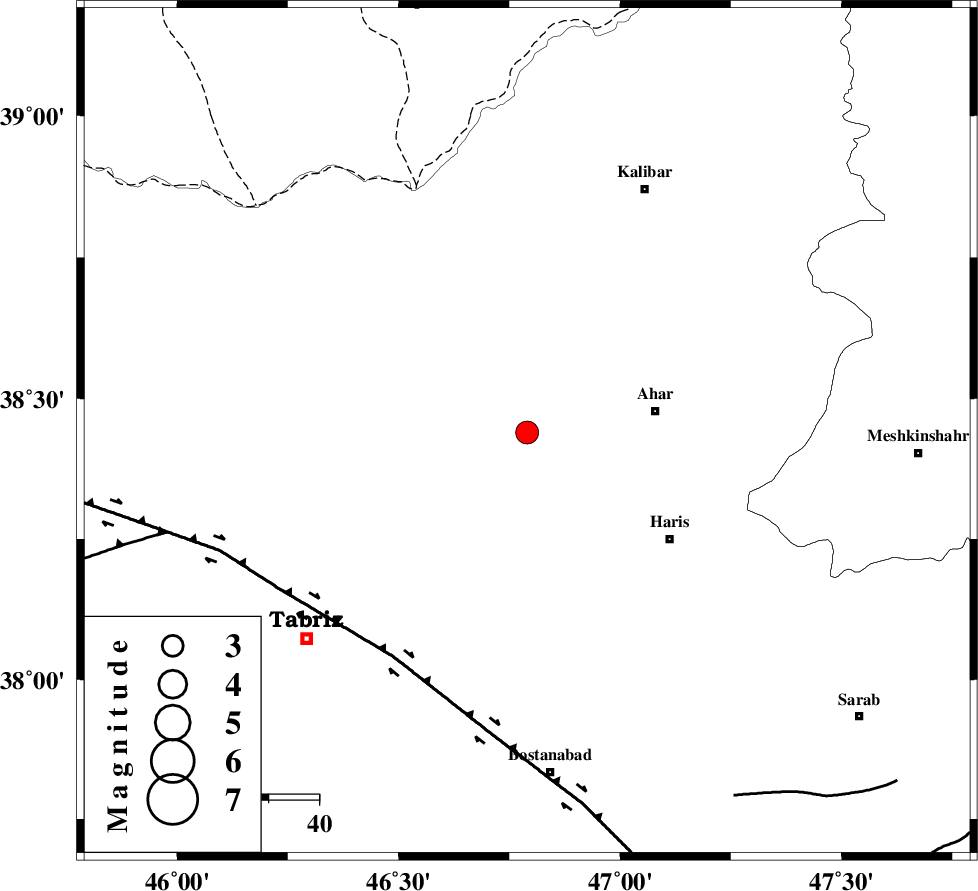

| Location | Lat:38.44 Lon: 46.79 |
| Region | Azarbaijan Sharghi Province, 26 km West of Ahar |
Nearest Cities |
|
| 15 km East of Varzagan, Azarbaijan Sharghi Province | |
| 15 km South of Tokhmdel, Azarbaijan Sharghi Province | |
| 20 km North West of Nikcheh, Azarbaijan Sharghi Province | |
| 21 km South West of Azghan, Azarbaijan Sharghi Province | |
| 21 km South of Bekrabad, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 52 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 73 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 83 km | |
| Number of Phases | 5 |
| RMS | 0.2 |
| Number of Stations | 3 |
| Error in Latitude | >6.8 km |
| Error in Longitude | 2.7 km |
| Error in Depth | 10.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 85340 | IIEES | GRMI | E | 1396.6 | 0.38 | 2012-08-14 16:49:34 | 2012-08-14 05:07:00 | n |
| 85341 | IIEES | GRMI | N | 856.5 | 0.28 | 2012-08-14 16:49:34 | 2012-08-14 05:07:00 | n |
| 85342 | IIEES | MAKU | N | 68.6 | 0.48 | 2012-08-14 16:50:05 | 2012-08-14 05:07:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-08-14 16:49:18 | 0.02 | y | 105 | 67 | |||
| IIEES | GRMI | N | Sg | E | 2012-08-14 16:49:30 | -0.04 | y | 105 | 67 | |||
| IIEES | MAKU | Z | Pn | E | 2012-08-14 16:49:34 | 0.45 | y | 209 | 300 | |||
| IIEES | MAKU | N | Sg | E | 2012-08-14 16:49:59 | -0.28 | y | 209 | 300 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-08-14 16:49:40 | -0.15 | y | 258 | 139 | |||
