Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2012-08-15 01:39:55.2 |
| Date & Time (Local) | 1391/5/25 06:09:55.2 |
| Location | Lat:38.46 Lon: 46.7 |
| Region | Azarbaijan Sharghi Province, 33 km West of Ahar |
Nearest Cities |
|
| 6 km of Varzagan, Azarbaijan Sharghi Province | |
| 16 km South East of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 17 km South West of Tokhmdel, Azarbaijan Sharghi Province | |
| 20 km South of Bekrabad, Azarbaijan Sharghi Province | |
| 20 km North of Sarand, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |

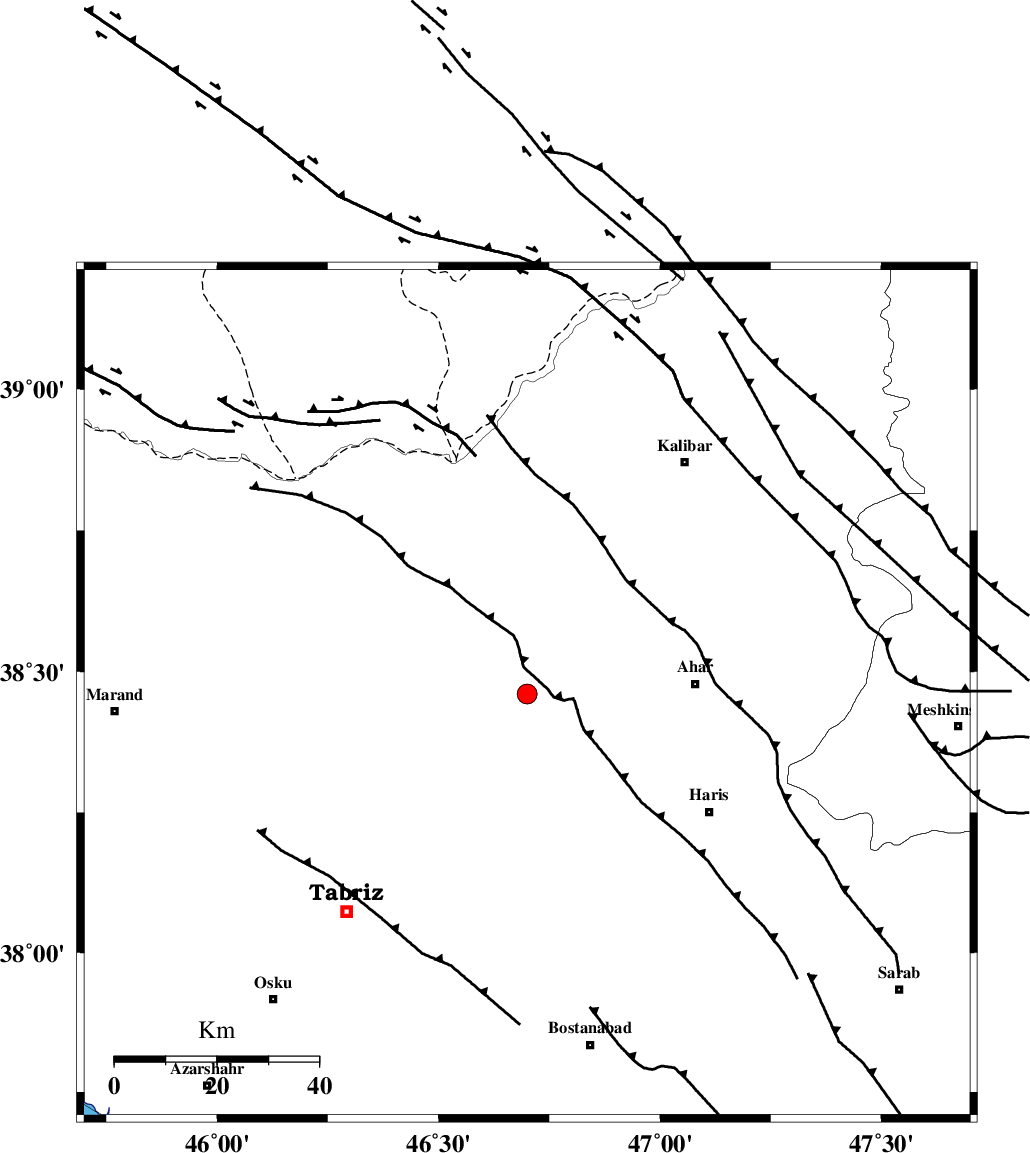

Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 50 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 67 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 89 km | |
| Number of Phases | 4 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >5.6 km |
| Error in Longitude | 2.9 km |
| Error in Depth | 7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 85351 | IIEES | GRMI | N | 244.2 | 0.2 | 2012-08-15 01:40:28 | 2012-08-15 01:49:00 | n |
| 85352 | IIEES | GRMI | E | 281.5 | 0.16 | 2012-08-15 01:40:30 | 2012-08-15 01:49:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-08-15 01:40:14 | -0.01 | y | 111 | 69 | |||
| IIEES | MAKU | Z | Pn | E | 2012-08-15 01:40:28 | 0.15 | y | 201 | 300 | |||
| IIEES | MAKU | N | Sg | E | 2012-08-15 01:40:52 | -0.09 | y | 201 | 300 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-08-15 01:40:35 | -0.05 | y | 265 | 138 | |||
