Event Specification
Magnitude |
2.5 |
| Date & Time (UTC) | 2012-08-14 23:50:16.9 |
| Date & Time (Local) | 1391/5/25 04:20:16.9 |

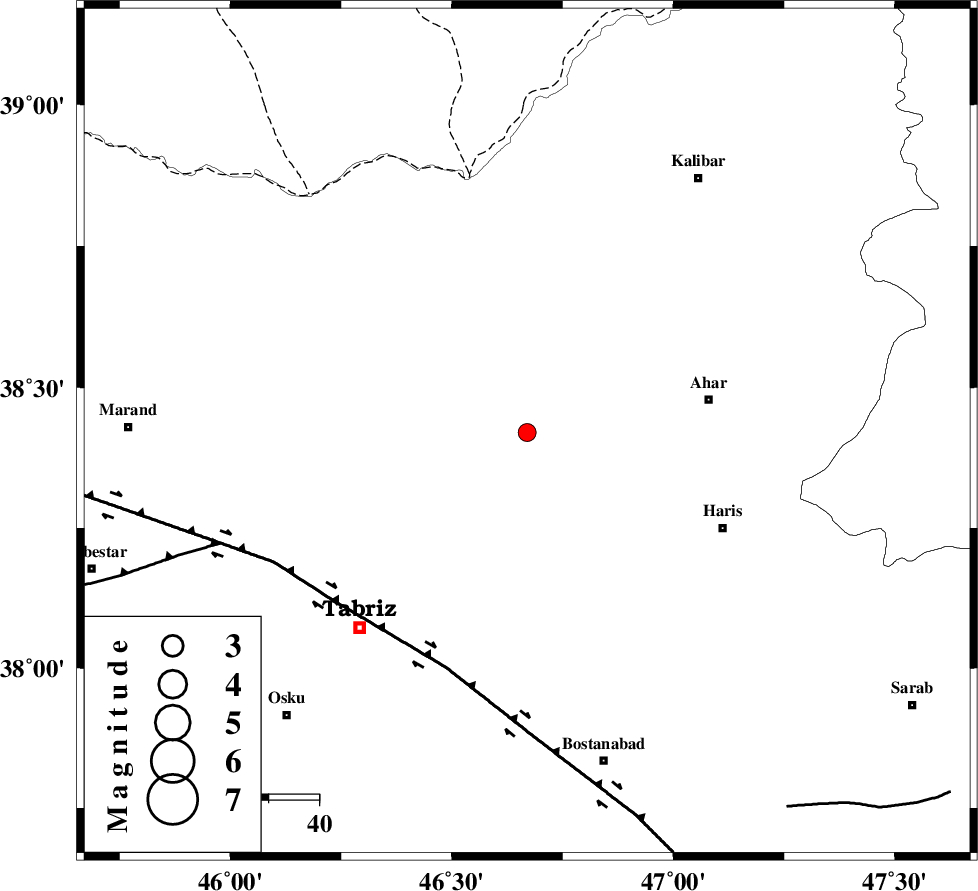

| Location | Lat:38.42 Lon: 46.67 |
| Region | Azarbaijan Sharghi Province, 36 km West of Ahar |
Nearest Cities |
|
| 8 km of Varzagan, Azarbaijan Sharghi Province | |
| 15 km North of Sarand, Azarbaijan Sharghi Province | |
| 18 km South of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 22 km South West of Tokhmdel, Azarbaijan Sharghi Province | |
| 25 km South of Bekrabad, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 45 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 63 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 87 km | |
| Number of Phases | 5 |
| RMS | 0.2 |
| Number of Stations | 3 |
| Error in Latitude | >5.8 km |
| Error in Longitude | 2.4 km |
| Error in Depth | 9.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 85353 | IIEES | GRMI | E | 128.7 | 0.28 | 2012-08-14 23:50:52 | 2012-08-15 02:41:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-08-14 23:50:36 | -0.22 | y | 115 | 67 | |||
| IIEES | GRMI | N | Sg | E | 2012-08-14 23:50:50 | 0.12 | y | 115 | 67 | |||
| IIEES | MAKU | Z | Pn | E | 2012-08-14 23:50:50 | 0.3 | y | 201 | 302 | |||
| IIEES | MAKU | N | Sg | E | 2012-08-14 23:51:14 | -0.16 | y | 201 | 302 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-08-14 23:50:57 | -0.04 | y | 263 | 137 | |||
