Event Specification
Magnitude |
2.4 |
| Date & Time (UTC) | 2012-08-15 09:03:49.1 |
| Date & Time (Local) | 1391/5/25 13:33:49.1 |

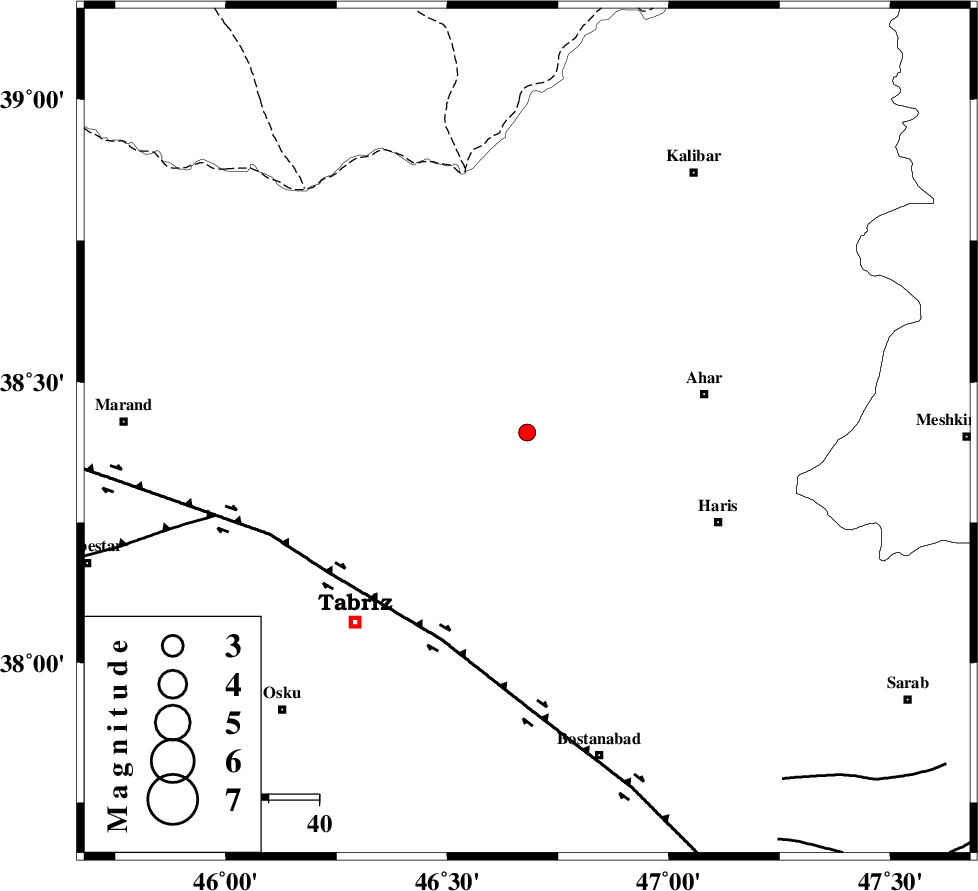

| Location | Lat:38.41 Lon: 46.68 |
| Region | Azarbaijan Sharghi Province, 36 km West of Ahar |
Nearest Cities |
|
| 9 km of Varzagan, Azarbaijan Sharghi Province | |
| 14 km North of Sarand, Azarbaijan Sharghi Province | |
| 19 km South East of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 22 km South West of Tokhmdel, Azarbaijan Sharghi Province | |
| 25 km North West of Bilverdi, Azarbaijan Sharghi Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 44 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 63 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 85 km | |
| Number of Phases | 4 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >6.5 km |
| Error in Longitude | 3.5 km |
| Error in Depth | 7.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 85366 | IIEES | GRMI | E | 103.4 | 0.2 | 2012-08-15 09:04:23 | 2012-08-15 09:31:00 | n |
| 85367 | IIEES | GRMI | N | 83.9 | 0.22 | 2012-08-15 09:04:27 | 2012-08-15 09:31:00 | n |
| 85368 | IIEES | MAKU | E | 35.2 | 0.36 | 2012-08-15 09:04:50 | 2012-08-15 09:31:00 | n |
| 85369 | IIEES | MAKU | N | 33.2 | 0.42 | 2012-08-15 09:04:50 | 2012-08-15 09:31:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-08-15 09:04:08 | 0.02 | y | 114 | 67 | |||
| IIEES | MAKU | Z | Pn | E | 2012-08-15 09:04:21 | -0.23 | y | 202 | 302 | |||
| IIEES | MAKU | N | Sg | E | 2012-08-15 09:04:46 | 0.14 | y | 202 | 302 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-08-15 09:04:29 | 0.07 | y | 262 | 137 | |||
