Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2012-08-16 05:34:44.9 |
| Date & Time (Local) | 1391/5/26 10:04:44.9 |

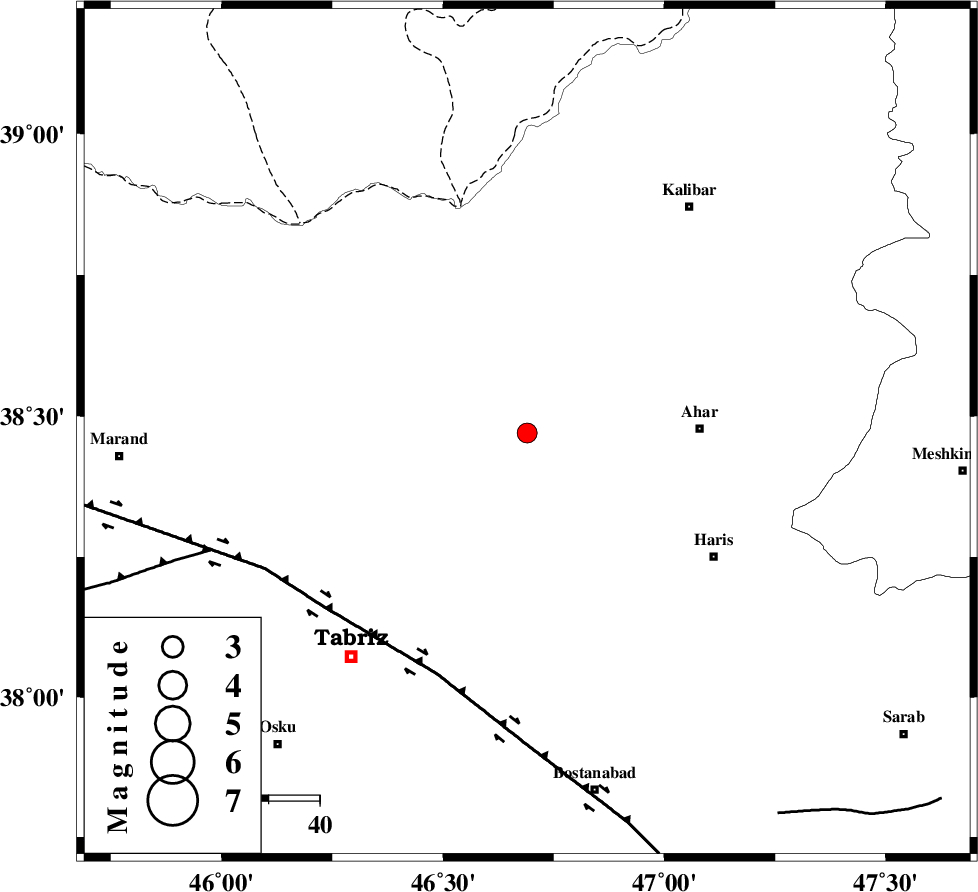

| Location | Lat:38.47 Lon: 46.69 |
| Region | Azarbaijan Sharghi Province, 34 km West of Ahar |
Nearest Cities |
|
| 5 km of Varzagan, Azarbaijan Sharghi Province | |
| 15 km East of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 16 km South West of Tokhmdel, Azarbaijan Sharghi Province | |
| 19 km South of Bekrabad, Azarbaijan Sharghi Province | |
| 20 km North of Sarand, Azarbaijan Sharghi Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 51 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 66 km | |
| DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 90 km | |
| Number of Phases | 4 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >4.7 km |
| Error in Longitude | 2.4 km |
| Error in Depth | 5.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 85412 | IIEES | GRMI | E | 292.9 | 0.22 | 2012-08-16 05:35:19 | 2012-08-16 05:47:00 | n |
| 85413 | IIEES | GRMI | N | 267.7 | 0.19 | 2012-08-16 05:35:20 | 2012-08-16 05:47:00 | n |
| 85414 | IIEES | MAKU | N | 66.7 | 0.2 | 2012-08-16 05:35:42 | 2012-08-16 05:47:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-08-16 05:35:03 | 0 | y | 111 | 70 | |||
| IIEES | MAKU | Z | Pn | E | 2012-08-16 05:35:17 | 0 | y | 200 | 300 | |||
| IIEES | MAKU | N | Sg | E | 2012-08-16 05:35:41 | 0 | y | 200 | 300 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-08-16 05:35:25 | 0 | y | 266 | 138 | |||
