Event Specification
Magnitude |
2.7 |
| Date & Time (UTC) | 2012-08-16 18:14:28.6 |
| Date & Time (Local) | 1391/5/26 22:44:28.6 |

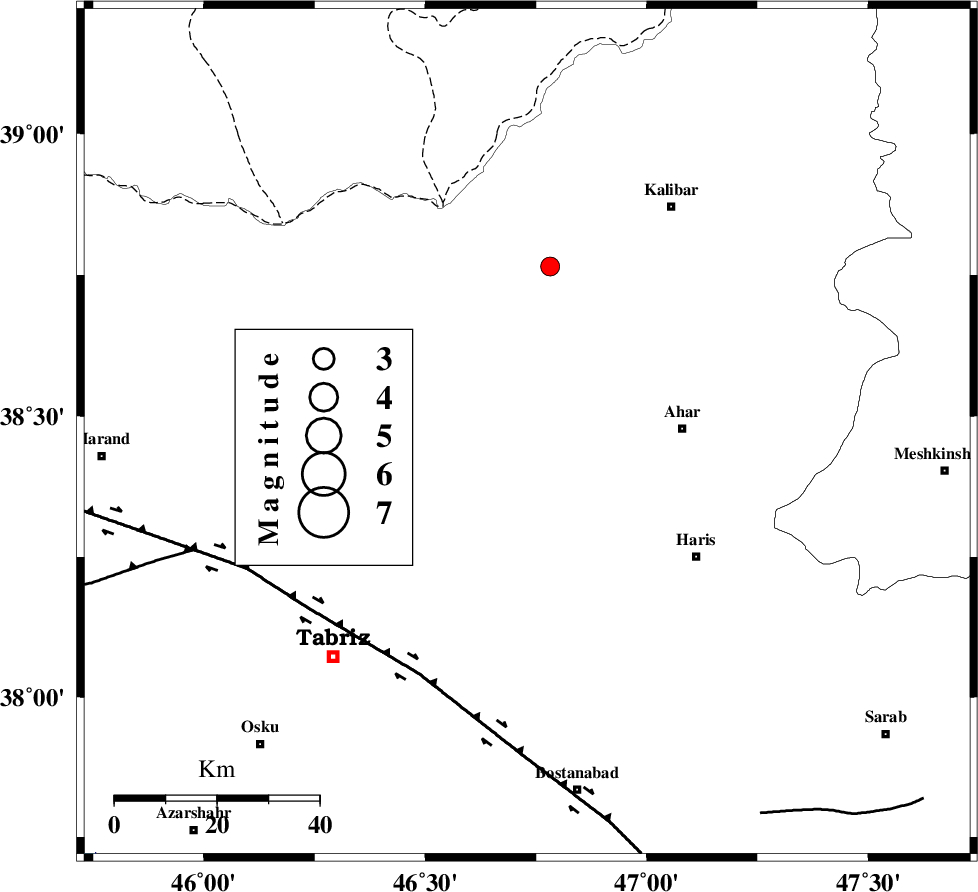

| Location | Lat:38.47 Lon: 46.73 |
| Region | Azarbaijan Sharghi Province, 31 km West of Ahar |
Nearest Cities |
|
| 9 km of Varzagan, Azarbaijan Sharghi Province | |
| 14 km South of Tokhmdel, Azarbaijan Sharghi Province | |
| 17 km East of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 18 km South of Bekrabad, Azarbaijan Sharghi Province | |
| 22 km North East of Sarand, Azarbaijan Sharghi Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 52 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 69 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 88 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >4.4 km |
| Error in Longitude | 1.7 km |
| Error in Depth | 6.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 85455 | IIEES | GRMI | N | 186.3 | 0.13 | 2012-08-16 18:15:02 | 2012-08-16 06:40:00 | n |
| 85456 | IIEES | GRMI | E | 226.3 | 0.16 | 2012-08-16 18:15:03 | 2012-08-16 06:40:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-08-16 18:14:47 | 0.19 | y | 108 | 69 | |||
| IIEES | GRMI | N | Sg | E | 2012-08-16 18:15:00 | -0.12 | y | 108 | 69 | |||
| IIEES | MAKU | Z | Pn | E | 2012-08-16 18:15:01 | 0.07 | y | 203 | 300 | |||
| IIEES | MAKU | N | Sg | E | 2012-08-16 18:15:26 | -0.07 | y | 203 | 300 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-08-16 18:15:09 | -0.07 | y | 264 | 138 | |||
