Event Specification
Magnitude |
2.4 |
| Date & Time (UTC) | 2012-08-16 19:23:43.3 |
| Date & Time (Local) | 1391/5/26 23:53:43.3 |

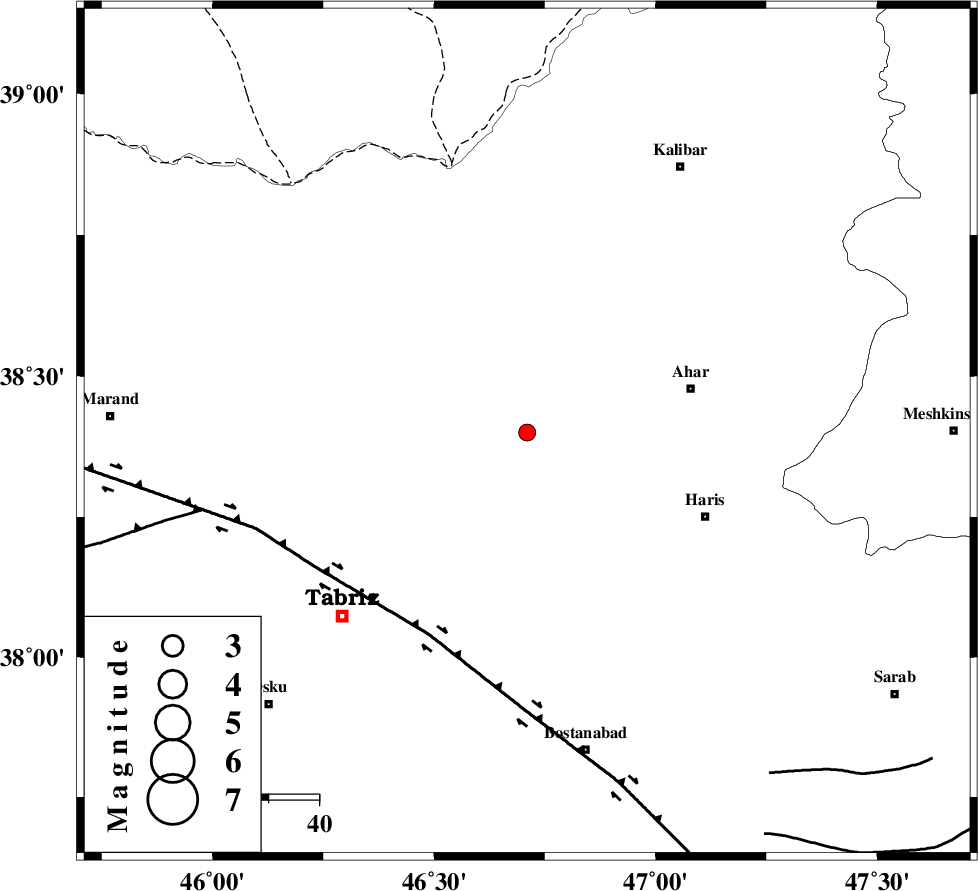

| Location | Lat:38.4 Lon: 46.71 |
| Region | Azarbaijan Sharghi Province, 33 km West of Ahar |
Nearest Cities |
|
| 11 km of Varzagan, Azarbaijan Sharghi Province | |
| 14 km North of Sarand, Azarbaijan Sharghi Province | |
| 22 km South East of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 22 km South West of Tokhmdel, Azarbaijan Sharghi Province | |
| 22 km North West of Bilverdi, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 44 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 66 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 83 km | |
| Number of Phases | 4 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >6.4 km |
| Error in Longitude | 3.4 km |
| Error in Depth | 8.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 85463 | IIEES | GRMI | N | 88.8 | 0.2 | 2012-08-16 19:24:18 | 2012-08-16 07:47:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-08-16 19:24:02 | -0.02 | y | 113 | 66 | |||
| IIEES | MAKU | Z | Pn | E | 2012-08-16 19:24:16 | 0.23 | y | 205 | 302 | |||
| IIEES | MAKU | N | Sg | E | 2012-08-16 19:24:41 | -0.14 | y | 205 | 302 | |||
| IIEES | ZNJK | N | Pn | E | 2012-08-16 19:24:23 | -0.07 | y | 260 | 137 | |||
