Event Specification
Magnitude |
2.3 |
| Date & Time (UTC) | 2012-08-18 02:37:41.0 |
| Date & Time (Local) | 1391/5/28 07:07:41.0 |

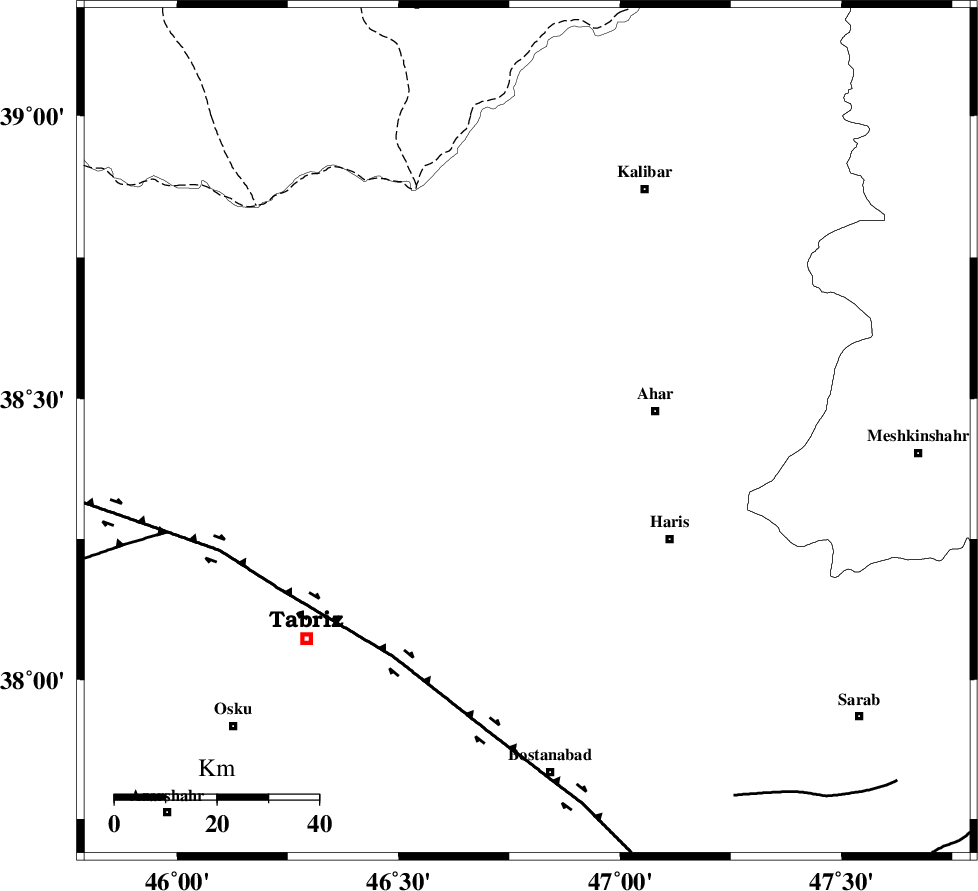

| Location | Lat:38.44 Lon: 46.79 |
| Region | Azarbaijan Sharghi Province, 25 km West of Ahar |
Nearest Cities |
|
| 15 km East of Varzagan, Azarbaijan Sharghi Province | |
| 15 km South of Tokhmdel, Azarbaijan Sharghi Province | |
| 20 km North West of Nikcheh, Azarbaijan Sharghi Province | |
| 21 km South West of Azghan, Azarbaijan Sharghi Province | |
| 21 km South of Bekrabad, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 52 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 73 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 83 km | |
| Number of Phases | 4 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >6.1 km |
| Error in Longitude | 3.1 km |
| Error in Depth | 8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 85538 | IIEES | GRMI | E | 79.7 | 0.12 | 2012-08-18 02:38:15 | 2012-08-18 03:12:00 | n |
| 85539 | IIEES | GRMI | N | 83.4 | 0.16 | 2012-08-18 02:38:15 | 2012-08-18 03:12:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-08-18 02:37:58 | 0.01 | y | 104 | 67 | |||
| IIEES | MAKU | Z | Pn | E | 2012-08-18 02:38:15 | 0.22 | y | 209 | 300 | |||
| IIEES | MAKU | N | Sg | E | 2012-08-18 02:38:40 | -0.13 | y | 209 | 300 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-08-18 02:38:20 | -0.1 | y | 258 | 139 | |||
