Event Specification
Magnitude |
2.4 |
| Date & Time (UTC) | 2012-08-19 10:51:58.8 |
| Date & Time (Local) | 1391/5/29 15:21:58.8 |

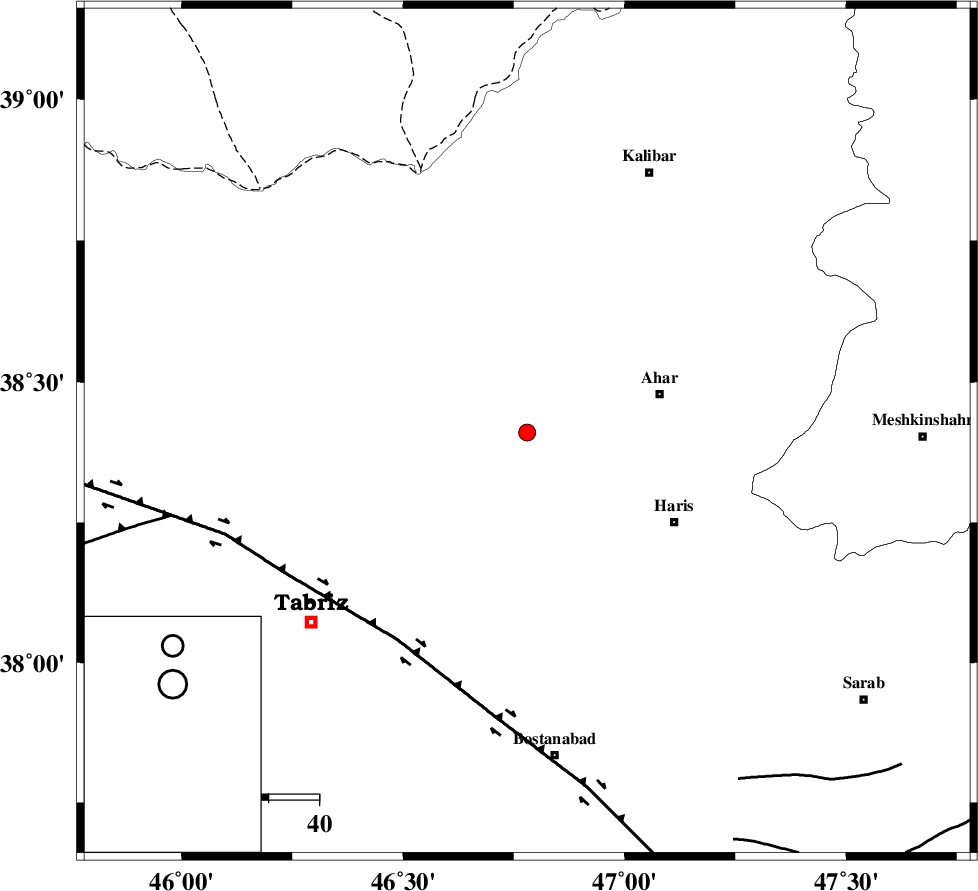

| Location | Lat:38.41 Lon: 46.78 |
| Region | Azarbaijan Sharghi Province, 27 km West of Ahar |
Nearest Cities |
|
| 15 km East of Varzagan, Azarbaijan Sharghi Province | |
| 19 km North West of Nikcheh, Azarbaijan Sharghi Province | |
| 19 km South of Tokhmdel, Azarbaijan Sharghi Province | |
| 19 km North East of Sarand, Azarbaijan Sharghi Province | |
| 21 km North of Bilverdi, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 48 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 72 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 80 km | |
| Number of Phases | 4 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >4.7 km |
| Error in Longitude | 2.4 km |
| Error in Depth | 6.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 85605 | IIEES | GRMI | E | 106.8 | 0.28 | 2012-08-19 10:52:31 | 2012-08-19 03:39:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-08-19 10:52:16 | 0.02 | y | 107 | 65 | |||
| IIEES | MAKU | Z | Pn | E | 2012-08-19 10:52:32 | 0.07 | y | 210 | 301 | |||
| IIEES | MAKU | E | Sg | E | 2012-08-19 10:52:58 | -0.05 | y | 210 | 301 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-08-19 10:52:38 | -0.05 | y | 256 | 138 | |||
