Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2012-08-20 13:47:33.3 |
| Date & Time (Local) | 1391/5/30 18:17:33.3 |

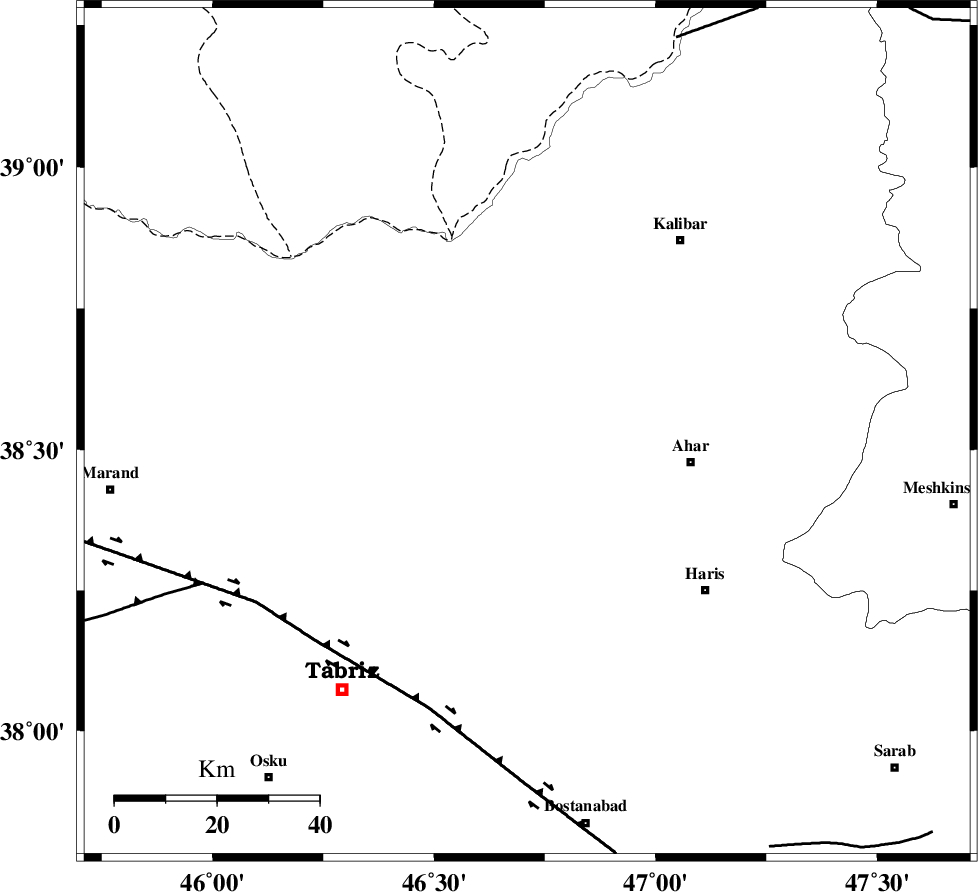

| Location | Lat:38.53 Lon: 46.71 |
| Region | Azarbaijan Sharghi Province, 33 km West of Ahar |
Nearest Cities |
|
| 9 km North of Varzagan, Azarbaijan Sharghi Province | |
| 11 km West of Tokhmdel, Azarbaijan Sharghi Province | |
| 12 km of Bekrabad, Azarbaijan Sharghi Province | |
| 12 km East of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 21 km West of Azghan, Azarbaijan Sharghi Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 58 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 70 km | |
| DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 83 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >3.8 km |
| Error in Longitude | 1.5 km |
| Error in Depth | 5.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 85624 | IIEES | GRMI | E | 305.4 | 0.19 | 2012-08-20 13:48:06 | 2012-08-20 02:11:00 | n |
| 85625 | IIEES | GRMI | N | 222.2 | 0.16 | 2012-08-20 13:48:08 | 2012-08-20 02:11:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-08-20 13:47:51 | -0.1 | y | 108 | 73 | |||
| IIEES | GRMI | N | Sg | E | 2012-08-20 13:48:05 | 0.06 | y | 108 | 73 | |||
| IIEES | MAKU | Z | Pn | E | 2012-08-20 13:48:05 | -0.03 | y | 198 | 298 | |||
| IIEES | MAKU | N | Sg | E | 2012-08-20 13:48:29 | 0.03 | y | 198 | 298 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-08-20 13:48:14 | 0.03 | y | 270 | 139 | |||
