Event Specification
Magnitude |
2.5 |
| Date & Time (UTC) | 2012-08-21 11:58:37.8 |
| Date & Time (Local) | 1391/5/31 16:28:37.8 |

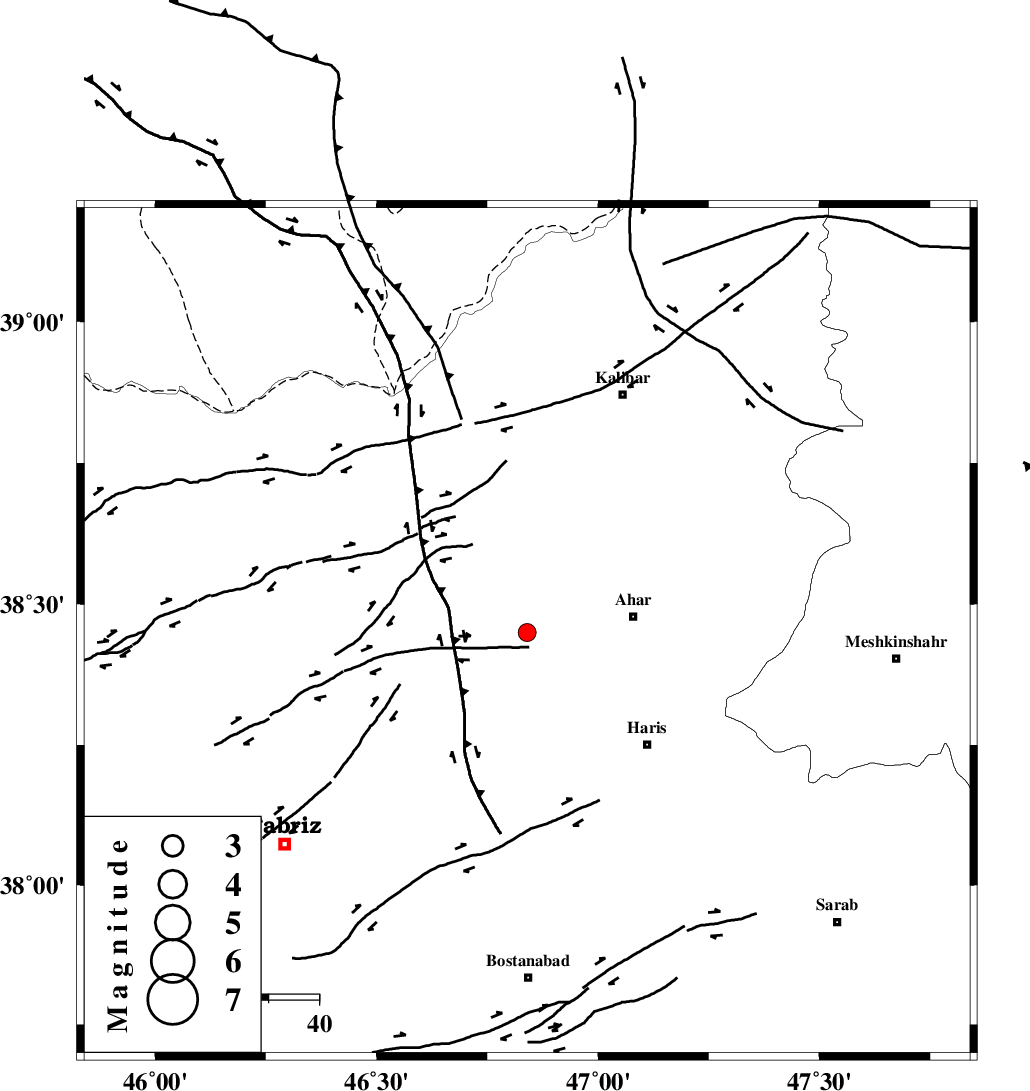

| Location | Lat:38.45 Lon: 46.84 |
| Region | Azarbaijan Sharghi Province, 21 km West of Ahar |
Nearest Cities |
|
| 14 km South of Tokhmdel, Azarbaijan Sharghi Province | |
| 17 km North West of Khuniq, Azarbaijan Sharghi Province | |
| 17 km South West of Azghan, Azarbaijan Sharghi Province | |
| 18 km North West of Nikcheh, Azarbaijan Sharghi Province | |
| 18 km East of Varzagan, Azarbaijan Sharghi Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 55 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 78 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 82 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >4.2 km |
| Error in Longitude | 1.7 km |
| Error in Depth | 6.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 85650 | IIEES | GRMI | E | 219 | 0.16 | 2012-08-21 11:59:08 | 2012-08-21 12:29:00 | n |
| 85651 | IIEES | GRMI | N | 124.2 | 0.2 | 2012-08-21 11:59:08 | 2012-08-21 12:29:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-08-21 11:58:55 | 0.18 | y | 100 | 66 | |||
| IIEES | GRMI | N | Sg | E | 2012-08-21 11:59:07 | -0.11 | y | 100 | 66 | |||
| IIEES | MAKU | Z | Pn | E | 2012-08-21 11:59:11 | -0.1 | y | 212 | 299 | |||
| IIEES | MAKU | N | Sg | E | 2012-08-21 11:59:38 | 0.04 | y | 212 | 299 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-08-21 11:59:17 | -0.01 | y | 256 | 140 | |||
