Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2012-08-25 07:46:20.6 |
| Date & Time (Local) | 1391/6/4 12:16:20.6 |

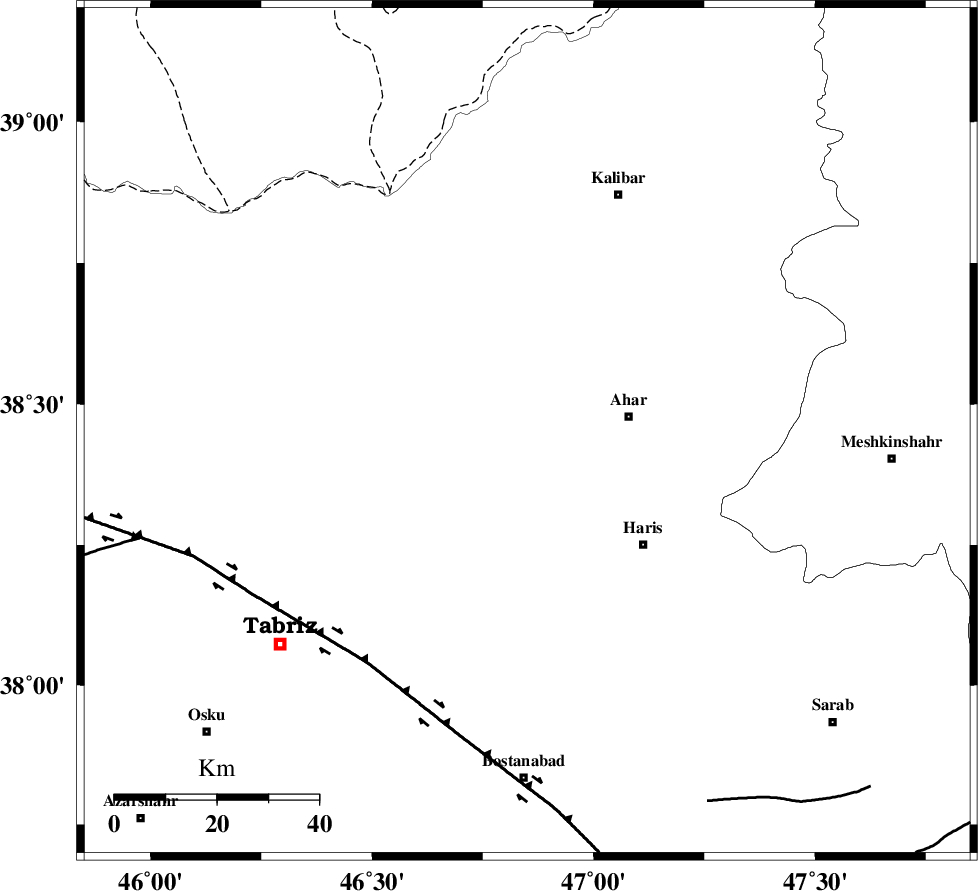

| Location | Lat:38.45 Lon: 46.85 |
| Region | Azarbaijan Sharghi Province, 20 km West of Ahar |
Nearest Cities |
|
| 14 km South of Tokhmdel, Azarbaijan Sharghi Province | |
| 16 km North West of Khuniq, Azarbaijan Sharghi Province | |
| 17 km South of Azghan, Azarbaijan Sharghi Province | |
| 18 km North of Nikcheh, Azarbaijan Sharghi Province | |
| 19 km East of Varzagan, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 55 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 79 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 81 km | |
| Number of Phases | 4 |
| RMS | 0.2 |
| Number of Stations | 3 |
| Error in Latitude | >7.4 km |
| Error in Longitude | 3.7 km |
| Error in Depth | 9.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 85769 | IIEES | GRMI | E | 484.2 | 0.19 | 2012-08-25 07:46:51 | 2012-08-25 07:55:00 | n |
| 85770 | IIEES | GRMI | N | 503.3 | 0.26 | 2012-08-25 07:46:52 | 2012-08-25 07:55:00 | n |
| 85771 | IIEES | MAKU | E | 114.9 | 0.36 | 2012-08-25 07:47:22 | 2012-08-25 07:55:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-08-25 07:46:37 | 0 | y | 99.1 | 66 | |||
| IIEES | MAKU | Z | Pn | E | 2012-08-25 07:46:55 | 0.32 | y | 213 | 299 | |||
| IIEES | MAKU | N | Sg | E | 2012-08-25 07:47:21 | -0.19 | y | 213 | 299 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-08-25 07:47:00 | -0.14 | y | 255 | 140 | |||
