Event Specification
Magnitude |
3.8 |
| Date & Time (UTC) | 2012-09-05 09:33:46.7 |
| Date & Time (Local) | 1391/6/15 14:03:46.7 |
| Location | Lat:38.52 Lon: 46.73 |
| Region | Azarbaijan Sharghi Province, 31 km West of Ahar |
Nearest Cities |
|
| 9 km North of Varzagan, Azarbaijan Sharghi Province | |
| 10 km of Tokhmdel, Azarbaijan Sharghi Province | |
| 12 km South of Bekrabad, Azarbaijan Sharghi Province | |
| 14 km East of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 20 km West of Azghan, Azarbaijan Sharghi Province | |
| Depth | 18 km |
| Agency | |

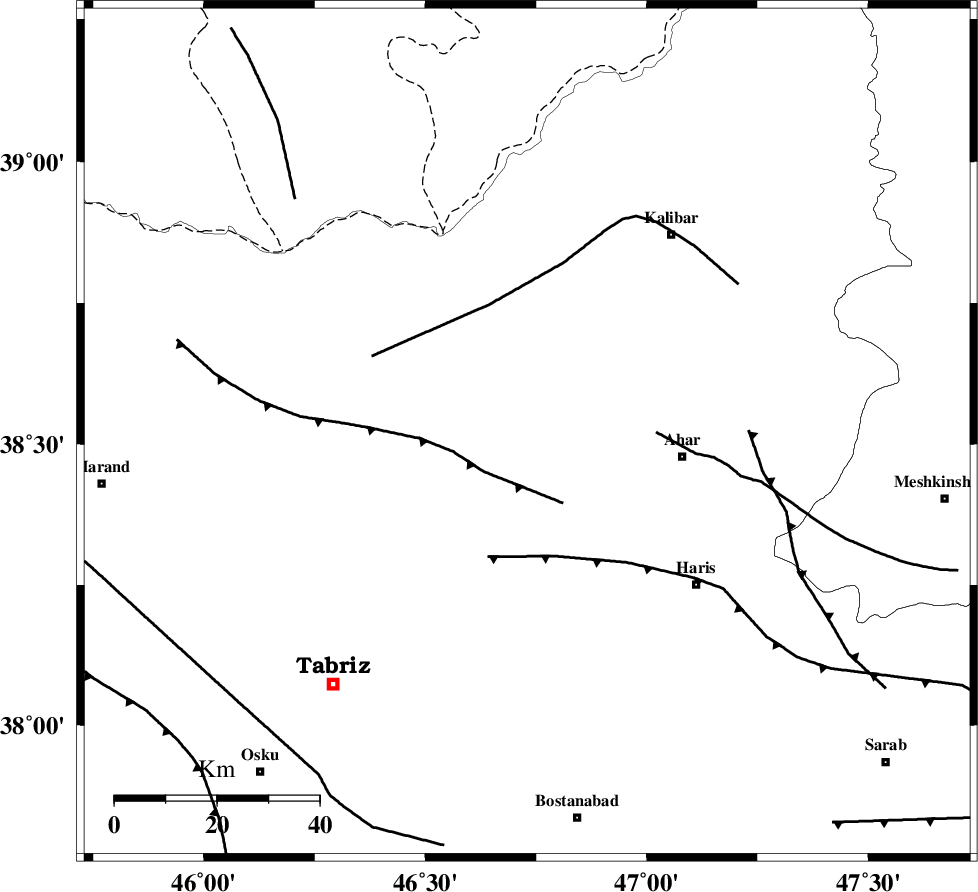

Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 57 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 71 km | |
| DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 83 km | |
| Number of Phases | 4 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >6.1 km |
| Error in Longitude | 3.1 km |
| Error in Depth | 6.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 85969 | IIEES | MAKU | N | 924.8 | 0.43 | 2012-09-05 09:34:45 | 2012-09-05 09:51:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-09-05 09:34:04 | -0.06 | y | 106 | 72 | |||
| IIEES | MAKU | Z | Pn | E | 2012-09-05 09:34:18 | -0.16 | y | 200 | 298 | |||
| IIEES | MAKU | E | Sg | E | 2012-09-05 09:34:43 | 0.11 | y | 200 | 298 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-09-05 09:34:27 | 0.11 | y | 268 | 139 | |||
