Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2012-11-07 06:44:37.3 |
| Date & Time (Local) | 1391/8/17 10:14:37.3 |

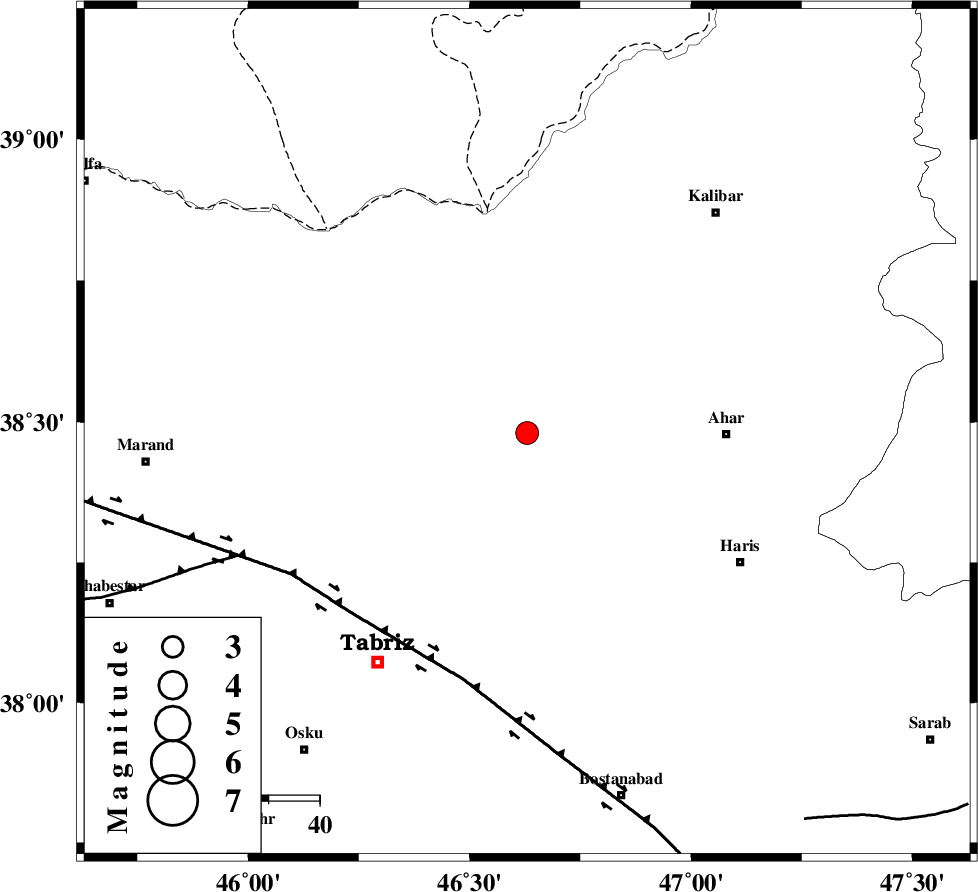

| Location | Lat:38.48 Lon: 46.63 |
| Region | Azarbaijan Sharghi Province, 40 km West of Ahar |
Nearest Cities |
|
| 0 km of Varzagan, Azarbaijan Sharghi Province | |
| 10 km of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 20 km West of Tokhmdel, Azarbaijan Sharghi Province | |
| 20 km South West of Bekrabad, Azarbaijan Sharghi Province | |
| 21 km North of Sarand, Azarbaijan Sharghi Province | |
| Depth | 46 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 50 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 62 km | |
| DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 91 km | |
| Number of Phases | 5 |
| RMS | 0.2 |
| Number of Stations | 3 |
| Error in Latitude | >3.7 km |
| Error in Longitude | 3.3 km |
| Error in Depth | 5.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 86868 | IIEES | GRMI | N | 439.9 | 0.17 | 2012-11-07 06:45:14 | 2012-11-07 07:58:00 | n |
| 86869 | IIEES | GRMI | E | 543.1 | 0.36 | 2012-11-07 06:45:15 | 2012-11-07 07:58:00 | n |
| 86870 | IIEES | MAKU | E | 208.5 | 0.5 | 2012-11-07 06:45:36 | 2012-11-07 07:58:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-11-07 06:44:57 | 0.03 | y | 116 | 71 | |||
| IIEES | MAKU | Z | Pg | E | 2012-11-07 06:45:08 | -0.32 | y | 194 | 301 | |||
| IIEES | MAKU | N | Sg | E | 2012-11-07 06:45:32 | 0.26 | y | 194 | 301 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-11-07 06:45:15 | -0.01 | y | 271 | 137 | |||
| IIEES | ZNJK | N | Sg | E | 2012-11-07 06:45:52 | 0.05 | y | 271 | 137 | |||
