Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2012-11-07 11:11:31.6 |
| Date & Time (Local) | 1391/8/17 14:41:31.6 |

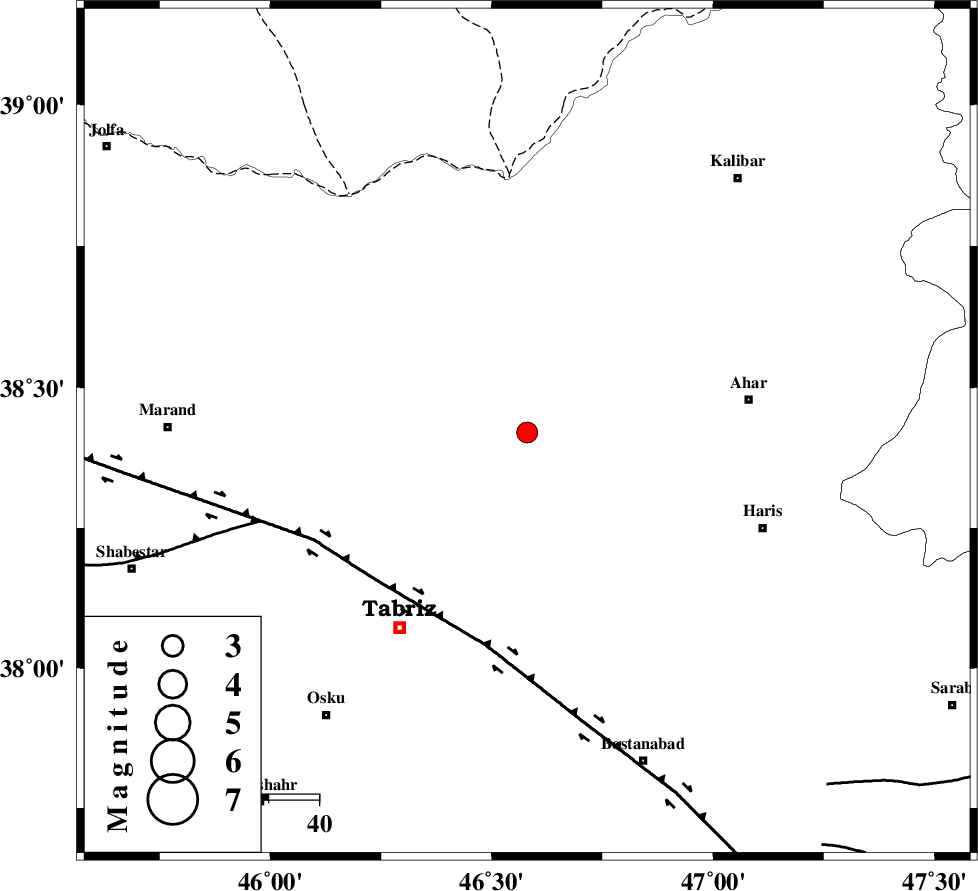

| Location | Lat:38.42 Lon: 46.58 |
| Region | Azarbaijan Sharghi Province, 44 km West of Ahar |
Nearest Cities |
|
| 8 km of Varzagan, Azarbaijan Sharghi Province | |
| 14 km North of Sarand, Azarbaijan Sharghi Province | |
| 16 km South of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 25 km North East of Yangi esperan, Azarbaijan Sharghi Province | |
| 27 km South West of Tokhmdel, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 42 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 55 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 91 km | |
| Number of Phases | 5 |
| RMS | 0.2 |
| Number of Stations | 3 |
| Error in Latitude | >3.3 km |
| Error in Longitude | 3 km |
| Error in Depth | 6.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 86889 | IIEES | GRMI | N | 227.8 | 0.14 | 2012-11-07 11:12:09 | 2012-11-07 10:55:00 | n |
| 86890 | IIEES | GRMI | E | 320.8 | 0.19 | 2012-11-07 11:12:09 | 2012-11-07 10:55:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-11-07 11:11:52 | -0.02 | y | 122 | 69 | |||
| IIEES | MAKU | Z | Pg | E | 2012-11-07 11:12:03 | -0.12 | y | 195 | 303 | |||
| IIEES | MAKU | E | Sg | E | 2012-11-07 11:12:27 | 0.02 | y | 195 | 303 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-11-07 11:12:13 | 0.32 | y | 269 | 136 | |||
| IIEES | ZNJK | E | Sg | E | 2012-11-07 11:12:47 | -0.19 | y | 269 | 136 | |||
