Event Specification
Magnitude |
2.6 |
| Date & Time (UTC) | 2012-11-07 12:28:37.6 |
| Date & Time (Local) | 1391/8/17 15:58:37.6 |

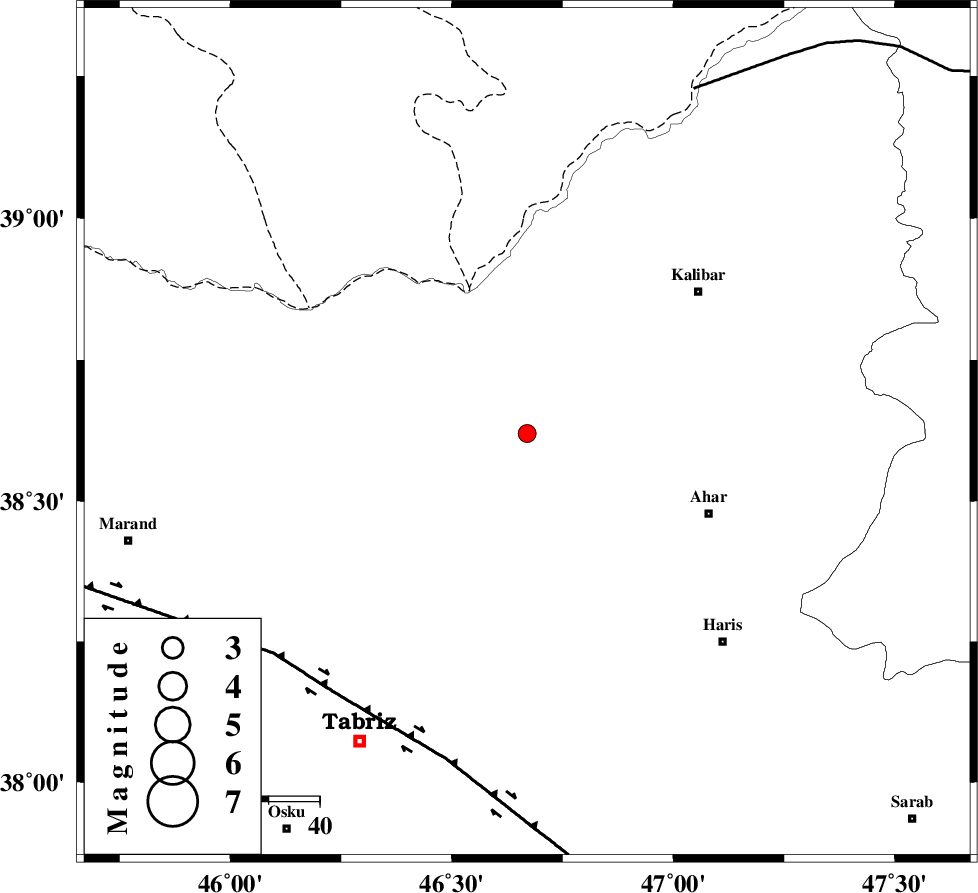

| Location | Lat:38.62 Lon: 46.67 |
| Region | Azarbaijan Sharghi Province, 39 km North-West of Ahar |
Nearest Cities |
|
| 9 km of Bekrabad, Azarbaijan Sharghi Province | |
| 11 km North of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 14 km North West of Tokhmdel, Azarbaijan Sharghi Province | |
| 16 km North of Varzagan, Azarbaijan Sharghi Province | |
| 22 km East of Joshin, Azarbaijan Sharghi Province | |
| Depth | 46 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 64 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 72 km | |
| DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 75 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >2.7 km |
| Error in Longitude | 2.5 km |
| Error in Depth | 2.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 86904 | IIEES | GRMI | E | 153.1 | 0.16 | 2012-11-07 12:29:14 | 2012-11-07 02:19:00 | n |
| 86905 | IIEES | MAKU | E | 49.1 | 0.44 | 2012-11-07 12:29:47 | 2012-11-07 02:19:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | E | 2012-11-07 12:28:56 | y | 108 | 78 | |||||
| IIEES | GRMI | Z | Pg | E | 2012-11-07 12:28:56 | -0.17 | y | 108 | 78 | |||
| IIEES | MAKU | Z | Pn | E | 2012-11-07 12:29:06 | -0.08 | y | 191 | 296 | |||
| IIEES | MAKU | E | Sg | E | 2012-11-07 12:29:31 | 0.11 | y | 191 | 296 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-11-07 12:29:17 | 0.05 | y | 280 | 140 | |||
| IIEES | ZNJK | E | Sg | E | 2012-11-07 12:29:55 | 0.09 | y | 280 | 140 | |||
