Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2012-11-07 13:17:18.9 |
| Date & Time (Local) | 1391/8/17 16:47:18.9 |

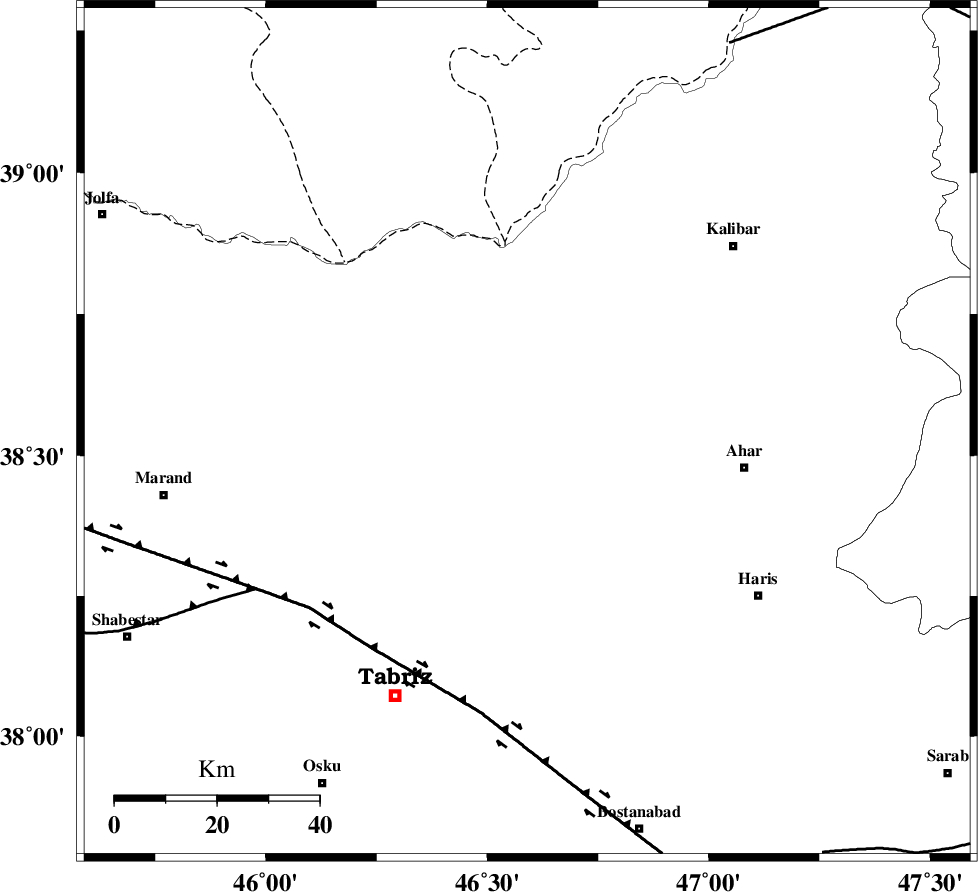

| Location | Lat:38.54 Lon: 46.59 |
| Region | Azarbaijan Sharghi Province, 43 km West of Ahar |
Nearest Cities |
|
| 3 km of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 7 km North of Varzagan, Azarbaijan Sharghi Province | |
| 18 km West of Bekrabad, Azarbaijan Sharghi Province | |
| 19 km South East of Joshin, Azarbaijan Sharghi Province | |
| 20 km West of Tokhmdel, Azarbaijan Sharghi Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 52 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 62 km | |
| DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 86 km | |
| Number of Phases | 4 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >5.2 km |
| Error in Longitude | 2.7 km |
| Error in Depth | 5.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 86906 | IIEES | GRMI | E | 283.1 | 0.2 | 2012-11-07 13:17:55 | 2012-11-07 02:19:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-11-07 13:17:38 | 0.01 | y | 117 | 75 | |||
| IIEES | MAKU | Z | Pn | E | 2012-11-07 13:17:49 | -0.07 | y | 189 | 299 | |||
| IIEES | MAKU | N | Sg | E | 2012-11-07 13:18:12 | 0.05 | y | 189 | 299 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-11-07 13:18:00 | 0.02 | y | 278 | 138 | |||
