Event Specification
Magnitude |
2.6 |
| Date & Time (UTC) | 2012-11-07 13:36:01.5 |
| Date & Time (Local) | 1391/8/17 17:06:01.5 |

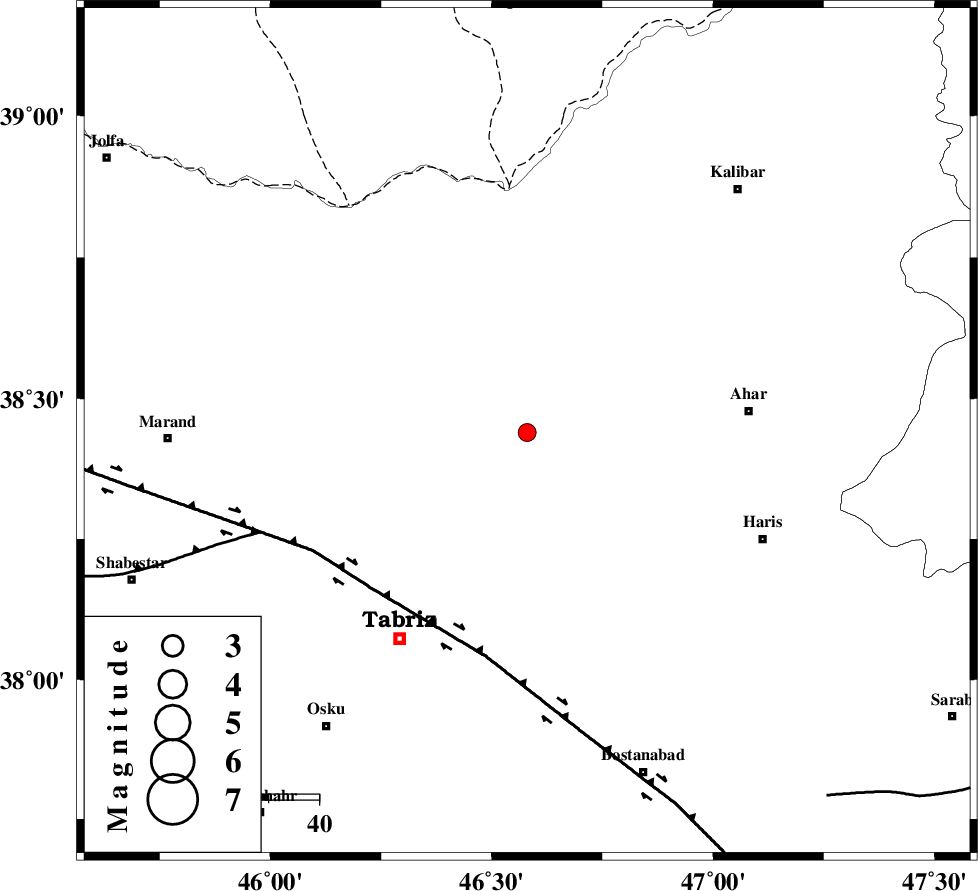

| Location | Lat:38.44 Lon: 46.58 |
| Region | Azarbaijan Sharghi Province, 44 km West of Ahar |
Nearest Cities |
|
| 7 km of Varzagan, Azarbaijan Sharghi Province | |
| 14 km South of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 16 km North of Sarand, Azarbaijan Sharghi Province | |
| 26 km South West of Tokhmdel, Azarbaijan Sharghi Province | |
| 27 km South East of Joshin, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 43 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 56 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 93 km | |
| Number of Phases | 4 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >4.9 km |
| Error in Longitude | 2.6 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 86907 | IIEES | GRMI | E | 146.2 | 0.44 | 2012-11-07 13:36:44 | 2012-11-07 02:19:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-11-07 13:36:22 | 0 | y | 122 | 70 | |||
| IIEES | MAKU | Z | Pn | E | 2012-11-07 13:36:33 | 0.01 | y | 193 | 302 | |||
| IIEES | MAKU | E | Sg | E | 2012-11-07 13:36:56 | 0 | y | 193 | 302 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-11-07 13:36:43 | 0 | y | 271 | 136 | |||
