Event Specification
Magnitude |
2.1 |
| Date & Time (UTC) | 2012-11-09 02:47:40.7 |
| Date & Time (Local) | 1391/8/19 06:17:40.7 |

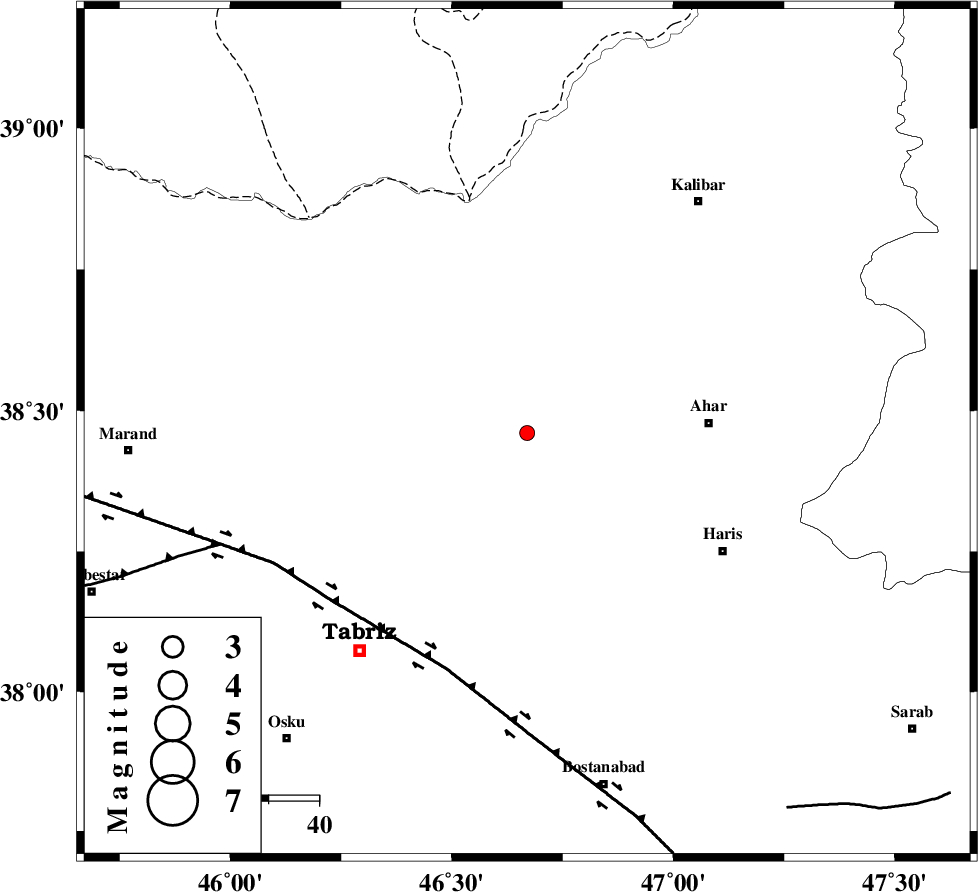

| Location | Lat:38.46 Lon: 46.67 |
| Region | Azarbaijan Sharghi Province, 36 km West of Ahar |
Nearest Cities |
|
| 4 km of Varzagan, Azarbaijan Sharghi Province | |
| 14 km South of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 18 km South West of Tokhmdel, Azarbaijan Sharghi Province | |
| 19 km North of Sarand, Azarbaijan Sharghi Province | |
| 21 km South of Bekrabad, Azarbaijan Sharghi Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 49 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 64 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 90 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >4.3 km |
| Error in Longitude | 1.8 km |
| Error in Depth | 6.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 86935 | IIEES | GRMI | E | 47.2 | 0.12 | 2012-11-09 02:48:16 | 2012-11-09 02:04:00 | n |
| 86936 | IIEES | GRMI | N | 50.2 | 0.16 | 2012-11-09 02:48:17 | 2012-11-09 02:04:00 | n |
| 86937 | IIEES | MAKU | N | 16.7 | 0.52 | 2012-11-09 02:48:38 | 2012-11-09 02:04:00 | n |
| 86938 | IIEES | MAKU | E | 17.7 | 0.44 | 2012-11-09 02:48:39 | 2012-11-09 02:04:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-11-09 02:47:59 | -0.18 | y | 113 | 70 | |||
| IIEES | GRMI | N | Sg | E | 2012-11-09 02:48:13 | 0.11 | y | 113 | 70 | |||
| IIEES | MAKU | Z | Pn | E | 2012-11-09 02:48:13 | -0.06 | y | 199 | 301 | |||
| IIEES | MAKU | E | Sg | E | 2012-11-09 02:48:37 | 0.06 | y | 199 | 301 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-11-09 02:48:21 | 0.07 | y | 266 | 137 | |||
