Event Specification
Magnitude |
2.7 |
| Date & Time (UTC) | 2012-11-09 16:16:08.8 |
| Date & Time (Local) | 1391/8/19 19:46:08.8 |
| Location | Lat:38.52 Lon: 46.62 |
| Region | Azarbaijan Sharghi Province, 41 km West of Ahar |
Nearest Cities |
|
| 4 km North of Varzagan, Azarbaijan Sharghi Province | |
| 6 km of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 18 km South West of Bekrabad, Azarbaijan Sharghi Province | |
| 18 km West of Tokhmdel, Azarbaijan Sharghi Province | |
| 22 km South East of Joshin, Azarbaijan Sharghi Province | |
| Depth | 18 km |
| Agency | |

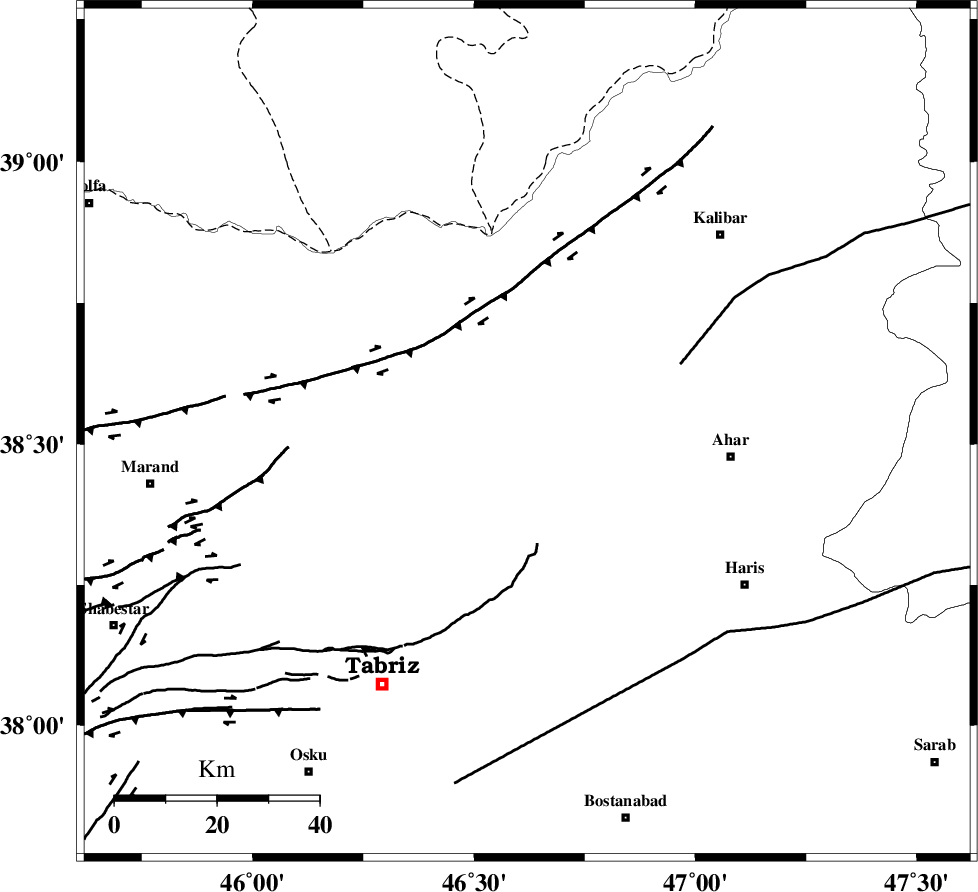

Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 52 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 63 km | |
| DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 87 km | |
| Number of Phases | 4 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >5.5 km |
| Error in Longitude | 2.8 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 86944 | IIEES | GRMI | E | 191.6 | 0.24 | 2012-11-09 16:16:45 | 2012-11-09 03:29:00 | n |
| 86945 | IIEES | GRMI | N | 118 | 0.28 | 2012-11-09 16:16:45 | 2012-11-09 03:29:00 | n |
| 86946 | IIEES | MAKU | E | 81.3 | 0.4 | 2012-11-09 16:17:06 | 2012-11-09 03:29:00 | n |
| 86947 | IIEES | MAKU | N | 78.4 | 0.32 | 2012-11-09 16:17:10 | 2012-11-09 03:29:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-11-09 16:16:28 | -0.04 | y | 116 | 73 | |||
| IIEES | MAKU | Z | Pn | E | 2012-11-09 16:16:39 | -0.09 | y | 191 | 300 | |||
| IIEES | MAKU | N | Sg | E | 2012-11-09 16:17:03 | 0.06 | y | 191 | 300 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-11-09 16:16:50 | 0.07 | y | 275 | 138 | |||
