Event Specification
Magnitude |
2.5 |
| Date & Time (UTC) | 2012-11-10 02:20:44.1 |
| Date & Time (Local) | 1391/8/20 05:50:44.1 |

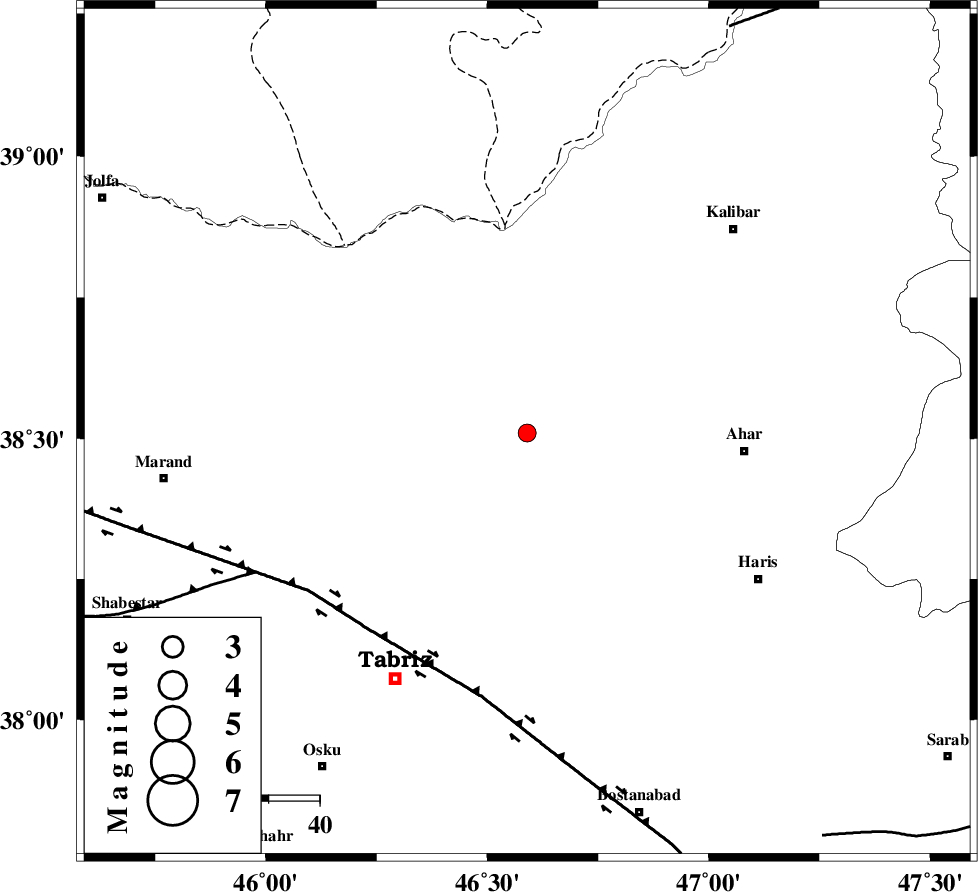

| Location | Lat:38.51 Lon: 46.59 |
| Region | Azarbaijan Sharghi Province, 43 km West of Ahar |
Nearest Cities |
|
| 5 km North of Varzagan, Azarbaijan Sharghi Province | |
| 6 km of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 20 km South West of Bekrabad, Azarbaijan Sharghi Province | |
| 21 km South East of Joshin, Azarbaijan Sharghi Province | |
| 21 km West of Tokhmdel, Azarbaijan Sharghi Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 50 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 60 km | |
| DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 89 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >2.4 km |
| Error in Longitude | 2.3 km |
| Error in Depth | 3.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 86948 | IIEES | GRMI | N | 102.7 | 0.16 | 2012-11-10 02:21:20 | 2012-11-10 03:08:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-11-10 02:21:04 | 0 | y | 118 | 73 | |||
| IIEES | MAKU | Z | Pn | E | 2012-11-10 02:21:15 | -0.14 | y | 190 | 300 | |||
| IIEES | MAKU | N | Sg | E | 2012-11-10 02:21:38 | 0.06 | y | 190 | 300 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-11-10 02:21:26 | 0.15 | y | 276 | 137 | |||
| IIEES | ZNJK | E | Sg | E | 2012-11-10 02:22:01 | -0.07 | y | 276 | 137 | |||
