Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2012-11-11 04:02:26.0 |
| Date & Time (Local) | 1391/8/21 07:32:26.0 |

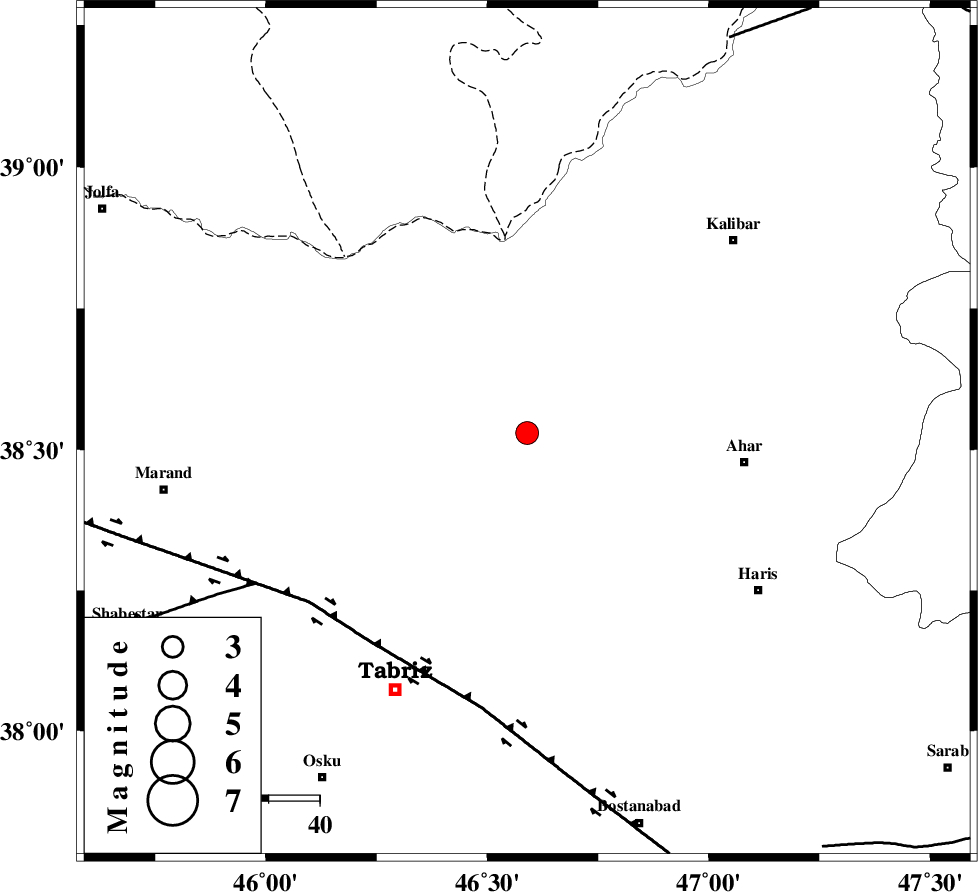

| Location | Lat:38.53 Lon: 46.59 |
| Region | Azarbaijan Sharghi Province, 43 km West of Ahar |
Nearest Cities |
|
| 4 km of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 6 km North of Varzagan, Azarbaijan Sharghi Province | |
| 19 km West of Bekrabad, Azarbaijan Sharghi Province | |
| 19 km South East of Joshin, Azarbaijan Sharghi Province | |
| 21 km West of Tokhmdel, Azarbaijan Sharghi Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 52 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 61 km | |
| DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 87 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >4.2 km |
| Error in Longitude | 1.7 km |
| Error in Depth | 5.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 86966 | IIEES | GRMI | N | 498.7 | 0.44 | 2012-11-11 04:03:06 | 2012-11-11 03:16:00 | n |
| 86967 | IIEES | ZNJK | N | 115.4 | 0.48 | 2012-11-11 04:03:51 | 2012-11-11 03:16:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-11-11 04:02:45 | -0.14 | y | 118 | 74 | |||
| IIEES | GRMI | N | Sg | E | 2012-11-11 04:03:00 | 0.09 | y | 118 | 74 | |||
| IIEES | MAKU | Z | Pn | E | 2012-11-11 04:02:57 | -0.05 | y | 189 | 300 | |||
| IIEES | MAKU | N | Sg | E | 2012-11-11 04:03:20 | 0.05 | y | 189 | 300 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-11-11 04:03:08 | 0.05 | y | 277 | 137 | |||
