Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2012-11-11 12:49:25.0 |
| Date & Time (Local) | 1391/8/21 16:19:25.0 |

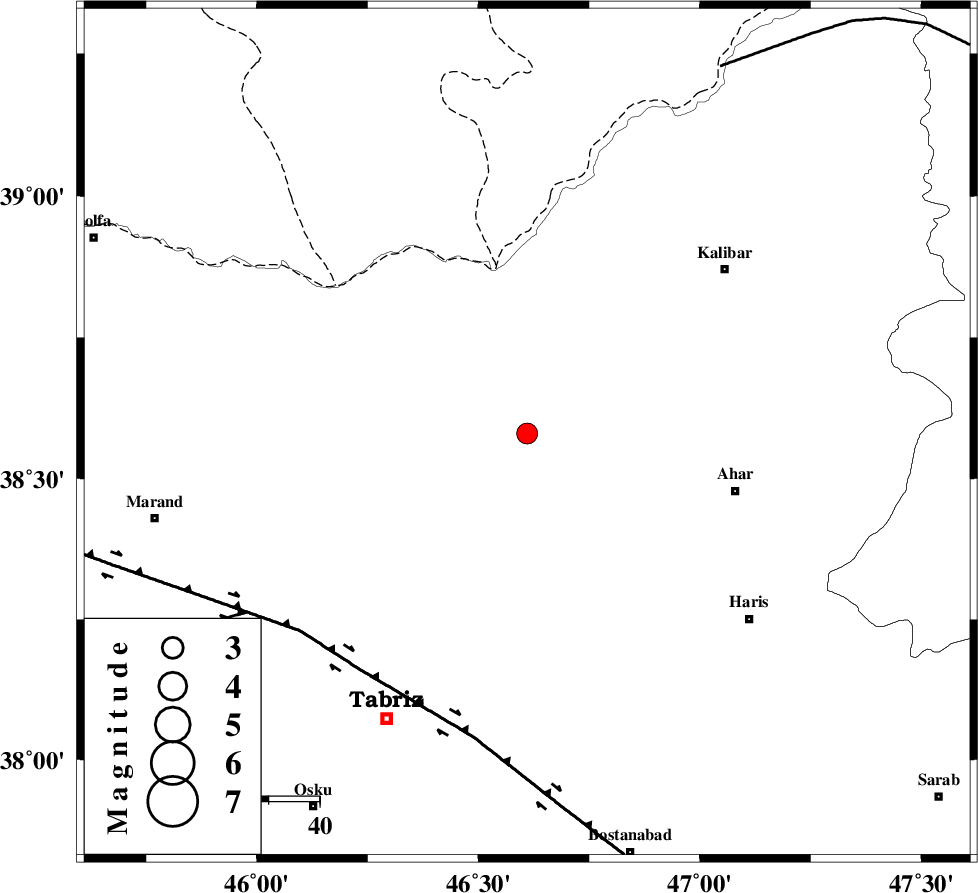

| Location | Lat:38.58 Lon: 46.61 |
| Region | Azarbaijan Sharghi Province, 42 km North-West of Ahar |
Nearest Cities |
|
| 4 km North of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 11 km North of Varzagan, Azarbaijan Sharghi Province | |
| 15 km West of Bekrabad, Azarbaijan Sharghi Province | |
| 18 km East of Joshin, Azarbaijan Sharghi Province | |
| 18 km North West of Tokhmdel, Azarbaijan Sharghi Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 57 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 65 km | |
| DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 81 km | |
| Number of Phases | 4 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >5.4 km |
| Error in Longitude | 2.7 km |
| Error in Depth | 5.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 86968 | IIEES | MAKU | E | 121 | 0.4 | 2012-11-11 12:50:22 | 2012-11-11 12:11:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-11-11 12:49:44 | 0.01 | y | 114 | 77 | |||
| IIEES | MAKU | Z | Pn | E | 2012-11-11 12:49:55 | -0.1 | y | 188 | 298 | |||
| IIEES | MAKU | E | Sg | E | 2012-11-11 12:50:18 | 0.06 | y | 188 | 298 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-11-11 12:50:07 | 0.03 | y | 280 | 139 | |||
