Event Specification
Magnitude |
2.7 |
| Date & Time (UTC) | 2012-11-11 20:16:50.0 |
| Date & Time (Local) | 1391/8/21 23:46:50.0 |

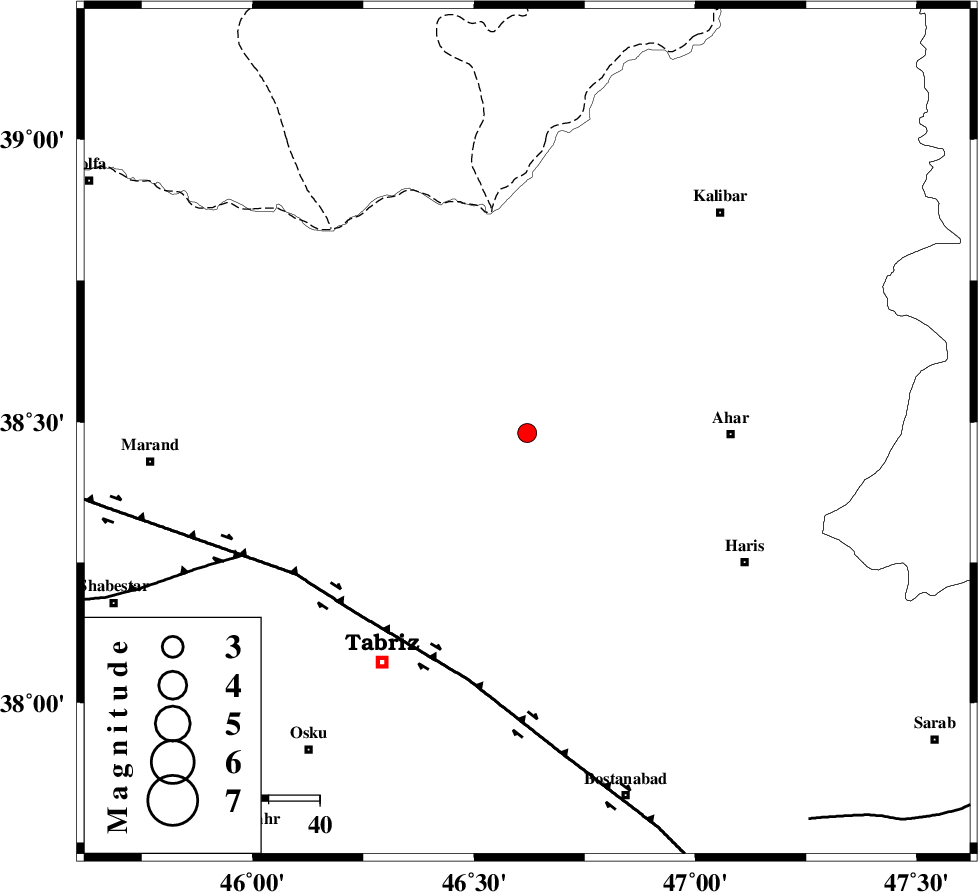

| Location | Lat:38.48 Lon: 46.62 |
| Region | Azarbaijan Sharghi Province, 40 km West of Ahar |
Nearest Cities |
|
| 1 km of Varzagan, Azarbaijan Sharghi Province | |
| 10 km of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 20 km West of Tokhmdel, Azarbaijan Sharghi Province | |
| 20 km North of Sarand, Azarbaijan Sharghi Province | |
| 21 km South West of Bekrabad, Azarbaijan Sharghi Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 49 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 61 km | |
| DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 91 km | |
| Number of Phases | 4 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >6.2 km |
| Error in Longitude | 3.3 km |
| Error in Depth | 7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 86976 | IIEES | GRMI | E | 188.2 | 0.32 | 2012-11-11 20:17:28 | 2012-11-12 02:01:00 | n |
| 86977 | IIEES | MAKU | E | 82 | 0.44 | 2012-11-11 20:17:51 | 2012-11-12 02:01:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-11-11 20:17:09 | -0.06 | y | 117 | 71 | |||
| IIEES | MAKU | Z | Pn | E | 2012-11-11 20:17:21 | -0.15 | y | 194 | 301 | |||
| IIEES | MAKU | N | Sg | E | 2012-11-11 20:17:45 | 0.1 | y | 194 | 301 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-11-11 20:17:31 | 0.11 | y | 271 | 137 | |||
