Event Specification
Magnitude |
3.3 |
| Date & Time (UTC) | 2012-11-13 16:56:04.5 |
| Date & Time (Local) | 1391/8/23 20:26:04.5 |

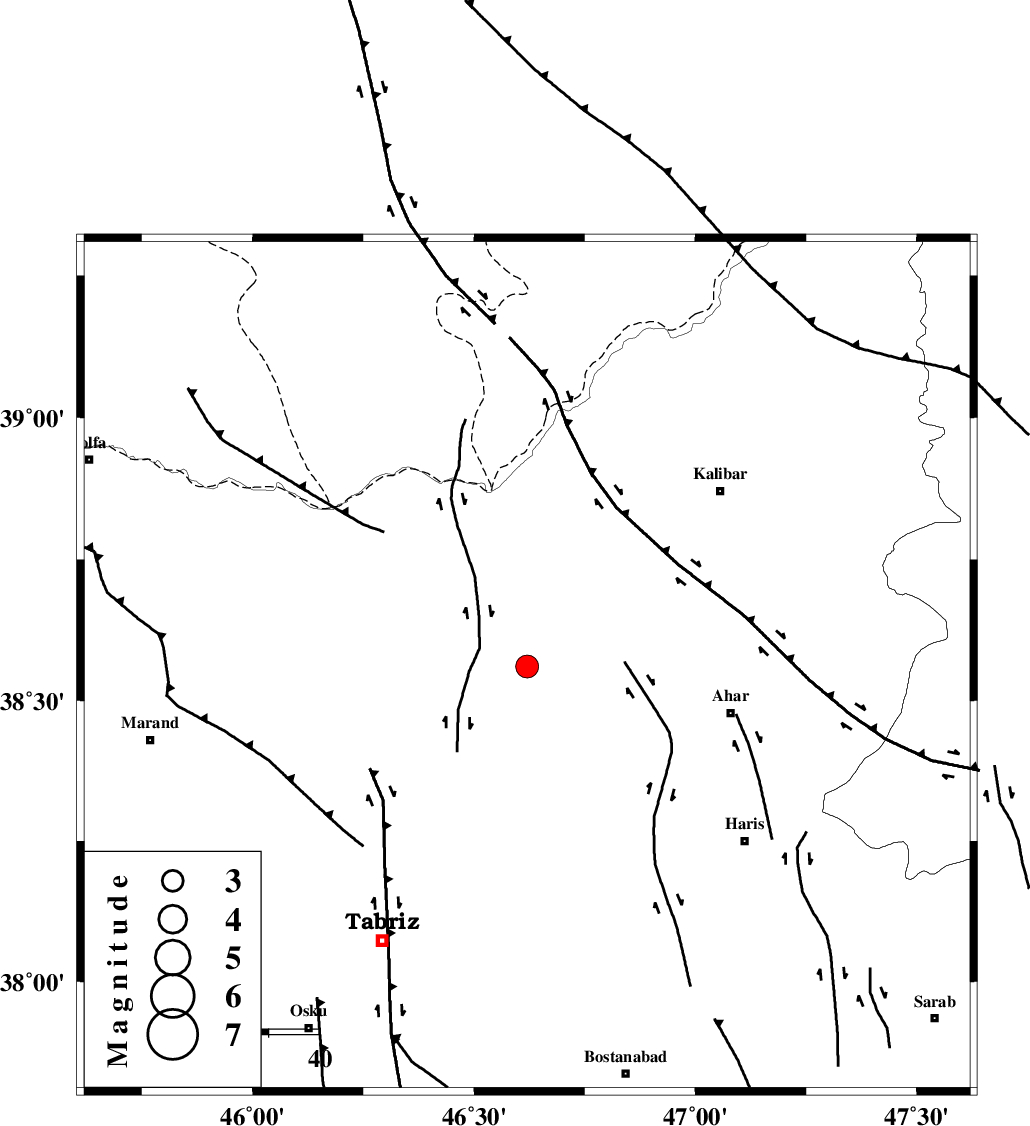

| Location | Lat:38.56 Lon: 46.62 |
| Region | Azarbaijan Sharghi Province, 41 km West of Ahar |
Nearest Cities |
|
| 4 km of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 9 km North of Varzagan, Azarbaijan Sharghi Province | |
| 15 km West of Bekrabad, Azarbaijan Sharghi Province | |
| 17 km West of Tokhmdel, Azarbaijan Sharghi Province | |
| 20 km East of Joshin, Azarbaijan Sharghi Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 56 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 65 km | |
| DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 83 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 4 |
| Error in Latitude | >3.5 km |
| Error in Longitude | 3.4 km |
| Error in Depth | 5.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 86993 | IIEES | MAKU | N | 338.3 | 0.52 | 2012-11-13 16:57:02 | 2012-11-13 04:37:00 | n |
| 86994 | IIEES | MAKU | E | 346.8 | 0.44 | 2012-11-13 16:57:04 | 2012-11-13 04:37:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-11-13 16:56:23 | 0.02 | y | 114 | 75 | |||
| IIEES | MAKU | Z | Pn | E | 2012-11-13 16:56:35 | -0.29 | y | 190 | 298 | |||
| IIEES | MAKU | N | Sg | E | 2012-11-13 16:56:58 | 0.21 | y | 190 | 298 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-11-13 16:56:46 | -0.27 | y | 278 | 138 | |||
| IIEES | ZNJK | N | Sg | E | 2012-11-13 16:57:23 | 0.12 | y | 278 | 138 | |||
| IIEES | SNGE | Z | Pn | E | 2012-11-13 16:57:00 | 0.26 | y | 390 | 170 | |||
