Event Specification
Magnitude |
2.5 |
| Date & Time (UTC) | 2012-11-16 00:14:44.5 |
| Date & Time (Local) | 1391/8/26 03:44:44.5 |

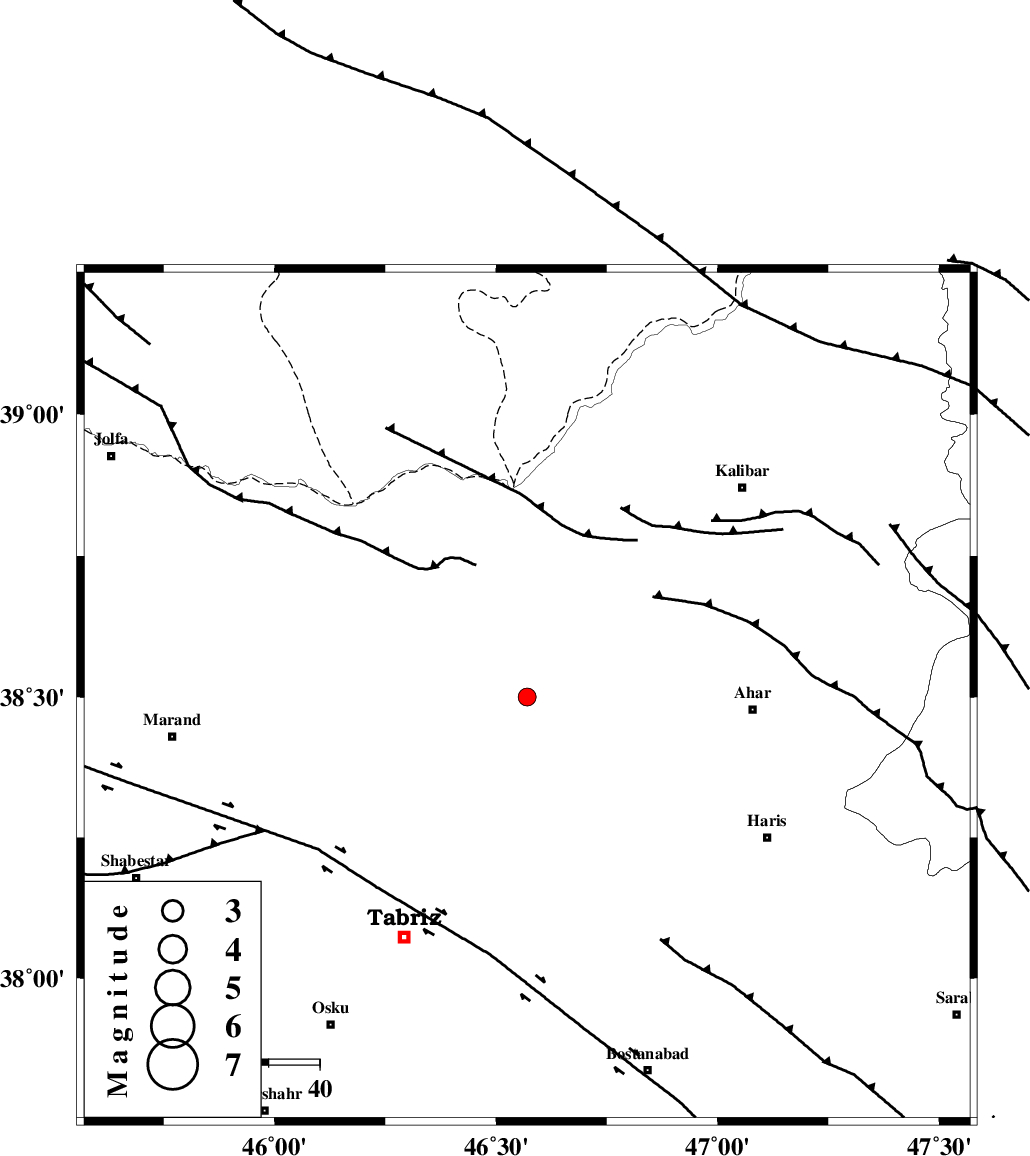

| Location | Lat:38.5 Lon: 46.57 |
| Region | Azarbaijan Sharghi Province, 44 km West of Ahar |
Nearest Cities |
|
| 6 km North of Varzagan, Azarbaijan Sharghi Province | |
| 7 km of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 21 km South East of Joshin, Azarbaijan Sharghi Province | |
| 22 km South West of Bekrabad, Azarbaijan Sharghi Province | |
| 23 km North of Sarand, Azarbaijan Sharghi Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 48 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 58 km | |
| DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 91 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >4.8 km |
| Error in Longitude | 2 km |
| Error in Depth | 6.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 87028 | IIEES | GRMI | E | 102.2 | 0.2 | 2012-11-16 00:15:21 | 2012-11-16 12:24:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-11-16 00:15:04 | -0.2 | y | 120 | 73 | |||
| IIEES | GRMI | E | Sg | E | 2012-11-16 00:15:19 | 0.13 | y | 120 | 73 | |||
| IIEES | MAKU | Z | Pn | E | 2012-11-16 00:15:15 | -0.06 | y | 189 | 301 | |||
| IIEES | MAKU | E | Sg | E | 2012-11-16 00:15:38 | 0.07 | y | 189 | 301 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-11-16 00:15:26 | 0.07 | y | 276 | 137 | |||
