Event Specification
Magnitude |
4.7 |
| Date & Time (UTC) | 2012-11-16 03:58:25.1 |
| Date & Time (Local) | 1391/8/26 07:28:25.1 |

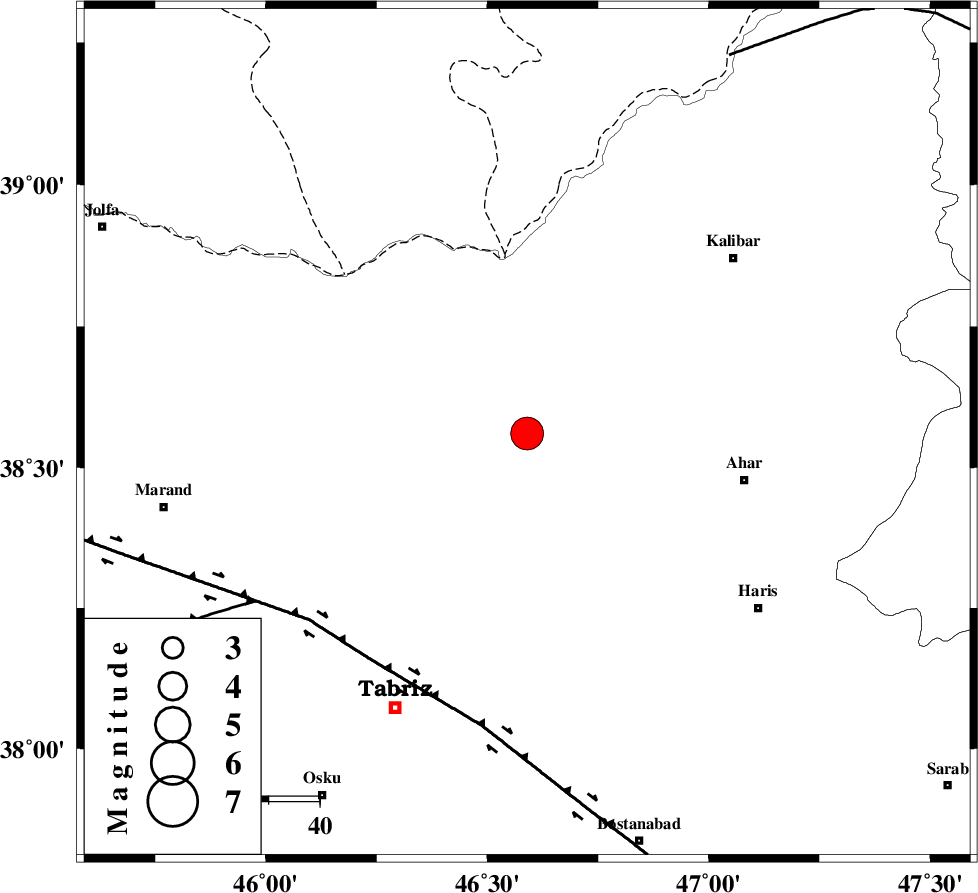

| Location | Lat:38.56 Lon: 46.59 |
| Region | Azarbaijan Sharghi Province, 44 km West of Ahar |
Nearest Cities |
|
| 2 km of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 9 km North of Varzagan, Azarbaijan Sharghi Province | |
| 17 km West of Bekrabad, Azarbaijan Sharghi Province | |
| 17 km East of Joshin, Azarbaijan Sharghi Province | |
| 20 km West of Tokhmdel, Azarbaijan Sharghi Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 54 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 63 km | |
| DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 84 km | |
| Number of Phases | 3 |
| RMS | 0 |
| Number of Stations | 4 |
| Error in Latitude | >2.8 km |
| Error in Longitude | 2 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 87035 | IIEES | BJRD | N | 47.3 | 0.48 | 2012-11-16 04:02:18 | 2012-11-16 03:28:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-11-16 03:58:44 | 0 | y | 117 | 76 | |||
| IIEES | MAKU | Z | Pg | E | 2012-11-16 03:58:55 | 0 | y | 187 | 299 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-11-16 03:59:07 | 0 | y | 280 | 138 | |||
