Event Specification
Magnitude |
2.7 |
| Date & Time (UTC) | 2012-11-16 04:42:09.7 |
| Date & Time (Local) | 1391/8/26 08:12:09.7 |

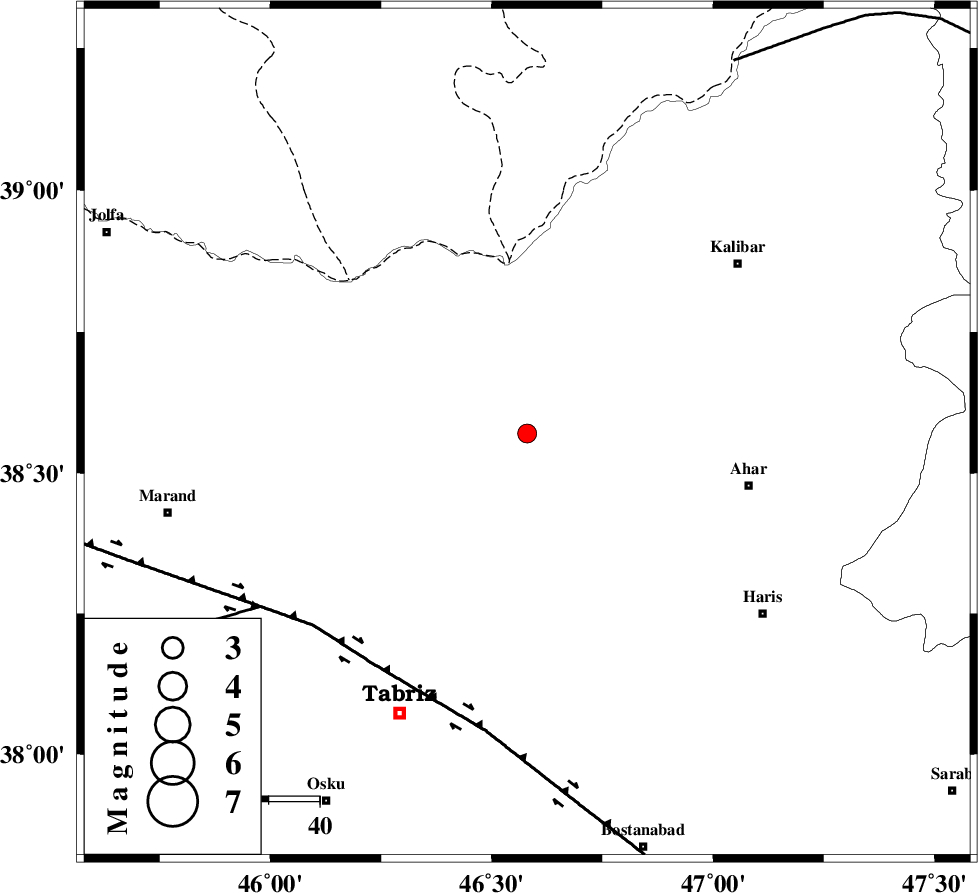

| Location | Lat:38.57 Lon: 46.58 |
| Region | Azarbaijan Sharghi Province, 45 km West of Ahar |
Nearest Cities |
|
| 1 km North of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 11 km North of Varzagan, Azarbaijan Sharghi Province | |
| 16 km East of Joshin, Azarbaijan Sharghi Province | |
| 18 km West of Bekrabad, Azarbaijan Sharghi Province | |
| 21 km West of Tokhmdel, Azarbaijan Sharghi Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 55 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 63 km | |
| DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 84 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >4.4 km |
| Error in Longitude | 1.8 km |
| Error in Depth | 5.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 87036 | IIEES | GRMI | E | 194.2 | 0.16 | 2012-11-16 04:42:47 | 2012-11-16 04:00:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-11-16 04:42:29 | -0.04 | y | 117 | 76 | |||
| IIEES | GRMI | N | Sg | E | 2012-11-16 04:42:44 | 0.03 | y | 117 | 76 | |||
| IIEES | MAKU | Z | Pn | E | 2012-11-16 04:42:40 | -0.15 | y | 186 | 299 | |||
| IIEES | MAKU | N | Sg | E | 2012-11-16 04:43:03 | 0.1 | y | 186 | 299 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-11-16 04:42:52 | 0.06 | y | 281 | 138 | |||
