Event Specification
Magnitude |
2.6 |
| Date & Time (UTC) | 2012-11-17 16:57:23.0 |
| Date & Time (Local) | 1391/8/27 20:27:23.0 |

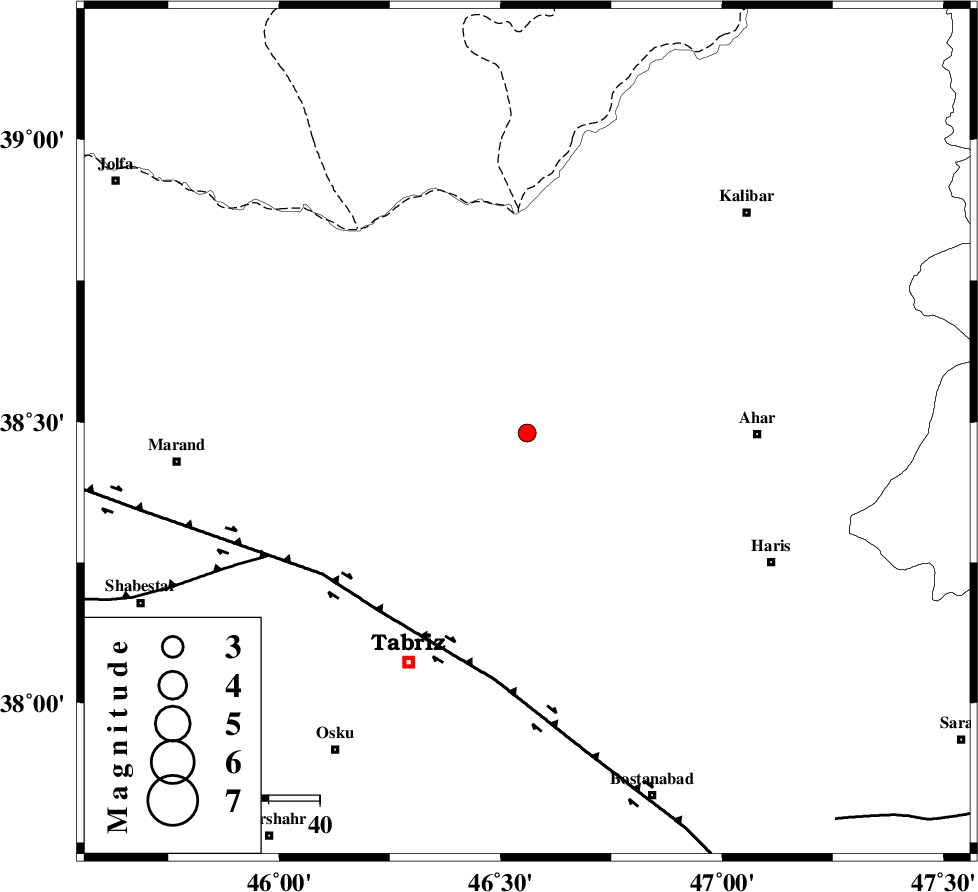

| Location | Lat:38.48 Lon: 46.56 |
| Region | Azarbaijan Sharghi Province, 45 km West of Ahar |
Nearest Cities |
|
| 6 km of Varzagan, Azarbaijan Sharghi Province | |
| 9 km of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 21 km North of Sarand, Azarbaijan Sharghi Province | |
| 22 km South East of Joshin, Azarbaijan Sharghi Province | |
| 25 km South West of Bekrabad, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 46 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 56 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 93 km | |
| Number of Phases | 5 |
| RMS | 0.2 |
| Number of Stations | 3 |
| Error in Latitude | >5.4 km |
| Error in Longitude | 2.2 km |
| Error in Depth | 8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 87072 | IIEES | GRMI | E | 156.3 | 0.16 | 2012-11-17 16:58:00 | 2012-11-17 04:45:00 | n |
| 87073 | IIEES | GRMI | N | 107.3 | 0.28 | 2012-11-17 16:58:03 | 2012-11-17 04:45:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-11-17 16:57:43 | -0.29 | y | 122 | 72 | |||
| IIEES | GRMI | N | Sg | E | 2012-11-17 16:57:58 | 0.18 | y | 122 | 72 | |||
| IIEES | MAKU | Z | Pn | E | 2012-11-17 16:57:54 | 0.03 | y | 190 | 301 | |||
| IIEES | MAKU | E | Sg | E | 2012-11-17 16:58:17 | 0.02 | y | 190 | 301 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-11-17 16:58:05 | 0.06 | y | 275 | 136 | |||
