Event Specification
Magnitude |
2.5 |
| Date & Time (UTC) | 2012-11-21 16:51:07.9 |
| Date & Time (Local) | 1391/9/1 20:21:07.9 |

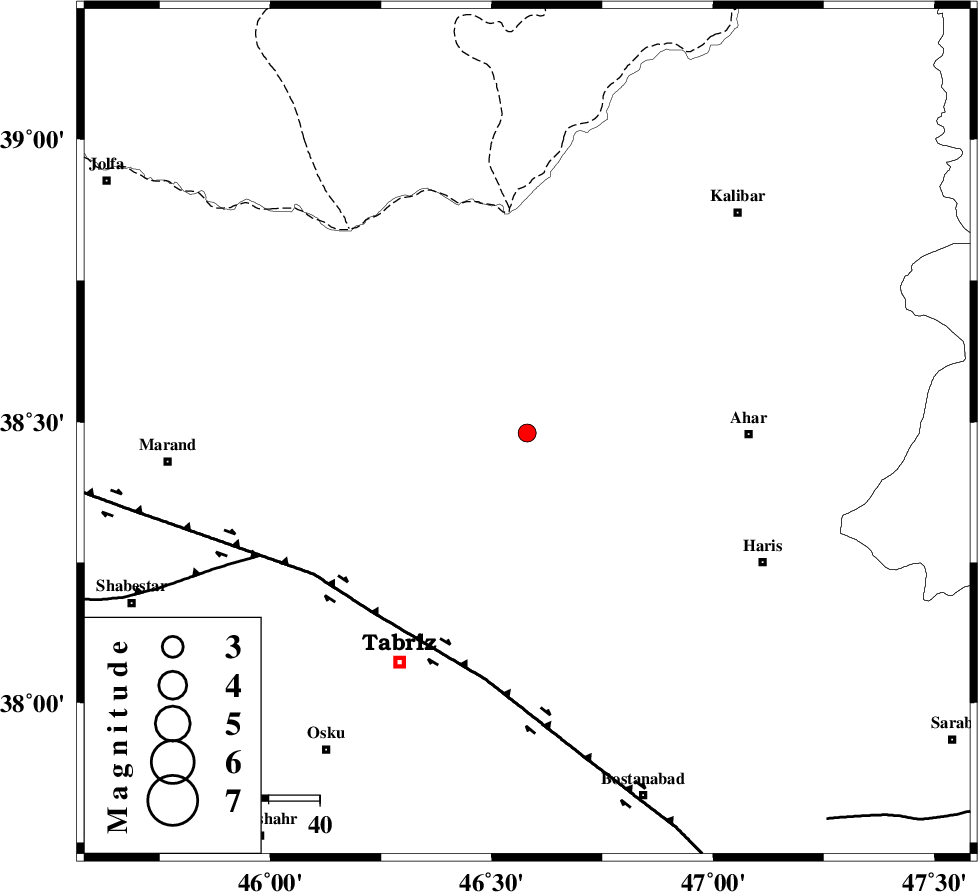

| Location | Lat:38.48 Lon: 46.58 |
| Region | Azarbaijan Sharghi Province, 44 km West of Ahar |
Nearest Cities |
|
| 5 km of Varzagan, Azarbaijan Sharghi Province | |
| 9 km of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 21 km North of Sarand, Azarbaijan Sharghi Province | |
| 23 km South East of Joshin, Azarbaijan Sharghi Province | |
| 23 km South West of Bekrabad, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 47 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 58 km | |
| DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 92 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >4.5 km |
| Error in Longitude | 1.8 km |
| Error in Depth | 6.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 87107 | IIEES | GRMI | N | 91.5 | 0.4 | 2012-11-21 16:51:46 | 2012-11-21 04:16:00 | n |
| 87108 | IIEES | MAKU | N | 49.2 | 0.4 | 2012-11-21 16:52:04 | 2012-11-21 04:16:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-11-21 16:51:28 | -0.19 | y | 121 | 72 | |||
| IIEES | GRMI | E | Sg | E | 2012-11-21 16:51:43 | 0.12 | y | 121 | 72 | |||
| IIEES | MAKU | Z | Pn | E | 2012-11-21 16:51:39 | -0.05 | y | 191 | 301 | |||
| IIEES | MAKU | E | Sg | E | 2012-11-21 16:52:02 | 0.05 | y | 191 | 301 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-11-21 16:51:49 | 0.06 | y | 274 | 136 | |||
