Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2012-11-24 14:03:16.4 |
| Date & Time (Local) | 1391/9/4 17:33:16.4 |

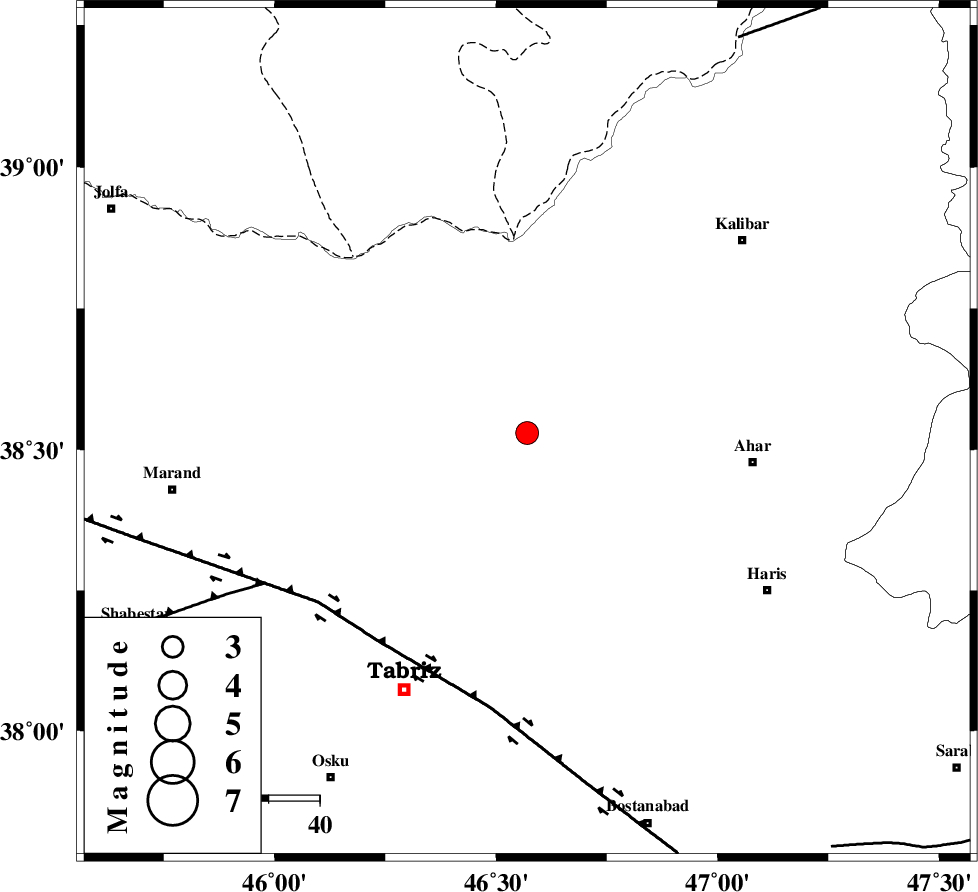

| Location | Lat:38.53 Lon: 46.57 |
| Region | Azarbaijan Sharghi Province, 45 km West of Ahar |
Nearest Cities |
|
| 4 km of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 8 km North of Varzagan, Azarbaijan Sharghi Province | |
| 18 km South East of Joshin, Azarbaijan Sharghi Province | |
| 20 km West of Bekrabad, Azarbaijan Sharghi Province | |
| 22 km West of Tokhmdel, Azarbaijan Sharghi Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 50 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 60 km | |
| DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 88 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >4.7 km |
| Error in Longitude | 1.9 km |
| Error in Depth | 6.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 87137 | IIEES | THKV | E | 32.7 | 0.48 | 2012-11-24 14:05:36 | 2012-11-24 01:26:00 | n |
| 87138 | IIEES | THKV | N | 23.1 | 0.6 | 2012-11-24 14:05:38 | 2012-11-24 01:26:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-11-24 14:03:36 | -0.19 | y | 119 | 75 | |||
| IIEES | GRMI | E | Sg | E | 2012-11-24 14:03:51 | 0.12 | y | 119 | 75 | |||
| IIEES | MAKU | Z | Pn | E | 2012-11-24 14:03:47 | -0.06 | y | 188 | 300 | |||
| IIEES | MAKU | N | Sg | E | 2012-11-24 14:04:10 | 0.07 | y | 188 | 300 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-11-24 14:03:58 | 0.07 | y | 278 | 137 | |||
